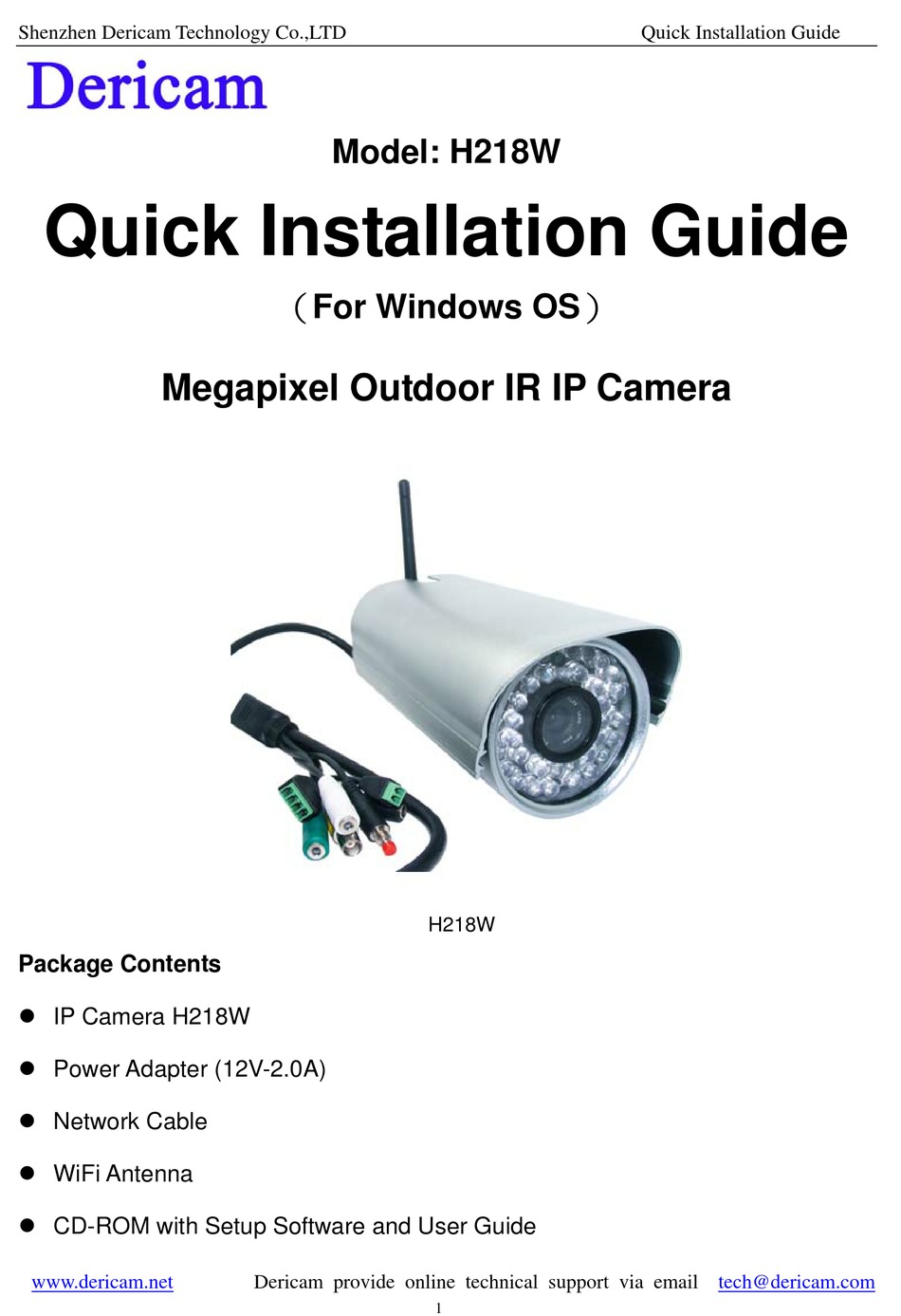

Shenzhen Dericam Technology Co.,LTD
Quick Installation Guide
Model: H218W
Quick Installation Guide
（For Windows OS）
Megapixel Outdoor IR IP Camera
H218W
Package Contents
IP Camera H218W
Power Adapter (12V-2.0A)
Network Cable
WiFi Antenna
CD-ROM with Setup Software and User Guide
www.dericam.net
Dericam provide online technical support via email
tech@dericam.com
1
Advertisement
Table of Contents
Related Manuals for Dericam H218W
Summary of Contents for Dericam H218W
- Page 1 （For Windows OS） Megapixel Outdoor IR IP Camera H218W Package Contents IP Camera H218W Power Adapter (12V-2.0A) Network Cable WiFi Antenna CD-ROM with Setup Software and User Guide www.dericam.net Dericam provide online technical support via email tech@dericam.com...
- Page 2 Quick Installation Guide Quick Installation Diagram Hardware Installation see P.3 Software Installation see P.3 Login the Camera see P.4 P.12 Wireless Connection Setup Remote Access Setup see P.10 Other Settings seeP.14 www.dericam.net Dericam provide online technical support via email tech@dericam.com...
-
Page 3: Start Installation
Goes to the file” IP Camera Tool ”, and copy the software” IP Cam Search_en” to Desktop of your pc, then double click it to open, it pops up a window as below(Fig.2.1). www.dericam.net Dericam provide online technical support via email tech@dericam.com... - Page 4 Click the search button to search cameras hooked to the router, and the camera hooked to the router will be list on the dialogue showed as Fig.3.1. Fig3.1 Search Cameras within LAN www.dericam.net Dericam provide online technical support via email tech@dericam.com...
- Page 5 ③Step 3, Type original default user name & password to login camera Fig3.3 Type user name: admin, password: 123456, and click ok to login the camera it will revert to another page of login window showed as Fig3.4. www.dericam.net Dericam provide online technical support via email tech@dericam.com...
- Page 6 There are two login methods. One is Live Video View Mode which is for standard browsers like IE, Firefox, Google Chrome, the other is Mobile View for Phones. default user name admin the password is 123456. www.dericam.net Dericam provide online technical support via email tech@dericam.com...
- Page 7 & plug the power back in order to let the camera get restarted. After restart by unplug & plug back the power adapter, the camera will make wireless connection by itself. Fig4.2 Wireless LAN Settings www.dericam.net Dericam provide online technical support via email tech@dericam.com...
-
Page 8: Remote Access Settings
80 to another one like 88, or 85 as you like, which will not be conflict with other existing ports like 25, 21. www.dericam.net Dericam provide online technical support via email tech@dericam.com... - Page 9 88, and the LAN IP has changed to the one you assigned. www.dericam.net Dericam provide online technical support via email tech@dericam.com...
-
Page 10: Section A: Remote Access Setup-Static Wan Ip Service
Applications & Gaming->Single Port Forwarding. Secondly, Create a new column by LAN IP address & HTTP Port No. of the camera within the router showed as below. www.dericam.net Dericam provide online technical support via email tech@dericam.com... -
Page 11: Section B: Remote Access Setup-Dynamic Wan Ip Service
‘get a free domain service’, and click Sign up free. Create a hostname, a user name password which are used to DDNS Service Settings within the camera. Please apply the account step by step according to instructions on www.dyndns.com www.dericam.net Dericam provide online technical support via email tech@dericam.com... - Page 12 DynDns.org(dyndns) as a server showed as Fig5.6 Thirdly, fill dericam as DDNS user, fill password dericam2010 as DDNS password, fill dericam.dyndns.org as DDNS domain and server URL, Then click set to make effect. www.dericam.net Dericam provide online technical support via email tech@dericam.com...
- Page 13 Applications & Gaming->Single Port Forwarding. Secondly, Create a new column by LAN IP address & HTTP Port No. of the camera within the router showed as below. Fig5.7 Make port forwarding within the router www.dericam.net Dericam provide online technical support via email tech@dericam.com...
-
Page 14: Other Settings
④Step 4, Use domain name to access the camera via internet After the port forwarding is finished, you can use the domain name+ http no. to access the camera via internet. Take hostname dericam.dyndns.org for example, the accessing link of the camera via internet would be http://dericam.dyndns.org:88...
