CONNECTING THE SEARCH COIL

The search coil transmits electromagnetic signals into the ground and receives
the response.
Coil Cable
Yoke Bolt
Search Coil

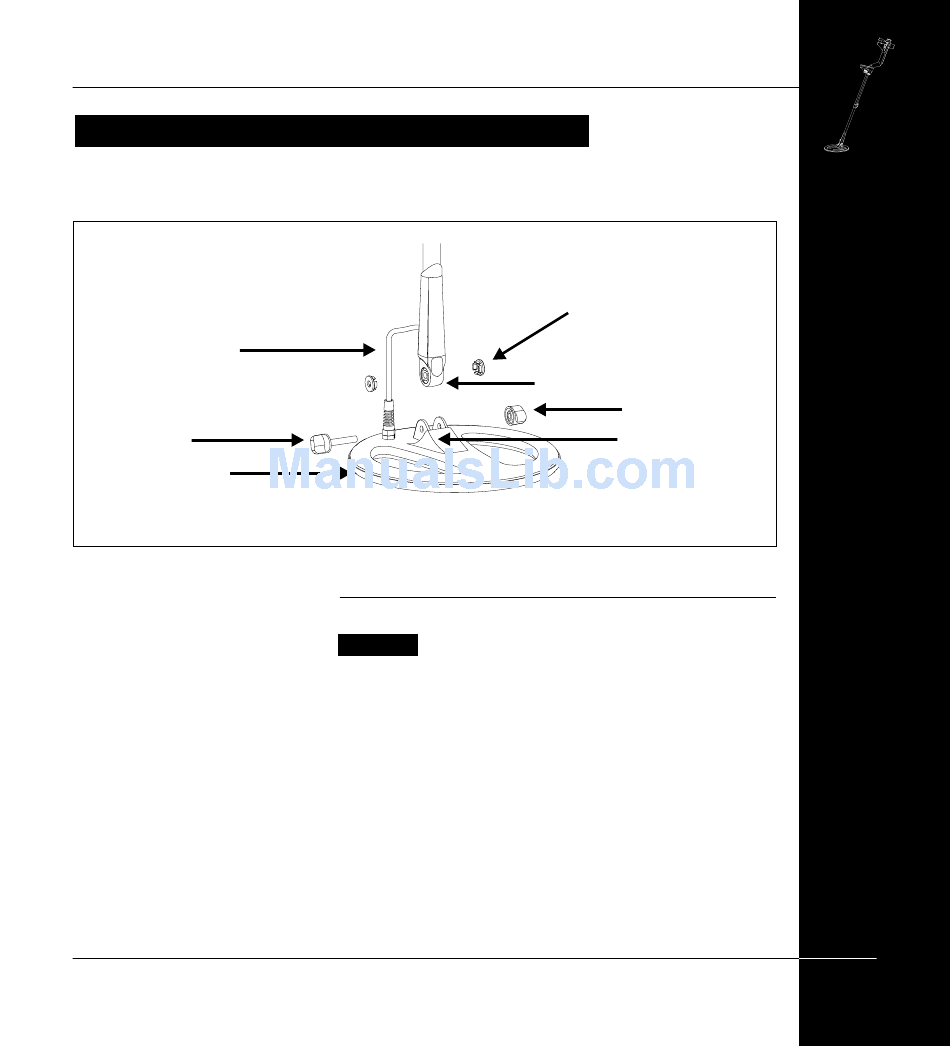

Figure 2.1 Connecting the search coil
to the lower shaft
Connecting the search coil to the lower shaft
Figure 2.1–2.3
CAUTION DO NOT attempt to disconnect the coil cable
where it enters the search coil itself. They are shipped
pre-assembled and any attempt to disconnect will void your
detector warranty.
To attach the search coil to the lower shaft:
Place the search coil on a flat surface close to the coil yoke.
STEP 1
(Figure 2.2, following page) Plug the two black plastic
STEP 2
washers into the recesses provided on either side of the coil
yoke.
THE MINELAB EXPLORER II
Rubber Washer
Coil Yoke
Yoke Nut
Yoke Bracket
P0608-A
(Continued next page)
CONNECTING THE SEARCH COIL
19
