Summary of Contents for CHIEF RPAA1

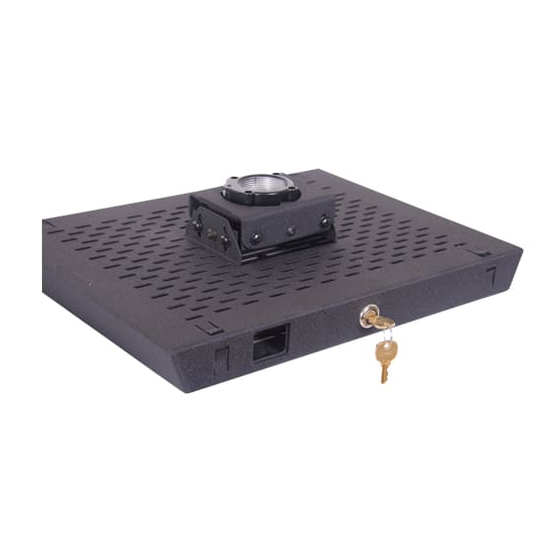

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Locking Projector Mount RPAA1, B1, C1...
-
Page 2: Installation Instructions
The information contained in this document is subject to change without notice or obligation of any kind. Milestone NOTE: RPAA1, RPAB1 and RPAC1 models are included in makes no representation of warranty, expressed or implied, these installation instructions. Throughout these regarding the information contained herein. - Page 3 Installation Instructions RPAA1, B1, C1 DIMENSIONS 27° YAW ADJUST 12.31 312.7 6.11 155.1 1.50" DIA NPT 3.73 4° ROLL 94.8 25° PITCH ADJUST ADJUST 4.02 102.0 DIMENSIONS: INCHES [MILLIMETERS]...
- Page 4 RPAA1, B1, C1 Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon...
-
Page 5: Tools Required For Installation
Installation Instructions RPAA1, B1, C1 TOOLS REQUIRED FOR INSTALLATION 3/32" (included) 5/32" (included) PARTS Q (1) [RPAX1] T (8) S (1) U (4) V (4) 5/32" [spacer] [washer] [adhesive washer] R (4) [security box leg] A (4) G (4) M (4) -
Page 6: Installation
RPAA1, B1, C1 Installation Instructions PREPARATION Locate Mounting Site WARNING: IMPROPER INSTALLATION MAY LEAD TO PROJECTOR MOUNT FALLING CAUSING SEVERE PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installers responsibility to make certain the structure to which the projector mount is being mounted is capable of supporting five times the weight of the projector mount and all attached equipment. - Page 7 Installation Instructions RPAA1, B1, C1 Turn RPAX1 sleeve clockwise or counterclockwise until the Attaching Projector Security Legs front of the RPAX1 is facing target. (See Figure 4) CAUTION: Using screws of improper length may damage your projector! Proper screws will have adequate thread...
- Page 8 RPAA1, B1, C1 Installation Instructions Attaching Projector to Security Mount Drawer Align projector and security mount drawer so that the projector is oriented correctly. Remove the paper backing from the adhesive washers (V) and attach projector to drawer using adhesive washers (V) and thumb nuts (P) over the security legs (R).
- Page 9 Installation Instructions RPAA1, B1, C1 Loosen yaw adjustment screw. (See Figure 12) Adjust mount to desired yaw. (See Figure 12) Tighten yaw adjustment screw. (See Figure 12) Figure 12...
- Page 10 RPAA1, B1, C1 Installation Instructions...
- Page 11 Installation Instructions RPAA1, B1, C1...
- Page 12 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 1 on 12/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
