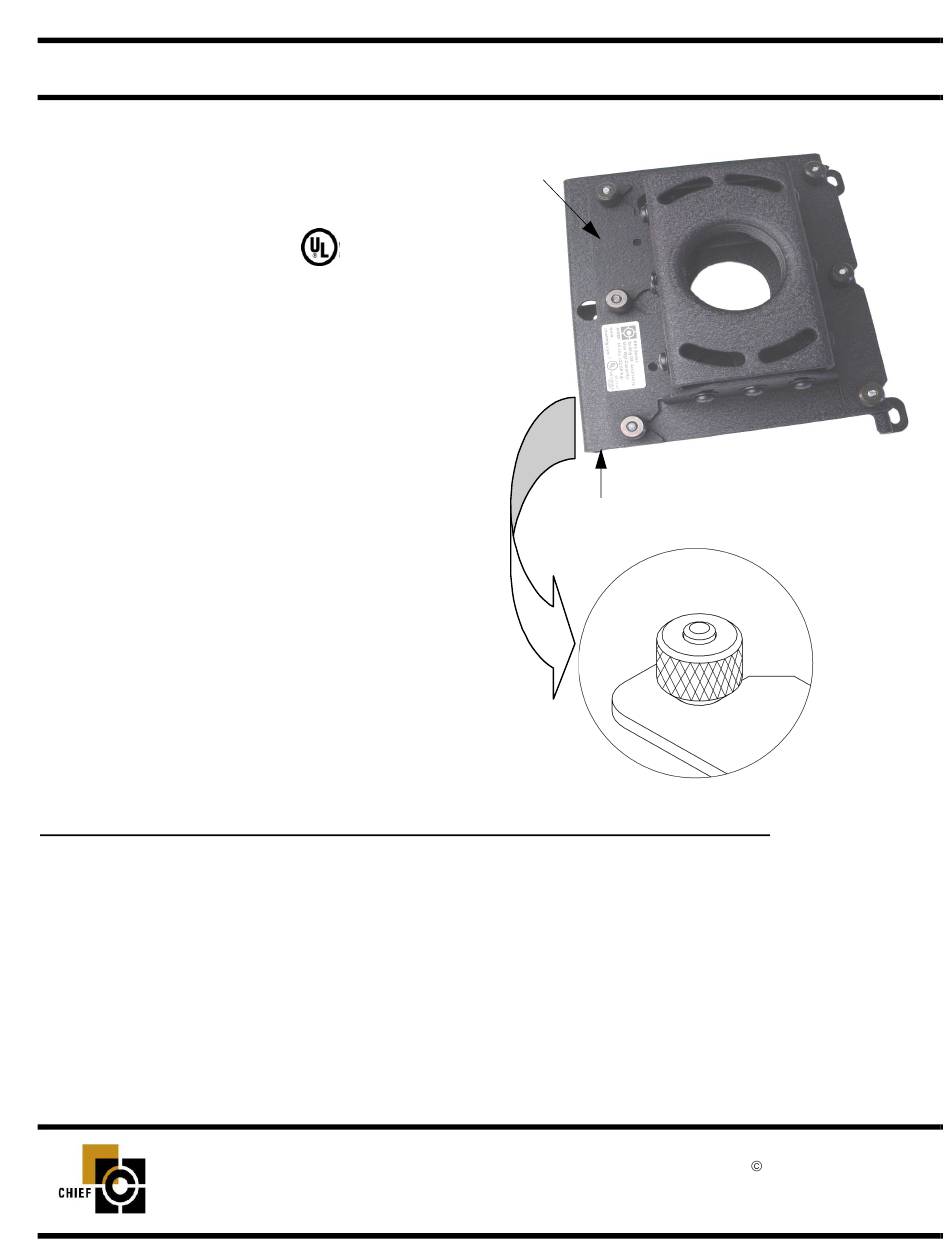

I N S T R U C T I O N
RPA Series
LCD/DLP
Ceiling Mount

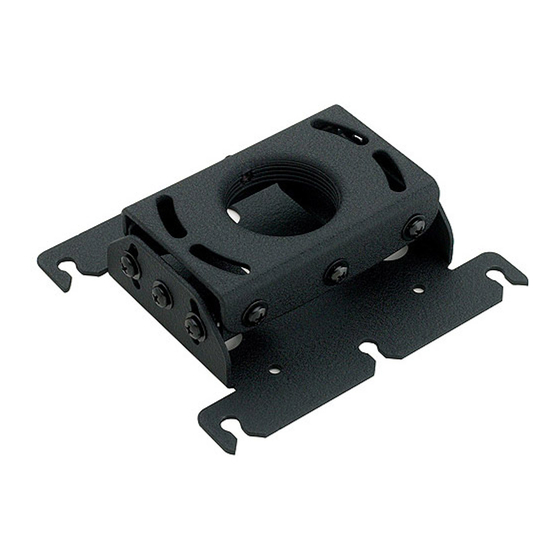

The Chief RPA Series ceiling mounts provide a unique, sim-
plified method of ceiling mounting inverted LCD/DLP pro-
jectors. Chief's low profile design offers three easy
mounting methods (1 1/2"NPT, flush or threaded rod); roll,
pitch and yaw adjustment; a cable management system;
and custom designed brackets that allow quick projector
disconnect without loss of registration.
All Chief RPA Series ceiling mounts provide access for
quick lamp changes and easy filter cleaning without requir-
ing any disassembly. The mount is constructed of heavy
gauge steel and designed to ensure proper projector venti-
lation.
Fast and precise image registration is achieved through the
easy roll, pitch and yaw adjustments built into the RPA
mounts. Optional projector security is included by using the
All-Points™ Security kit
All-Points™ Security Option Included
BEFORE YOU BEGIN
• You must have an SLB (bracket designed for your application) to attach the RPA to your projector.
• The maximum weight to be installed on the RPA ceiling mount is 50 pounds (22.68 Kg).
• CAUTION: To prevent damage to the RPA, which could affect or void the Factory warranty, thoroughly
study all instructions and illustrations before you begin to install the RPA. Pay particular attention to the
"Important Precautions" on Page 1.
• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
.
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
12800 HIGHWAY 13 SOUTH, SUITE 500
SAVAGE, MINNESOTA 55378 USA
M A N U A L
RPA
SLB
Typical Shown
Chief's Exclusive
quick-disconnect thumbnut
PART NO. 8811-000001 (Rev. E)
2000 Chief Manufacturing
www.chiefmfg.com
Printed in USA 09-03
