4 Replacement Procedures
2. Release the latches and remove the hinge caps.
3. Remove the following screw and D SUB cover.
 M23B
4. Remove the following screws securing the cover assembly and LCD assembly.
 M2.53C
M2x3B S-THIN HEAD
Hinge cap L

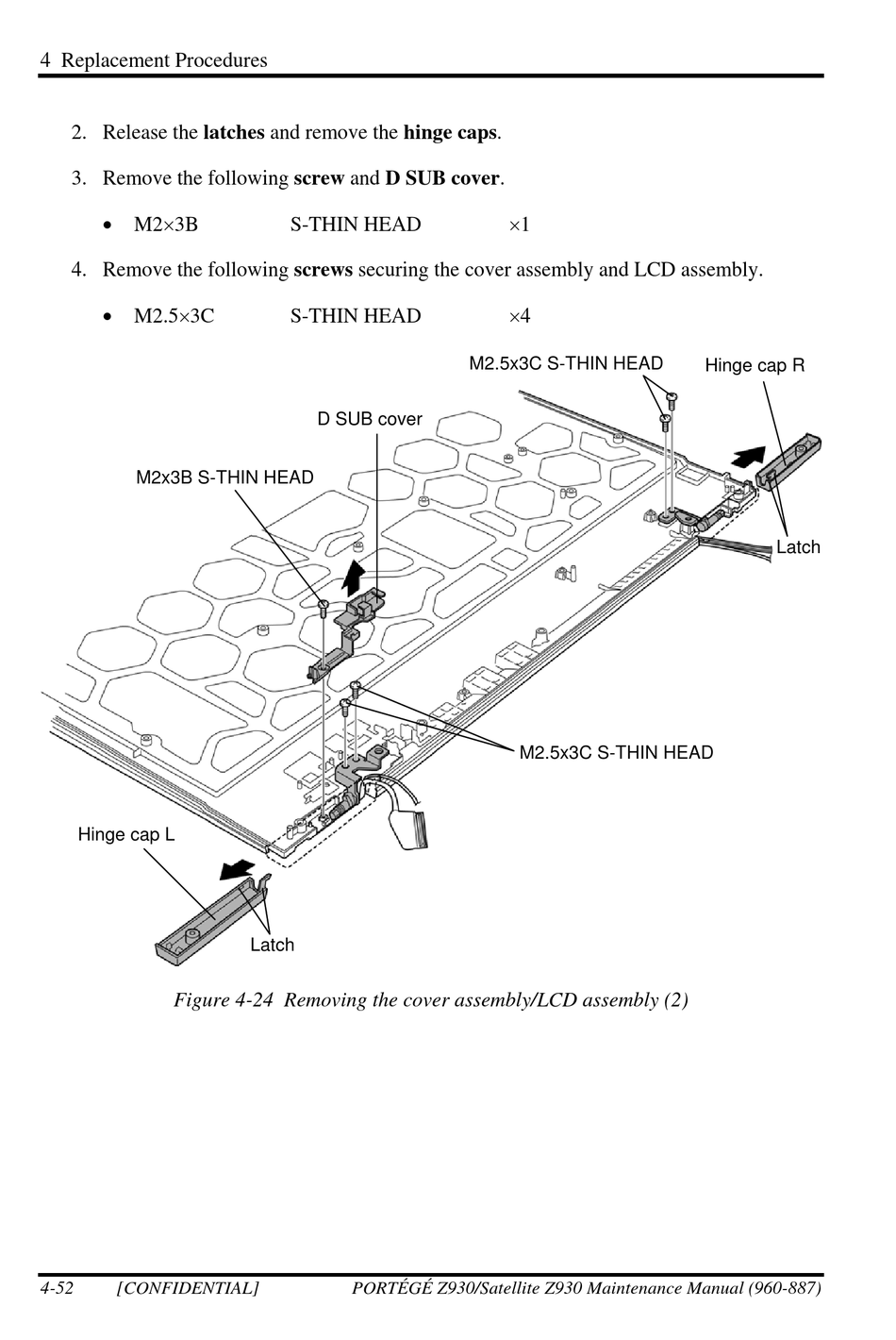

Figure 4-24 Removing the cover assembly/LCD assembly (2)
4-52 [CONFIDENTIAL]
S-THIN HEAD
S-THIN HEAD
D SUB cover
Latch
