Installing the System board/Wireless LAN card

To install the system board/wireless LAN card, follow the steps below and refer to Figure 4-
15 to 4-16.
1. Connect the wireless LAN card to the connector CN2600 on the system board.
2. Set the system board in place.

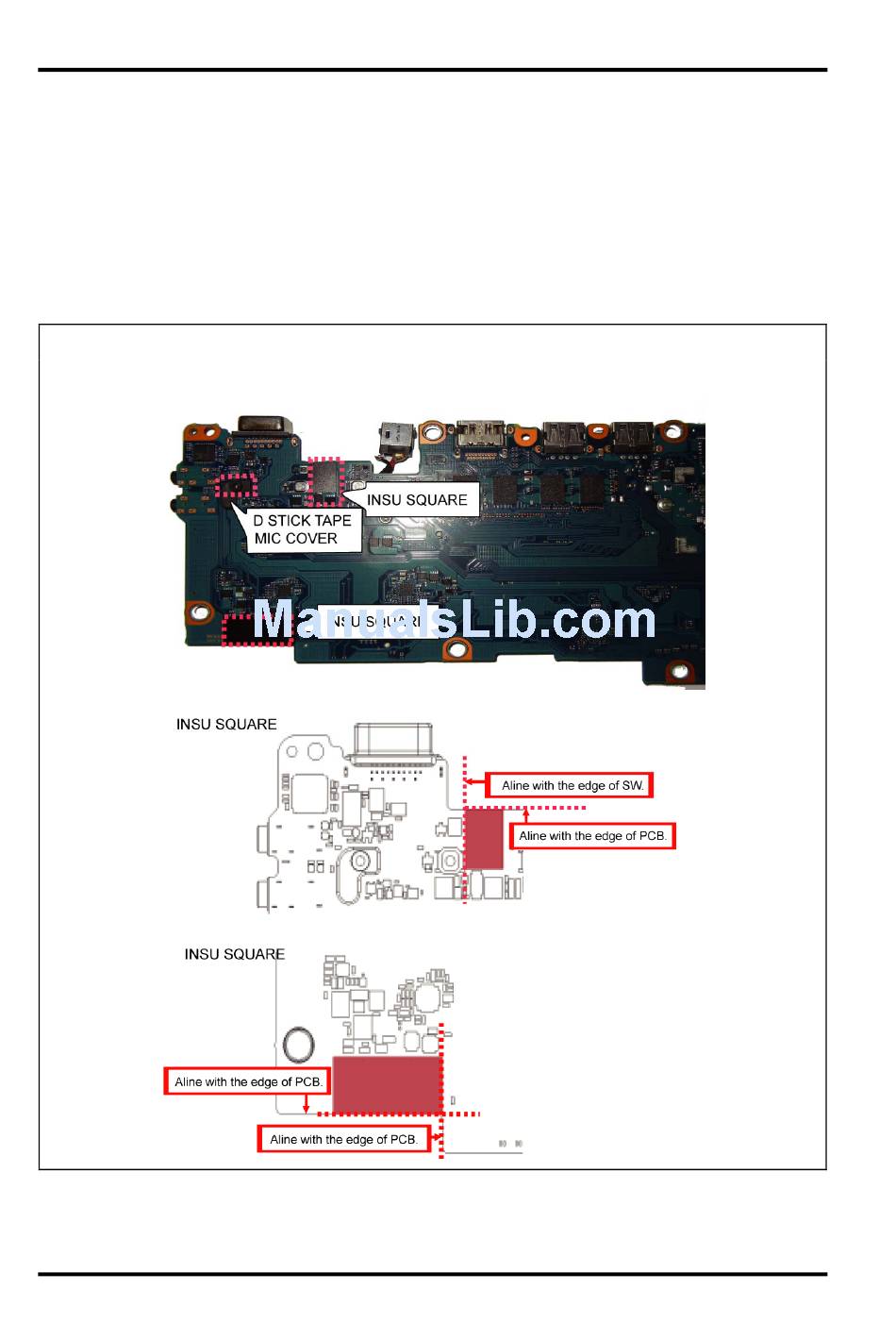

NOTE: When replacing the system board with a new one, stick the INSU SQUARE, D
STICK TAPE, MIC CVER and SQUARE GUM in place.
