InFocus Projector Setup Manual page 3

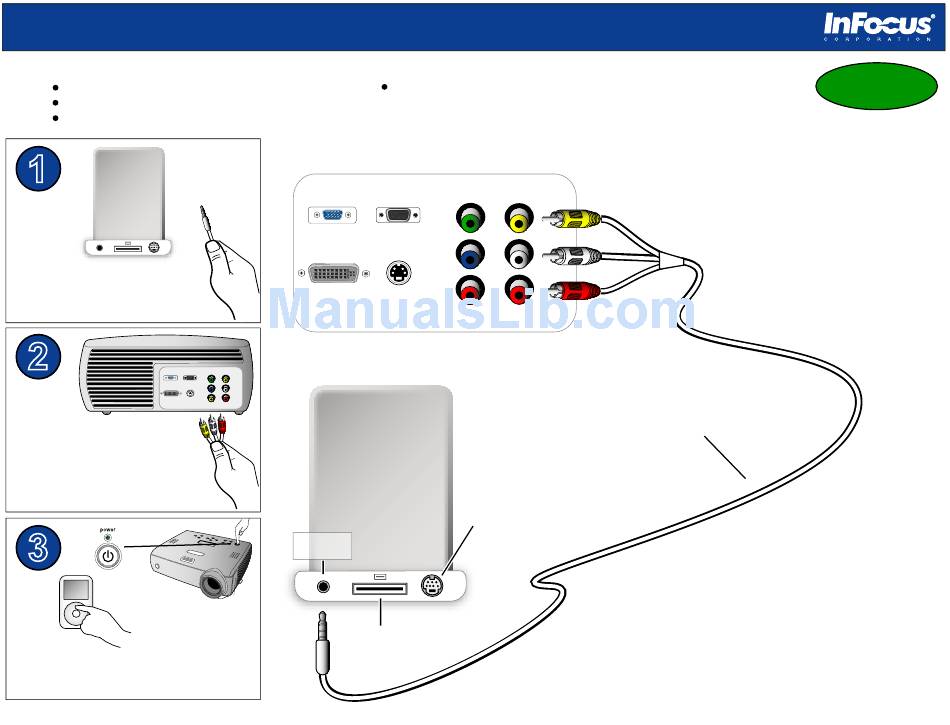

Connect an Apple iPod to an InFocus projector with composite (RCA) cables with iPod Dock
Setup Requirements
Apple iPod Photo or iPod Color (excluding iPod mini)
Apple iPod Dock
InFocus projector with a composite video port
1
LINE OUT S-VIDEO
OUT
Plug the iPod AV cable into
the Line Out port on the Apple
iPod Dock.
2
VGA
M1-DA
Connect the other end of the
cables to the composite audio
and video ports on your projector.
3
Power on the projector, then the
Apple iPod. You are ready to view your
favorite photos!
Copyright © 1999-2005 InFocus Corporation. All Rights Reserved.
Projector Connector Panel
connector panel may vary from actual product
VGA
M1-DA
Apple iPod Connector Panel
connector panel may vary from actual product
Component Composite
Y
RS-232
Pb
Pr
S-video
Line out
port
LINE OUT
Dock connector port
for USB and FireWire
Apple iPod AV cable (mini-jack to yellow, red, white male RCA)
Composite
Component
Y
RS-232
Pb
Pr
S-video
S-video port
S-VIDEO
OUT
iPod AV cable*
(Apple accessory)
*
We recommend connecting your iPod to an external
sound system to provide the best audio experience.
