InFocus Projector Setup Manual page 2

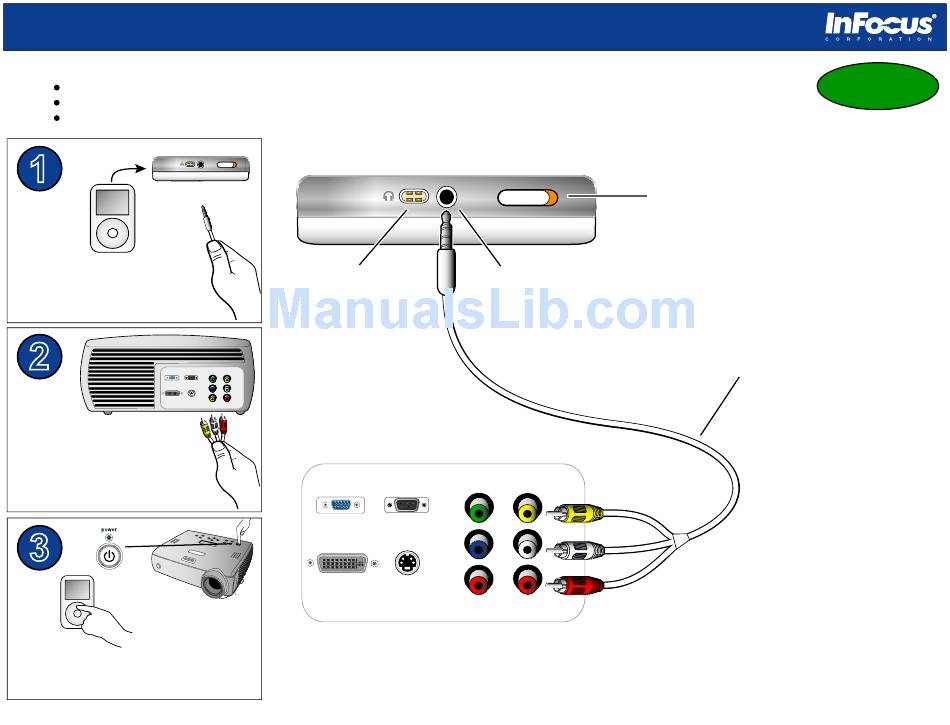

Connect an Apple iPod to an InFocus projector with composite (RCA) cables
Setup Requirements
Apple iPod Photo or iPod Color (excluding iPod mini)
InFocus projector with a composite video port
Apple iPod AV cable (mini-jack to yellow, red, white male RCA)
1
Plug the iPod AV cable into
the AV port on the Apple iPod.
2
VGA
M1-DA
Connect the other end of the
cables to the composite audio
and video ports on your projector.
3
Power on the projector, then the
Apple iPod. You are ready to view your
favorite photos!
Copyright © 1999-2005 InFocus Corporation. All Rights Reserved.
Apple iPod Connector Panel
connector panel may vary from actual product
HOLD
Remote port
Composite
Component
Y
RS-232
Pb
Pr
S-video
Projector Connector Panel
connector panel may vary from actual product
VGA
M1-DA
HOLD
Headphone and AV port
Composite
Component
Y
RS-232
Pb
Pr
S-video
To enable/disable front iPod controls
iPod AV cable*
(Apple accessory)
*
We recommend connecting your iPod to an external
sound system to provide the best audio experience.
Good
