Summary of Contents for Clearaudio Talismann V2 Gold

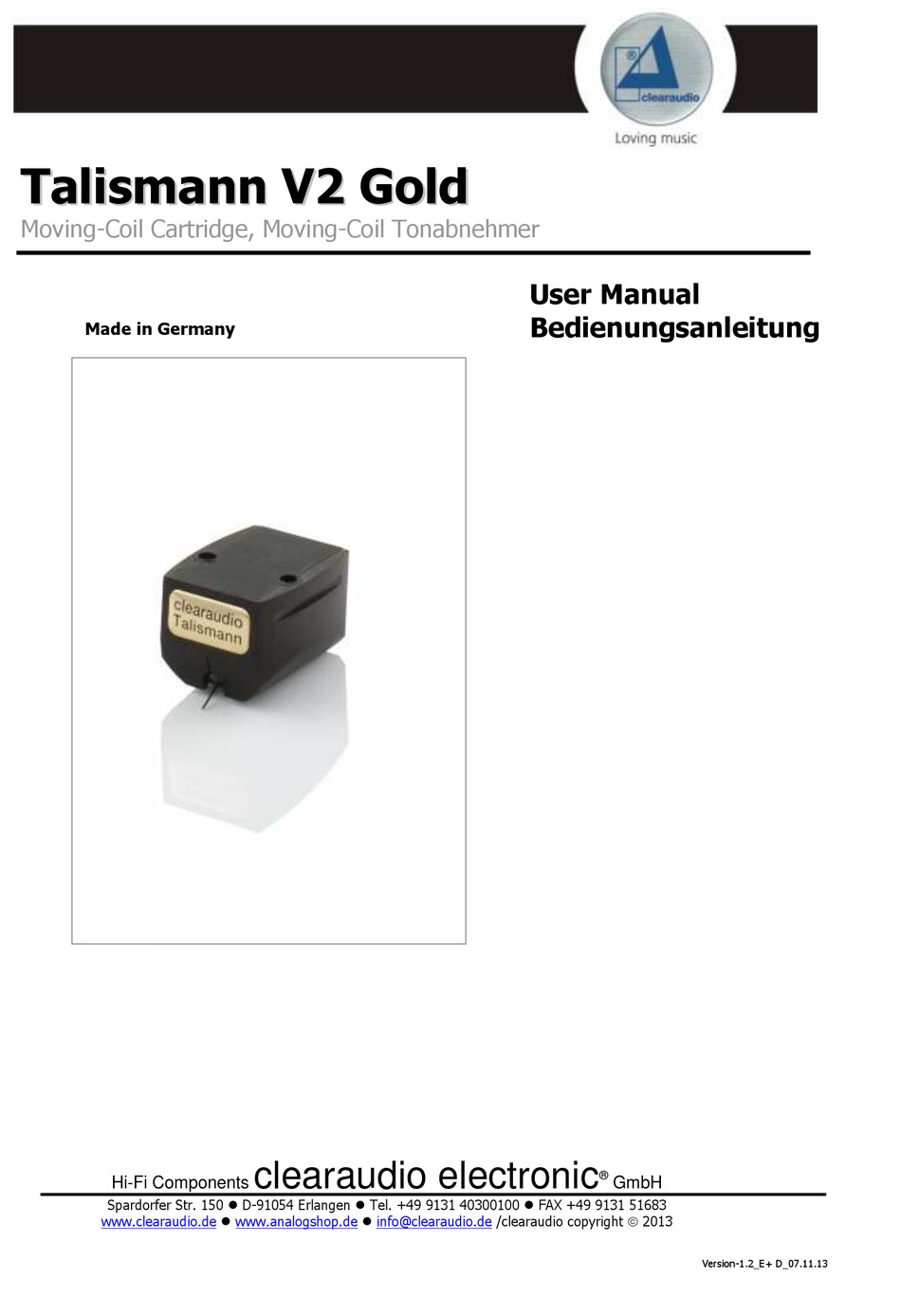

  • Page 1 Moving-Coil Cartridge, Moving-Coil Tonabnehmer User Manual Bedienungsanleitung Made in Germany clearaudio electronic ® Hi-Fi Components GmbH Spardorfer Str. 150  D-91054 Erlangen  Tel. +49 9131 40300100  FAX +49 9131 51683 www.clearaudio.de www.analogshop.de info@clearaudio.de /clearaudio copyright  2013   Version-1.2_E+ D_07.11.13...
  • Page 2: User Manual

    These operating instructions provide valuable advice for the correct installation of your new Clearaudio pick-up cartridge. For the fine adjustment however they can only be taken as approximate values and give only a nearly indication since optimum adjustment will depend to a large extent on the quality of your record player or tonearm and the data given in the operating instructions of them.
  • Page 3: Table Of Contents

    8 - 13 Table of content 1. Mounting procedure 2. Adjusting the Tracking Force 3. Further adjustments 4. Maintenance and important notes 5. Service and Warranty 6. Accessories 7. Technical data Warranty information Page / Seite 3  clearaudio electronic GmbH 2013...
  • Page 4: Adjusting The Tracking Force

    The output of the cartridge is about 0.7 mV (most high end phono preamplifiers can handle this output level). You may also use a MC head amplifier. All Clearaudio phonostages are always an ideal partner. We achieved the best results with a loading of 400 Ohms.
  • Page 5: Maintenance And Important Notes

    Clearaudio cleaning fluid (Art.No. AC003). Be extremely careful and always brush only from the back to front! - When using a liquid such as the Clearaudio cleaner or other organic cleaner, always take care not to spill any on the cartridge body.
  • Page 6: Service And Warranty

    Enjoy the music! 5. Service and Warranty * If any service or repair on all Clearaudio products is necessary, please contact your dealer / distributor or contact Clearaudio directly. We can inform you as well about your nearest service location.
  • Page 7: Accessories

    Warranty: 2 years* *Provided the warranty registration card is correctly filled out by the owner and sent back to Clearaudio within the stated time. Clearaudio electronic is not responsible for typographical errors in descriptions. Technical specifications subject to change or improvement without prior notice. Availability as long as stock lasts.
  • Page 8: Bedienungsanleitung

    Jeder Tonabnehmer ist ein handselektiertes Juwel, entwickelt und konstruiert, um Ihrer HiFi- Anlage die entscheidende Klangverbesserung an der analogen Quelle zu verleihen. Der Talismann V2 Gold stellt den Einstieg in die neueste „V2“ – Generation der clearaudio MC-Tonabnehmer unterhalb der 1.000 € Klasse dar.
  • Page 9 1. Montage und Justage des Moving Coil Tonabnehmers 2. Einstellen der Auflagekraft 3. Besondere Hinweise zur Montage / Justage 4. Überprüfen und Einstellen 5. Pflege , Service und Garantie 6. Zubehör im Lieferumfang 7. Technische Daten Garantiehinweise Page / Seite 9  clearaudio electronic GmbH 2013...
  • Page 10: Montage Und Justage Des Moving Coil Tonabnehmers

    Bild 1: Farben der Tonarmverkabelung 1.3 Montieren Sie mit Hilfe der beiliegenden Schrauben (M2,5 x 6) Ihren clearaudio Tonabnehmer in den Tonarm. Die Aufnahmegewinde im Tonabnehmergehäuse entsprechen der metrischen Norm für M 2,5 mm Schrauben und haben den international genormten Abstand von 12,7 mm.
  • Page 11: Besondere Hinweise Zur Montage / Justage

    Goldbuchsen nicht verkantet werden. Verwenden Sie eine geeignete Präzisionszange oder Pinzette. 4.) Um die Klangqualität der clearaudio Moving Coil Systeme zu erreichen, war es unter anderem erforderlich, extrem leichte bewegte Spulen aus feinem Draht mit nur 20 µm Durchmesser zu fertigen. Diese extrem dünnen Drähtchen enden am inneren Ende der vier goldenen Kontaktstifte.
  • Page 12: Überprüfen Und Einstellen

    3. Die Auflagekraft stellen Sie bitte gemäß dem mitgelieferten Original-Messprotokoll und dem darin angegebenen optimalen Auflagegewicht ein. Eine Kontrolle der Einstellung erreichen Sie mit Hilfe einer Testschallplatte (Abtastfähigkeit), die im Fachhandel erhältlich ist und in die Ausstattung eines ernsthaften Musikliebhabers gehört. (z.B. von clearaudio Art.Nr. LPT43039) 4. Einstellen der Antiskatingkraft: Viele Tonarme besitzen eine Vorrichtung zur Kompensation der Skatingkraft.
  • Page 13: Zubehör Im Lieferumfang

    Garantie: 2 Jahre* * bitte Garantiekarte ausfüllen innerhalb von 14 Tagen an Clearaudio zurück senden Änderungen bleiben vorbehalten. Lieferbar solange Vorrat reicht. Für Druckfehler keine Haftung. Irrtümer vorbehalten- Kopien und Abdrucke – auch nur auszugsweise – bedürfen der schriftlichen Genehmigung durch die clearaudio electronic GmbH.
  • Page 14: Warranty Information

    RETAIN YOUR PURCHASE RECEIPT Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with Clearaudio. IMPORTANT When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.
