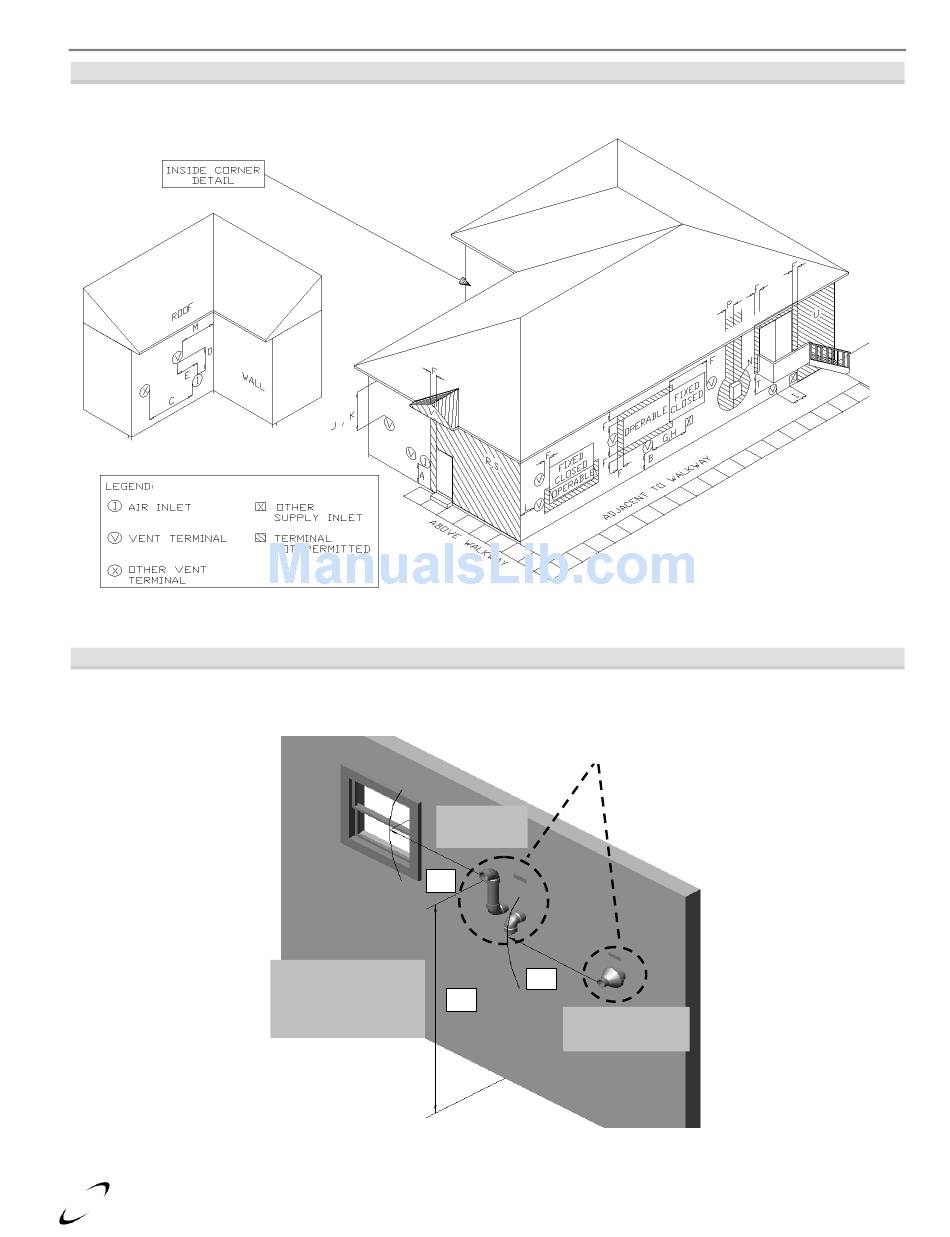

Illustrations of Termination Clearances
G – Letter represents a specific Termination Position. Refer to Table 4-1 for corresponding termination clearances.
16
Figure 4-1
Termination Clearances Quick Reference Diagram
Figure 4-2
Side Wall Termination - Clearances Above Grade
Two-Pipe
Termination
F
Clearance "Q"
Adjacent to Public
Q
Walkway or Driveway
Minimum 7ft [2.13 m]
Clearances "F" and "G"
Canada – Minimum 3 ft [915 mm]
The US – Minimum 1 ft [305 mm]
G
Concentric Vent
Termination
Ti Series
