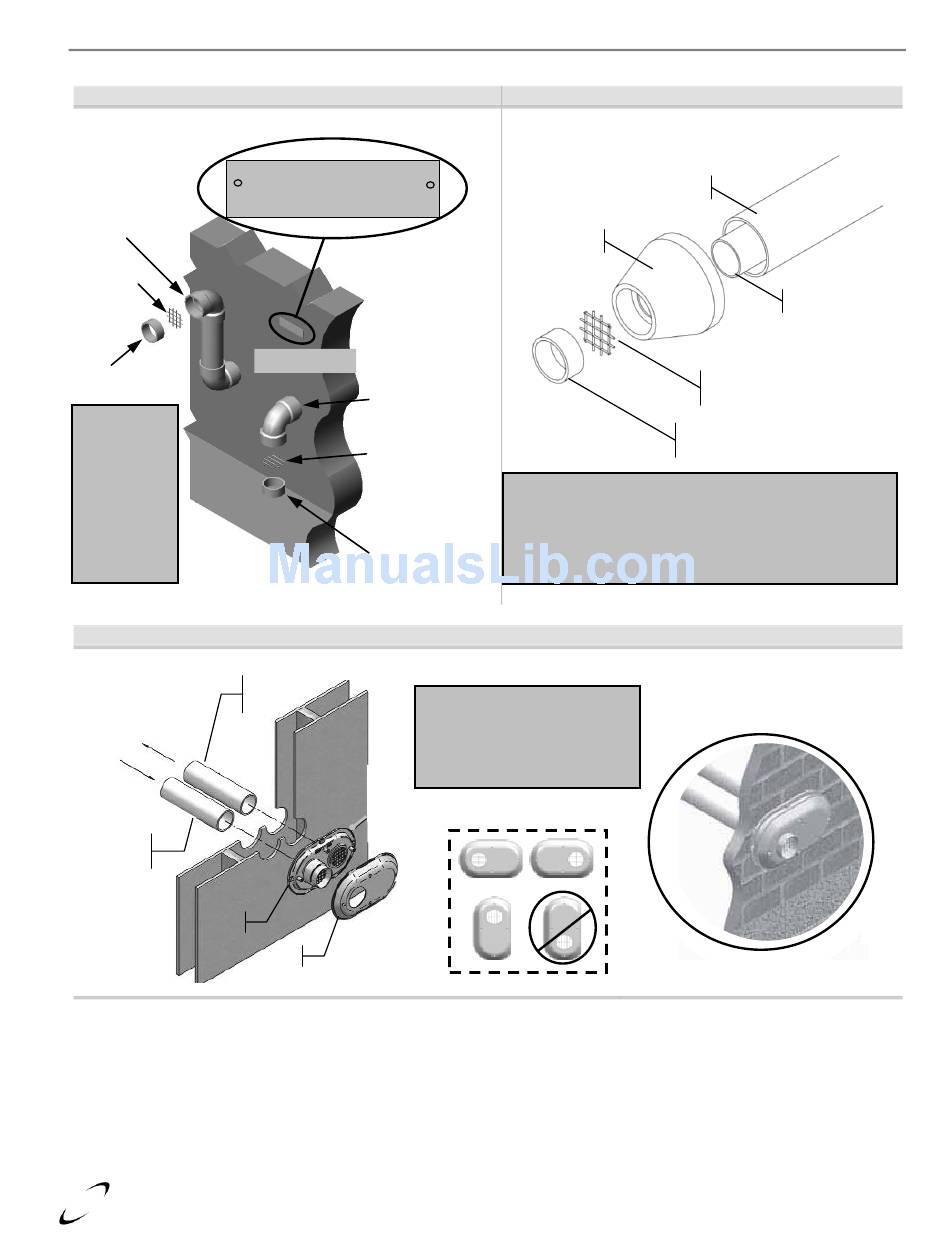

Labeling and Identification – Two Pipe Side Wall
Figure 3-6
Two-Pipe Side Wall Termination
Keep Free of Obstructions
Exhaust
Vent
Vent
Screen
Venting
Vent Screen
Insert vent
screen into
socket joint of
termination
elbow. Secure
by cementing
a short piece
of venting into
the socket.
Labeling and Identification – Low Profile Termination Kit
Air-Inlet
Piping
Exhaust
Venting
Base
12
Gas Vent Directly Below
Warning Plate
Combustion
Air-Inlet
Vent
Screen
Venting
Low Profile Termination Kit
Low Profile Termination Kit
The vent /air-inlet pipes are field
supplied. Vent screens are build
in. Major components provided in
Low Profile Kit include: base, cap,
s.s. screws, and plastic anchors.
Cap
Labeling and Identification – Optional Kit
Concentric Vent Termination Kit
Air Inlet Pipe
End Cap
Concentric Vent Termination Kit
Insert Vent Screen into the End Cap from the outside,
followed by a short piece of vent pipe to retain the Vent
Screen in place. The End Cap must be secured to the
Exhaust Vent via cement or stainless steel screws. Refer to
Figure 4-12 for more details.
Figure 3-8
Approved Orientation
Figure 3-7
Exhaust Vent
Vent Screen
(Included w. boiler)
Retaining Exhaust
Pipe Piece
Fully Assembled
and Installed
