LIONEL GP9B STANDARD & DELUXE
Installing your GP9B's Upgrade Kit (standard or deluxe)
Y
our GP9B is factory-equipped with mag-
netic couplers and non-directional lighting.
This upgrade kit will give your GP9B direc-
tional lighting and Electrocouplers™ that
operate in the TrainMaster Command envi-
ronment.
You may wish to have your local authorized
Lionel Service Center install your GP9B's
Body mounting
screw
Front truck
Looking at your GP9B's frame with the shell
removed you will see two groups of wires, one
group contains all red wires, the other black
and white wires. The red wires are the power
or hot wires, the other group is the ground
wires. Gently move both bundles out of the
way for now, we will come back to them soon.
Towards the middle of the frame there are
three screws, one by the front and two located
towards the rear of the frame. These screws
secure the fuel tank to the frame, remove these
screws and place them aside. In your kit locate
the LCRX switch assembly, (switch, four wires
and a black plug) insert the switch facing down
with wires up and use small screws provided
The LCRX circuit board is a sophisticated electronic device and is
Note!
extremely sensitive to static electricity. Please avoid all physical
contact with the components on the LCRX.
Instruction sheet for Upgrade kits 6-2961, 6-2962, & 6-2979
Body mounting screw
upgrade kit for you, or you may do so
yourself by carefully following these
instructions.

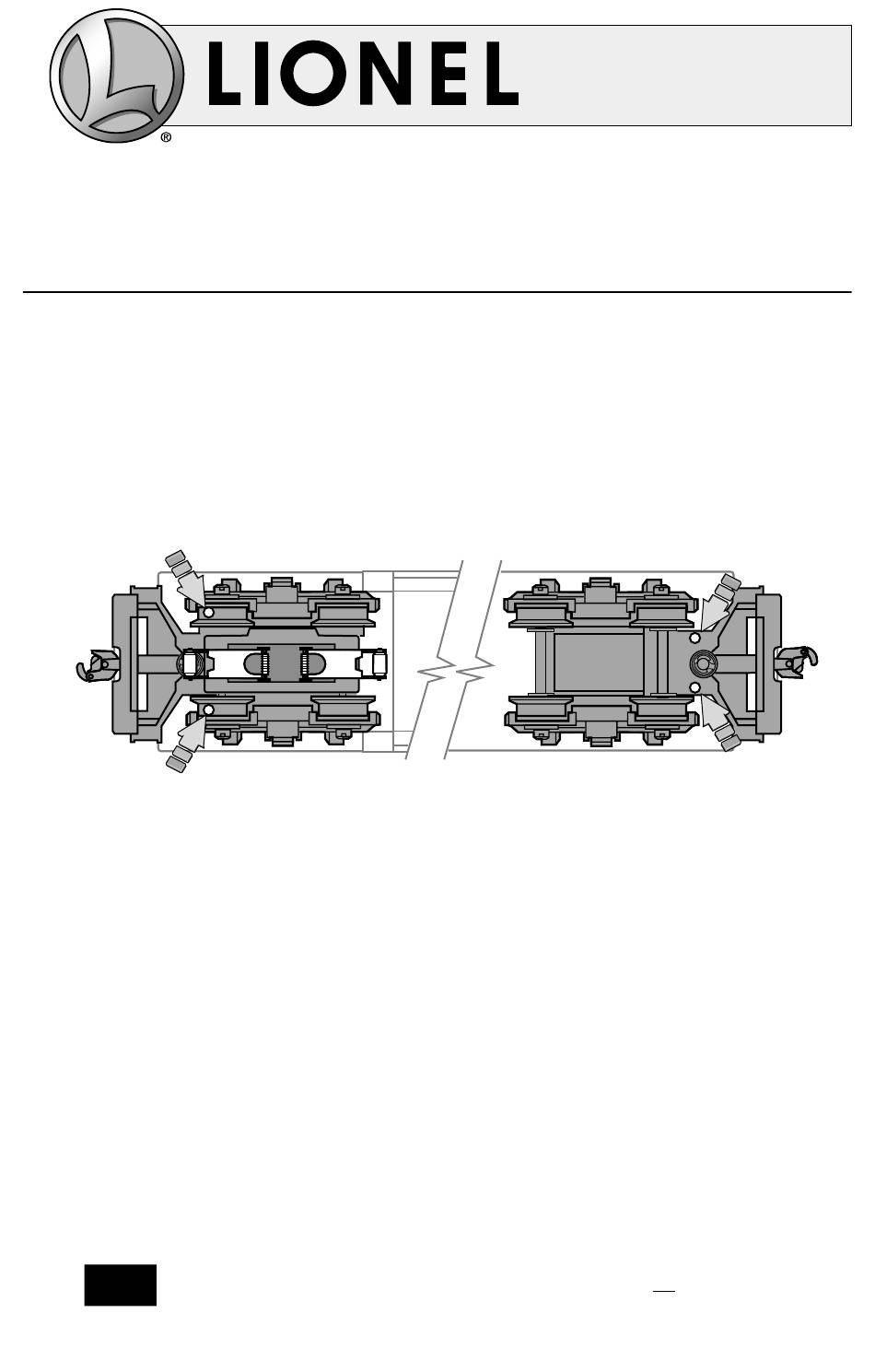

Remove the GP9B's body shell by removing
the four screws, (see below) lay the frame and
shell on it's side on a soft protective surface.
Note: The front of your GP9B unit is the short
hood/porthole end.
to secure it in place on the fuel tank. NOTE the
open solder pin (no wire soldered to it) must be
towards the front of your GP9B. After installing
the switch run the wires through the slot in the
frame behind the two fuel tank screws. Now
reinstall the fuel tank and switch assembly,
using the two rear screws only. (See exploded
view on the next page)
Locate the LCRX platform in your upgrade
kit and place it on the frame with the tabs on
the bottom facing the back. There are two short
bosses on the top of the platform, one is very
close to the edge and should face towards the
front. Next locate the LCRX board and remove
it from it's static guard protection.
71-2961-250
3/98
Body mounting screw
Body mounting screw
Rear truck
