PARTS & SERVICE MANUAL
FOR THE 32" MULTIFIRE™
FIREPLACE
MODEL NUMBER:
DF3215

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTIFIRE DF3215 and is the answer not in the manual?

Questions and answers

Related Manuals for Dimplex MULTIFIRE DF3215

Summary of Contents for Dimplex MULTIFIRE DF3215

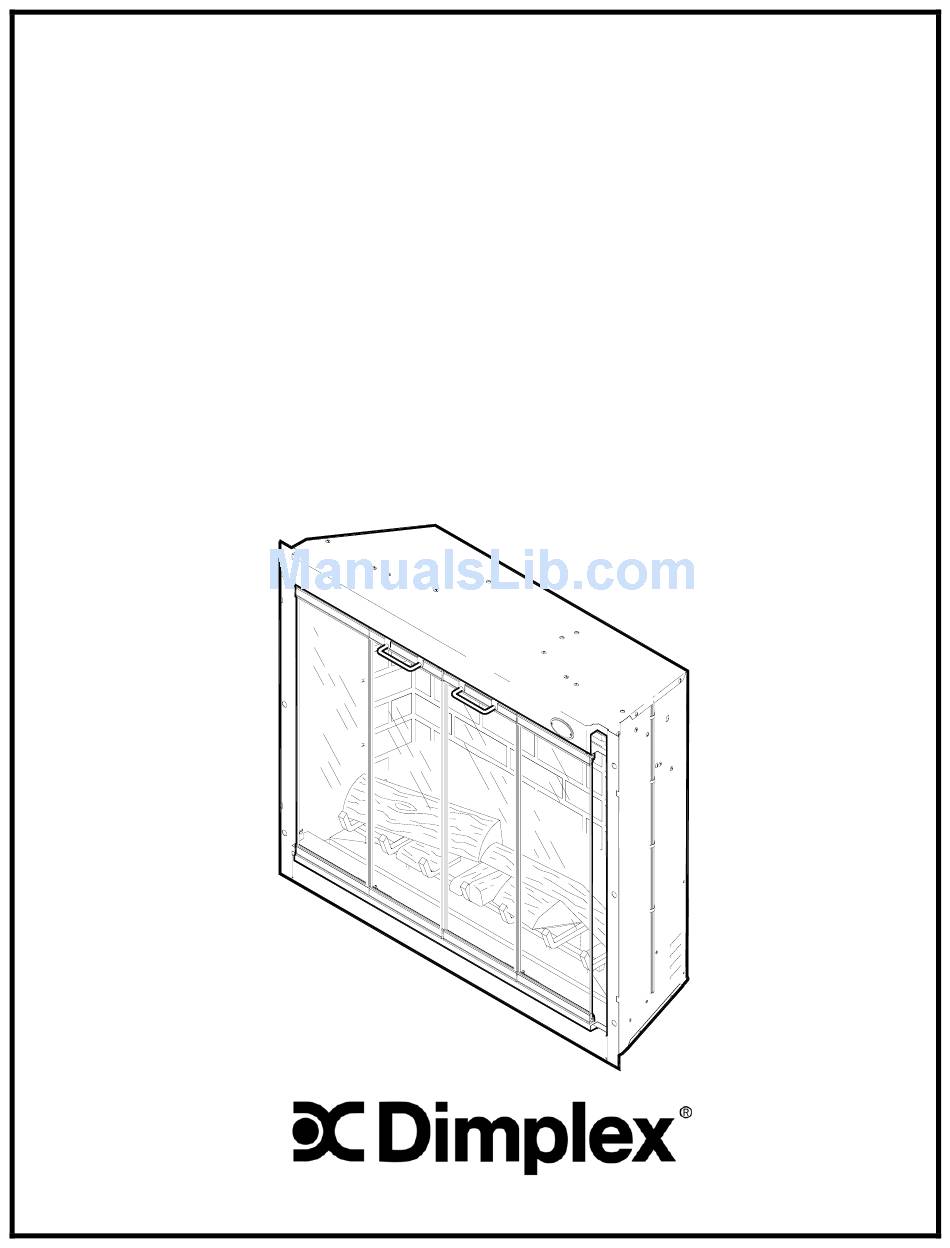

  • Page 1 PARTS & SERVICE MANUAL FOR THE 32” MULTIFIRE™ FIREPLACE MODEL NUMBER: DF3215...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS OPERATION PAGE 1 PARTS DRAWING PAGE 5 PARTS LIST PAGE 6 WIRING DIAGRAM PAGE 7 LIGHT BULB REPLACEMENT PAGE 8 FILTER REPLACEMENT PAGE 10 REMOTE CONTROL SWITCH BOARD REPLACEMENT PAGE 11 REMOTE CONTROL RECEIVER REPLACEMENT PAGE 12 FLAME MOTOR/FLAME ROD REPLACEMENT PAGE 13 MAIN ON/OFF SWITCH REPLACEMENT...

  • Page 3: Operation

    The temperature cutoff switch can be reset by unplugging the unit, waiting 5 minutes and plugging the unit back in. CAUTION If you need to continuously reset the heater, unplug the unit and call Dimplex North America Limited at 1-800-668-6663 and press 4 for technical support.

  • Page 4: Remote Control

    DF3215 REMOTE CONTROL The remote control has a range of approximately 50 ft. (15.25m), it does not have to be pointed at the fireplace and can pass through most obstacles (including walls). It is supplied with 243 independent frequencies to prevent interference with other units.
  • Page 5 DF3215 FREQUENCY INTERFERENCE If the fireplace does not respond properly to the remote control, the remote operating frequency may have to be reset. The remote control can send another frequency code to the circuit board to eliminate interference. 1. Press the ENTER button on the remote control, the middle display flashes.
  • Page 6 DF3215 REMOTE CONTROL FUNCTIONS Time of day Room temperature Set temperature Battery Indicator Day of week Remote display Up direction button Enter button Left direction button Right direction Flame/Heat ON/OFF button button Down direction Batteries button Purifire™ ON/OFF button Sleep timer...

  • Page 7: Parts Drawing

    DF3215...

  • Page 8: Parts List

    DF3215 REPLACEMENT PARTS FIREBOX, 32" - DIMPLEX - MULTIFIRE – CATALOGUE NO. DF3215 PART NO. 6902520159 MOD LEVEL: NONE MADE IN: CHINA REPLACEMENT PART REPLACEMENT PART NO. 1. 30” URETHANE LOG SET ASSEMBLY 0439070100RP 2. HEATER ASSEMBLY 2200490500RP 3. UPPER & LOWER LIGHT ASSEMBLY 2500200200RP 4.

  • Page 9: Wiring Diagram

    DF3215 WIRING DIAGRAM...

  • Page 10: Light Bulb Replacement

    DF3215 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.
  • Page 11 DF3215 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.

  • Page 12: Filter Replacement

    DF3215 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.

  • Page 13: Remote Control Switch Board Replacement

    DF3215 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.

  • Page 14: Remote Control Receiver Replacement

    DF3215 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.

  • Page 15: Flame Motor/Flame Rod Replacement

    DF3215 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.
  • Page 16 DF3215 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.

  • Page 17: Main On/Off Switch Replacement

    DF3215 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.

  • Page 18: Heater Assembly Replacement

    DF3215 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.

  • Page 19: Power Cord Replacement

    DF3215 If unit was operating prior to servicing allow at least 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin. Disconnect power before attempting any maintenance or cleaning to reduce the risk of electric shock or damage to persons.
