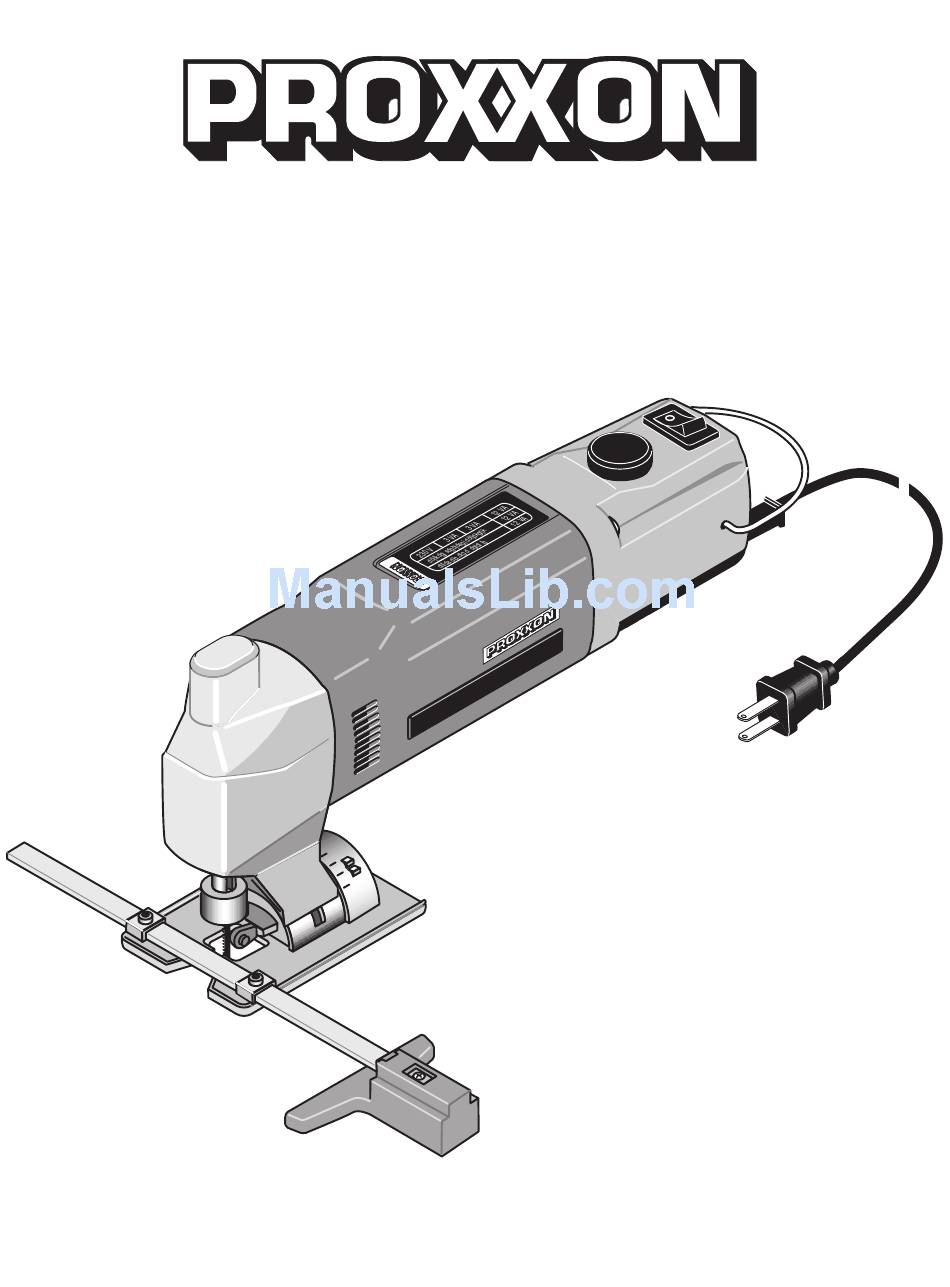

- Page 1 SS 115/E Manual...
- Page 2 Notes - 2 -...
- Page 3 Fig. 2 Fig. 1 Fig. 4 Fig. 3 Fig. 5 Fig. 6 - 3 -...
-
Page 4: General Safety Instructions
PROXXON SS 115/E Foreword Dear Customer, The PROXXON Super SS 115/E Jig Saw is an easy touse but nonetheless high-per- formance device, which produces excellent cutting results. This instruction manual covers: • Safety regulations • Operation and maintenance • Spare parts list. -
Page 5: Work Area
Work Area Keep your work area clean and well lit. Cluttered benches and dark areas invite acci- dents. Do not operate power tools in explosive atmospheres, such as in the pres- ence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes. - Page 6 with your finger on the switch or plugging in tools that have the switch on invites accidents. Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury. Do not overreach.
-
Page 7: Specific Safety Rules
SPECIFIC SAFETY RULES DO NOT let familiarity or comfort with product (gained from repeated use) replace strict adherence to jig saw safety rules. Please note: If you use this tool unsafely or incorrectly, you can suffer serious personal injury. 1. Hold tool by insulated gripping surfaces when performing an operation where the cutting tools may contact hidden wiring or its own cord. -
Page 8: Description Of The Machine
9. Piston with saw blade mount 5. Saw plate Description of the machine The PROXXON Super SS 115/E Jig Saw is the ideal device for straight cuts and, above all, curved cuts in wood (up to " or 12 mm), sheet metal (up to "... -
Page 9: Accessories Included
Depending on the material to be cut, you can choose between two different types of saw blades PROXXON provides. The correct selection of material has a very great influence on the quality of the result. You can find the description of the appropriate saw blades in the accessories-section. - Page 10 Note: The rip fence can also be used for circular cuts. For this purpose, position a nail at the center point of the circle and use as axis for the stop. The scale for circled cuts is on the back of the guide of the rip fence. Working with the jig saw Danger! Injury hazard! Safe and precise operation is only possible if the work piece is securely...
-
Page 11: Maintenance
Do not use solvents or cleansing agents containing alcohol (e.g. benzene, cleaning alcohol, etc.) as these can corrode the plastic housings. Accessories Accessories available from PROXXON: NO 28 054: Supercut jig saw blades of special steel 24 tpi, teeth set and ground. Work on hard and soft woods, plywood, fiberglass reinforced sheets as well as some plastics. - Page 12 U.S., province to province in Canada and from country to country. This limited warranty applies only to PROXXON power tools sold within the United States of America, Canada, the commonwealth of Puerto Rico and Mexico.
- Page 13 Schematics for Jig Saw SS 115/E, Article No. 38530 - 13 -...
- Page 14 Every part has a specific number (5 digit- XX). Please provide us with this number when ordering. For any further information call us toll free at 1-877-PROXXON (1-877-776 9966) or visit us on the web at www.proxxon.com/us.
