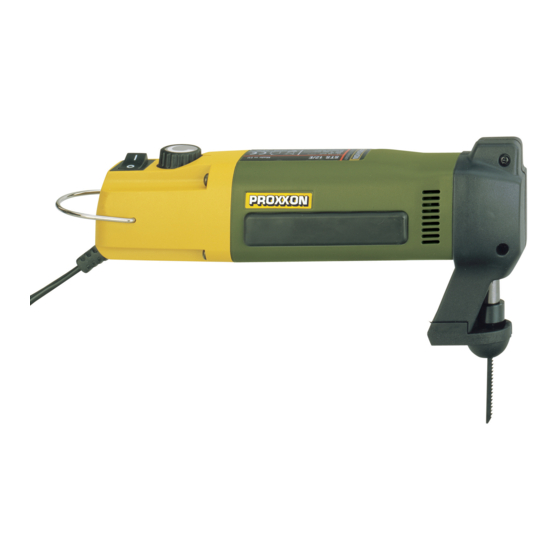

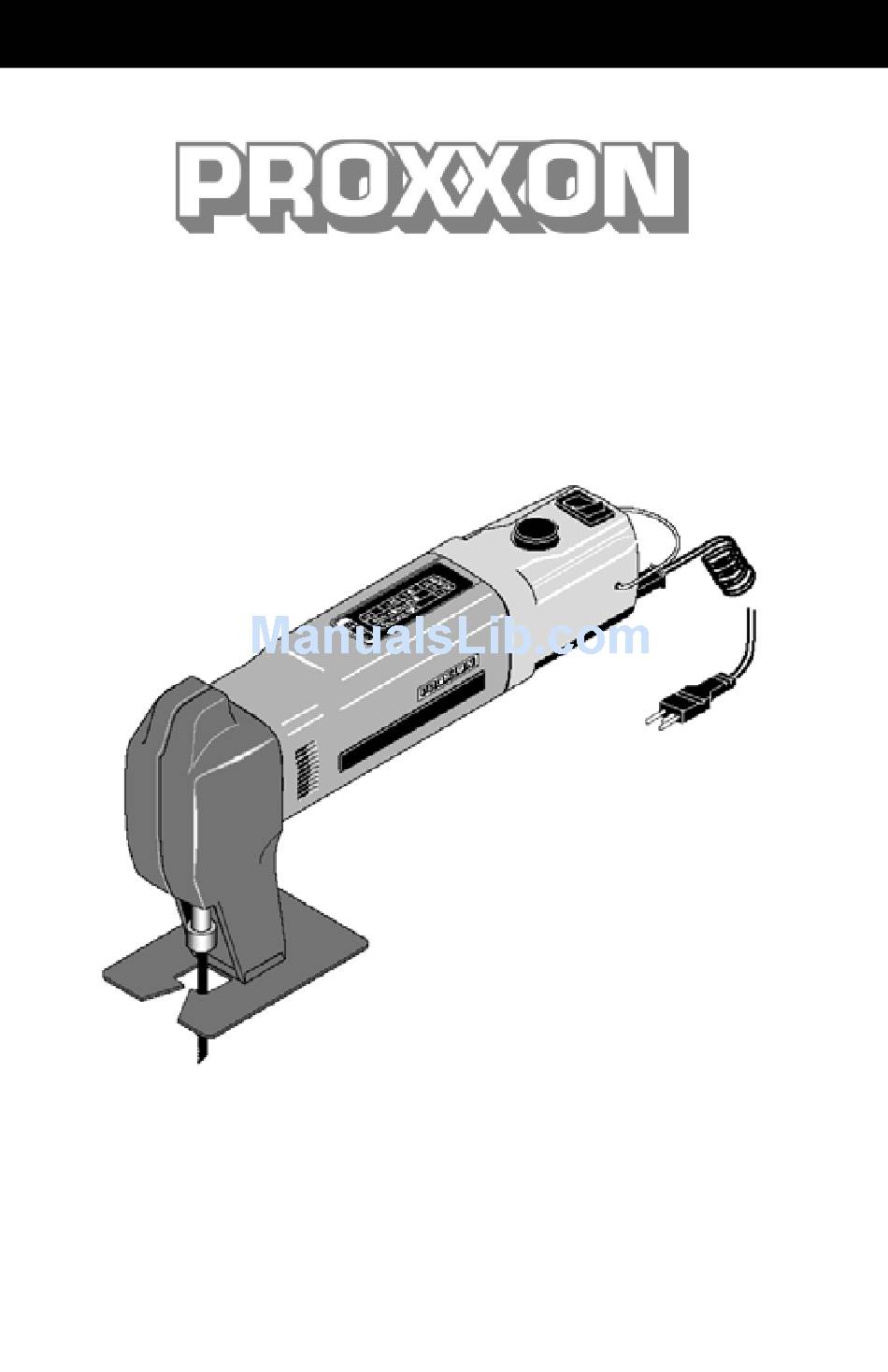

- Page 1 ProxxonTools.com MICROMOT Jigsaw STS 12/E...
- Page 2 Manual MICROMOT Jigsaw STS 12/E General: This very lightweight and powerful machine is ideal for curved cuts in wood up to 3/8” (10 mm), circuit boards up to 7/64” (3 mm) and non-ferrous metals up to 3/32” (2,5 mm) thickness. Its weight makes it easy to handle and thus allows for precise control of the cutting action.
- Page 3 Note: The electronic speed-control is thyristor-regulated. Therefore it works only, when the unit is connected to non stabilized power supplies (e.g. all PROXXON MICROMOT power supplies). When connecting the unit to a battery, it will run full speed, only. Power Supplies for Jigsaw STS 12/E:...
- Page 4 Manual MICROMOT Jigsaw STS 12/E Inserting and changing the saw blade (fig. 2): Do not connect the saw to the power supply before inserting the blade and remove the plug from the adapter, when changing the saw blade during operation! Fig.
-
Page 5: Safety Regulations
A material oriented speed/stroke can be adjusted by turning the control knob 1. Use higher speeds for wood, aluminum, brass and circuit boards, lower speeds for plastics, specially thin materials and very delicate work pieces. Important: Only sharp and faultless saw blades will guarantee adequate cutting results. - Page 6 Manual MICROMOT Jigsaw STS 12/E Maintenance: Lubricate the piston at regular intervals (after approx. 30 minutes of operation) with one drop of machine oil (see fig. 4). Fig. 4 Try to keep the unit as clean as possible. Other maintenance...
