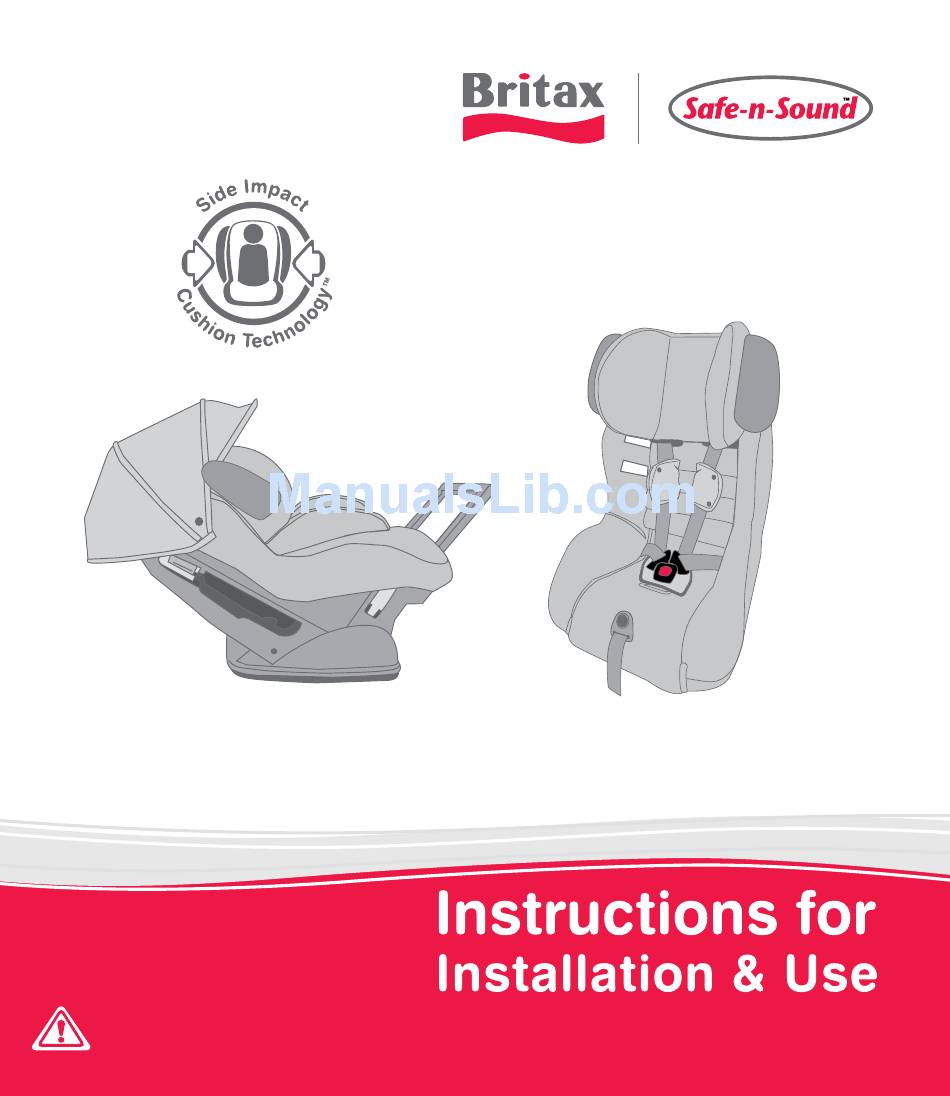

Britax AHR Air Cushion 7200 A 2010 Instructions For Use Manual

Convertible child restraint
Hide thumbs
Table of Contents

Advertisement

Quick Links

Rearward Facing
For use with children
up to approximately 12 months.
IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT
AHR Air Cushion™
Convertible Child Restraint
Series No. 7200/A/2010
Forward Facing.
For use with children from
approximately 12 months to
approximately 4 years of age.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AHR Air Cushion 7200 A 2010 and is the answer not in the manual?

Questions and answers

Related Manuals for Britax AHR Air Cushion 7200 A 2010

Summary of Contents for Britax AHR Air Cushion 7200 A 2010

  • Page 1 AHR Air Cushion™ Convertible Child Restraint Series No. 7200/A/2010 Rearward Facing Forward Facing. For use with children For use with children from up to approximately 12 months. approximately 12 months to approximately 4 years of age. IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT...
  • Page 2 CAREFULLY READ ALL THE INSTRUCTIONS FOR INSTALLATION. IN THE EVENT OF DOUBT ABOUT HOW TO INSTALL THE METHOD OF INSTALLATION, CONSULT BRITAX CHILDCARE OR AGENT OR A CHILD RESTRAINT FITTING STATION AUTHORISED BY A RELEVANT TRANSPORT AUTHORITY OR, IN NEW ZEALAND, HOW TO USE THE AGENT FOR THE VEHICLE.
  • Page 3 • Use the restraint exactly as shown in the instructions. • The restraint should not be purchased or sold as a second hand item. It is recommended not to use child restraints older that 10 years as the protection in an accident may be reduced. •...

  • Page 4: Shoulder Height Markersa Growing Child

    SHOULDER HEIGHT MARKERS A GROWING CHILD SHOULDER HEIGHT MARKERS Newborn (Rearward Facing) Shoulder height markers are provided on this restraint for a visual indication that the child is safe to Shoulder height ride in this restraint. Do not turn to forward-facing until the child's shoulder's reach the lower marker. label (hidden) Do not continue to use the restraint if the child's shoulders are above the top marker.

  • Page 5: Shoulder Height Markers

    SHOULDER HEIGHT MARKERS THE NEXT STEP SPECIAL FEATURES: REARWARD-FACING For the next child restraint choose Convertible Booster To be used only in a rearward-facing position until the infant's shoulders reach the lower shoulder seat used with from: height marker (approximately 12 months of age). internal harness •...

  • Page 6: Suitable For Use

    SPECIAL FEATURES: REARWARD-FACING SUITABLE FOR USE TO BE USED WITH A LAP SASH OR LAP ONLY SEAT BELT IN THE BACK OF MOST CARS WITH FORWARD-FACING SEATS. To be used only in a rearward-facing position until the 465mm child's shoulders reach the lower shoulder height marker (approximately 12 months of age).

  • Page 7: How To Set Up

    SUITABLE FOR USE HOW TO SETUP INSTALLING INTO VEHICLE REARWARD Fully press Adjuster Button (A) while pulling Upper Anchorage FACING Strap (B) to lengthen. A. The restraint is normally packaged in the fully upright DO NOT USE RESTRAINT IN REARWARD FACING child use mode so if you need to use it for baby use MODE WITHOUT STABILISING BAR FULLY EXTENDED.
  • Page 8 HOW TO SETUP HOW TO SETUP Headrest trim end INSTALLING INTO THE CAR D. If using a lap-sash seabelt, disengage the Infant Safety rear facing Lock-off. Fully lengthen seat belt Cushion Insert and feed the seat belt through the closest A.
  • Page 9 HOW TO SETUP HOW TO SETUP F. Refit the harness buckle through Seat Pad and G. Align restraint centrally to the chosen seating position. Pull sash portion of seat belt until all slack is fit the Seat Pad around the Push Button adjuster removed from Lap portion of seat belt.

  • Page 10: How To Install

    HOW TO SETUP HOW TO INSTALL Attachment Clip H. Fit the attachment clip to the car's anchor Attachment Clip fitting as shown. Make sure to remove as many twists as possible from the upper Car's Anchor Fitting anchorage strap. Refer to the car owner's Ensure Upper Anchorage Strap is tightened, handbook for the location of the child Car's Anchor Fitting...
  • Page 11 HOW TO INSTALL HOW TO INSTALL ANGULAR ADJUSTMENT OF RESTRAINT IMPORTANT: If using an Extension Strap, positioning the Attachment Clip above the baby may lead Some vehicle seats have more rearward slope than others. If the angle of the seat causes the baby to to injury in an accident therefore make sure that the Attachment Clip is not positioned in front of the be too upright for comfort, the angle may be altered by placing a firm packing between the seat and vehicle seat.
  • Page 12 HOW TO INSTALL HOW TO INSTALL ADJUSTING HARNESS STRAP HEIGHT & HEADREST: 1. The shoulder straps must be in the slots which are nearest to the child's shoulders, but not lower than the child's shoulders. There is only one set of slots so the seat will always have the shoulder FOR BABY USE REARWARD-FACING straps in place.

  • Page 13: How To Use

    HOW TO INSTALL HOW TO USE ADJUSTING AHR TILT & ADJUST PLACING BABY INTO RESTRAINT Pull forward to HEADREST AND HARNESS STRAP A. Ensure the headrest and shoulder straps are adjusted to the unlock headrest HEIGHT correct height for your child (see page 6 and 7). A.
  • Page 14 - see previous page. pulling both Shoulder Harness Straps to slacken Do not use restraint if straps do not tighten and contact Britax Childcare Customer Service. Refer harness to the desired amount. to back cover for details.
  • Page 15 SPECIAL FEATURES: FORWARD-FACING HOW TO USE TO REMOVE RESTRAINT FROM To be used only in a forward-facing position by children whose shoulder's have reached the lower Fully press Adjuster Button (A) shoulder height marker (approximately 12 months of age) until the shoulders reach the upper shoulder VEHICLE while pulling Upper Anchorage height marker (approximately 4 years of age.)
  • Page 16 SPECIAL FEATURES: FORWARD-FACING SUITABLE FOR USE 14. Car's Anchor Fitting 15. Vehicle seat belt TO BE USED WITH A LAP SASH OR LAP ONLY SEAT BELT IN THE BACK OF MOST CARS WITH 16. Pocket for Instruction Manual (Behind Restraint) 27 28 FORWARD-FACING SEATS.
  • Page 17 HOW TO SETUP HOW TO SETUP INSTALLING INTO VEHICLE FORWARD FACING F. Convert the restraint to child use mode by placing one hand over rear corner of the base and lift the (UPRIGHT OR RECLINED) top end of restraint with the other hand until audible A.
  • Page 18 HOW TO SETUP HOW TO SETUP H. Place one hand on the front corner of base J. Fully lengthen seat belt. Thread the seat belt into child use seat belt path (yellow marker) as shown Lift Grey Recline firmly, while with the other hand push the Grey below, ensuring that the seat belt is behind the harness straps and that the lap part of the seat belt is Latch Recline Latch up to unlock and push back until...
  • Page 19 HOW TO INSTALL HOW TO INSTALL Attachment INSTALLING INTO VEHICLE FORWARD-FACING Pull to remove Clip (UPRIGHT OR RECLINED) slack, then store Car's Anchor Fitting the strap as shown M. Fit the attachment clip to the anchor fitting as shown. Upper Anchorage Attachment Clip FORWARD-FACING Make sure to remove as many twists as possible from the...
  • Page 20 HOW TO INSTALL HOW TO INSTALL ADJUSTING HARNESS STRAP ADJUSTING AHR TILT & ADJUST Harness Shoulder slots. HEIGHT AND HEADREST: FOR HEADREST AND HARNESS STRAP CHILD USE FORWARD-FACING Upper shoulder HEIGHT (Height marker Harness Correct fitment of the harness is very A.
  • Page 21 HOW TO USE HOW TO USE PLACING CHILD IN THE RESTRAINT D. Ensure all slack is removed from Pull to remove harness lap straps by pulling shoulder slack from straps, then pull harness adjustment Shoulder Straps A. Lengthen harness by pushing and holding the harness lap strap to adjust harness to a comfortable Pull to lengthen...

  • Page 22: Care And Maintenance

    HOW TO USE CARE & MAINTENANCE TO RECLINE RESTRAINT REGULAR CARE OF THIS RESTRAINT: Lift Grey Recline Latch up while moving restraint into desired recline position. Please check the following items regularly to ensure the The child restraint may be reclined or positioned upright safety of your child: without removing the child from the restraint.
  • Page 23 Harness Tongues and Buckle, then repeat cleaning several times. If the Harness Buckle cannot be returned to its original working condition then contact Britax Childcare Customer Service. Click E. Refit the harness buckle to the restraint with the red button facing out and feeding each 3-bar slide through appropriate slot.
  • Page 24 CARE & MAINTENANCE CARE & MAINTENANCE TO REMOVE COVER: H. To remove trim cover, unhook elastic trim body from behind Unhook elastic loops from the the restraint and at the front of the restraint next to stabilising back of the restraint bar.
  • Page 25 CARE & MAINTENANCE CARE AND MAINTENANCE STEREO SPEAKERS (IF FITTED) Speakers are fitted to the headrest to provide enjoyment for your child. The speaker cable is fitted with a stereo plug that is compatible with most Mp3 players and other audio devices (devices not included).
  • Page 26 CARE AND MAINTENANCE ACCESSORIES TO REPLACE INFANT SAFETY CUSHION™ INSERT ONLY USE SAFE-N-SOUND SEAT COVERS AND ACCESSORIES THAT ARE DESIGNED AND TESTED FOR USE WITH THIS PRODUCT. The Infant Safety Cushion™Insert is designed to The following instructions apply to accessories that may be supplied with this restraint at point of snugly support baby for extra support and comfort and purchase.
  • Page 27 ACCESSORIES ACCESSORIES POCKETS MESSY MAT™(IF SUPPLIED) The messy mat has been specifically designed to protect The pockets sewn on the trim are designed for your Long Messy Mat™ your vehicle seat from children’s shoes rubbing against convenience. They can hold those necessary items that you it.

  • Page 28: Travelling Tips

    TRAVELLING TIPS TRAVELLING TIPS SAFETY FEEDING Never hold a baby in arms when riding in a motor vehicle. In this position the baby could be thrown Never breast feed a baby while car is in motion. Babies will require extra feeding if travelling in the against the dashboard, windscreen or other occupant and suffer serious injury or death.

  • Page 29: Installation Of Car Anchor Fitting

    INSTALLATION OF CAR ANCHOR FITTING INSTALLATION OF CAR ANCHOR FITTING Consult the vehicle owner’s handbook for location of anchorage fittings or anchorage points and the Extension Strap distance to be measured. possible use of spacers. Some vehicles may have an anchor fitting fitted by the vehicle manufacturer. Length 300mm (Use Safe-n-Sound part 0035).
  • Page 30 INSTALLATION OF CAR ANCHOR FITTING INSTALLATION OF CAR ANCHOR FITTING UPPER ANCHORAGE FITTING IF THE CAR IS FITTED WITH CHILD ONLY USE A 5/16 UNC GRADE 5 BOLT. IF THE BOLT IS NOT THE Note: Marking on Fig.1. CORRECT LENGTH THE CAR MANUFACTURER’S HAND BOOK RESTRAINT ANCHORAGE POINT Attachment Bolt the top of a Grade 5...

  • Page 31: In Case Of Accident

    Our Crash Exchange Terms and Application form are accessible on our website. Please visit There is no method of determining if the restraint has been damaged and we concur with the Australian/New www.britax.com.au for further information. Zealand Standards in recommending destruction of the child restraint.
  • Page 32 NOTES NOTES...
  • Page 33 The Safe-n-Sound trademark and other trademarks are the property of Britax Childcare Pty. Ltd. (Australia). The Britax trademark is the property of Britax Excelsior Limited (UK). We reserve the right to alter this product without notice. © 1995-2012 Britax Childcare Pty. Ltd. This product is covered by Australian and overseas Patent applications.
