Summary of Contents for Pro Charging Systems ProXtra 1

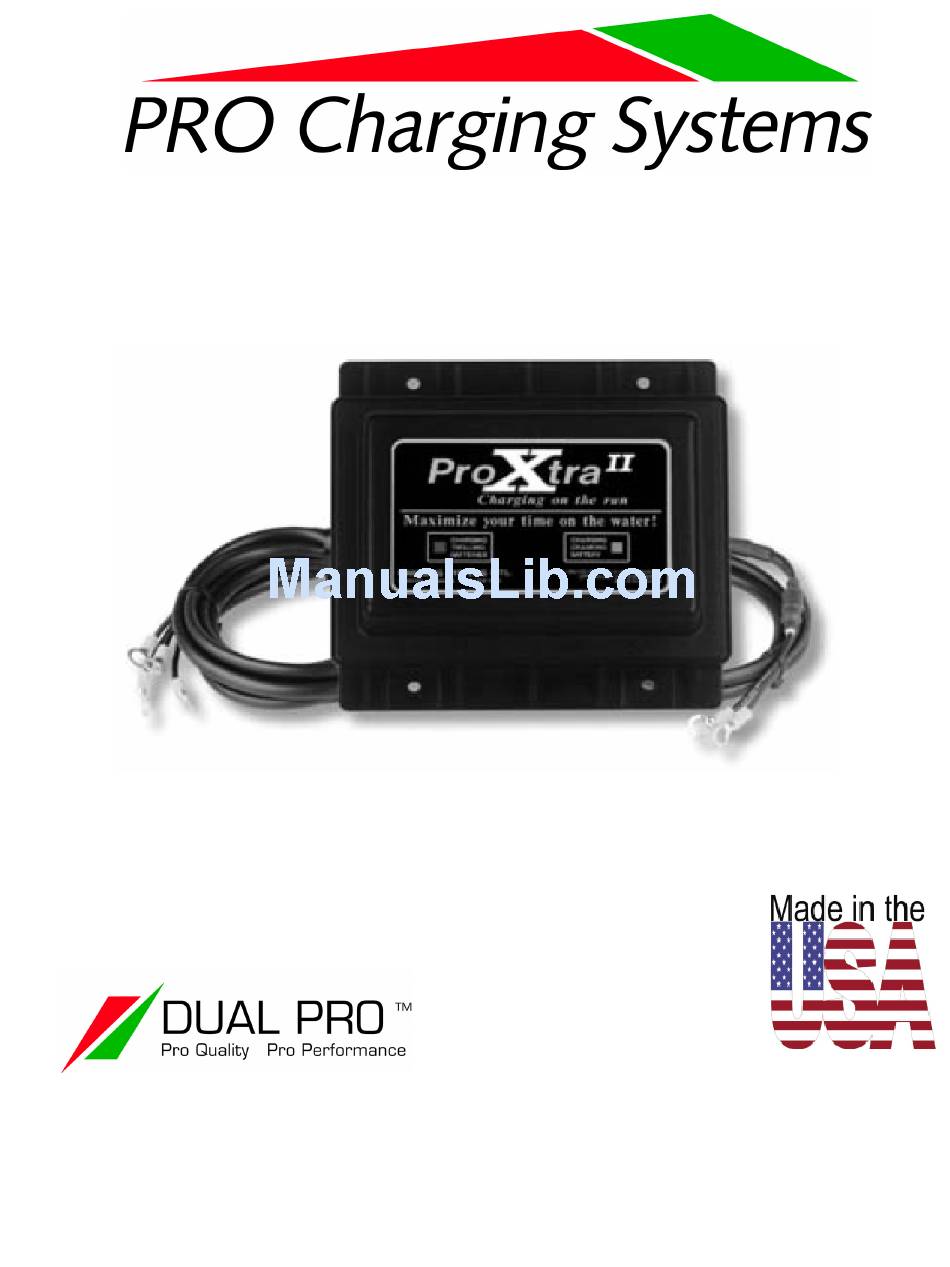

- Page 1 For additional information please call our Technical Support Group 800.742.2740 072408 PRO CHARGING SYSTEMS, LLC 1551 Heil Quaker Boulevard, LaVergne, TN 37086-3539...
- Page 2 *Each charger cable assembly attached to one 12 Volt battery. IMPORTANT NOTICE: Please save and read these safety, operating and installation instructions before installing or applying AC power to your charger. Contact Pro Charging Systems, LLC (PCS) with any product, installation or service questions (800.742.2740). Introduction...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS. This manual contains important safety and operating instructions for the ProXtra 1, ProXtra 2, and ProXtra 3. Use of attachments not recommended or sold by PCS may result in a risk of fire, electrical shock, or personal injury. -
Page 4: Product Summary
Someone should be within range of your voice or close enough to come to your aid when you work near a lead-acid battery. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, eyes, or other surfaces. Wear complete eye protection and clothing protection. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS Do not make any electrical connections to the main engine battery or additional batteries until the installation process has been completed. The ProXtra may be mounted at any angle. For best results, place the ProXtra at the desired location and mark the screw locations, using the mounting bracket as a template. - Page 6 POST-INSTALLATION TESTING After completing the total installation process for the ProXtra, it is possible to test the unit for proper operation without having to operate the main engine. 1. Attach a battery charger designed for a 12 volt system to the starting battery.
-
Page 7: Troubleshooting
TROUBLESHOOTING PROBLEM: No indicator lights are illuminated on the ProXtra during engine operation. SOLUTION SEQUENCE: • Check battery connections for tightness and proper polarity. • Check in line fuses on Red and Black wires on starting battery cable. • Call PCS technical support at 800.742.2740. PROBLEM: Charging Trolling Batteries indicator does not illuminate during engine operation. -
Page 8: Limited Warranty
LIMITED WARRANTY Pro Charging Systems, LLC (PCS) makes this Limited Warranty only to the original retail purchaser. PCS warrants this battery charger for three years from the date of retail purchase against defective materials and/or workmanship. If such defects should occur, this unit will either be repaired or replaced at the discretion of the manufacturer.
