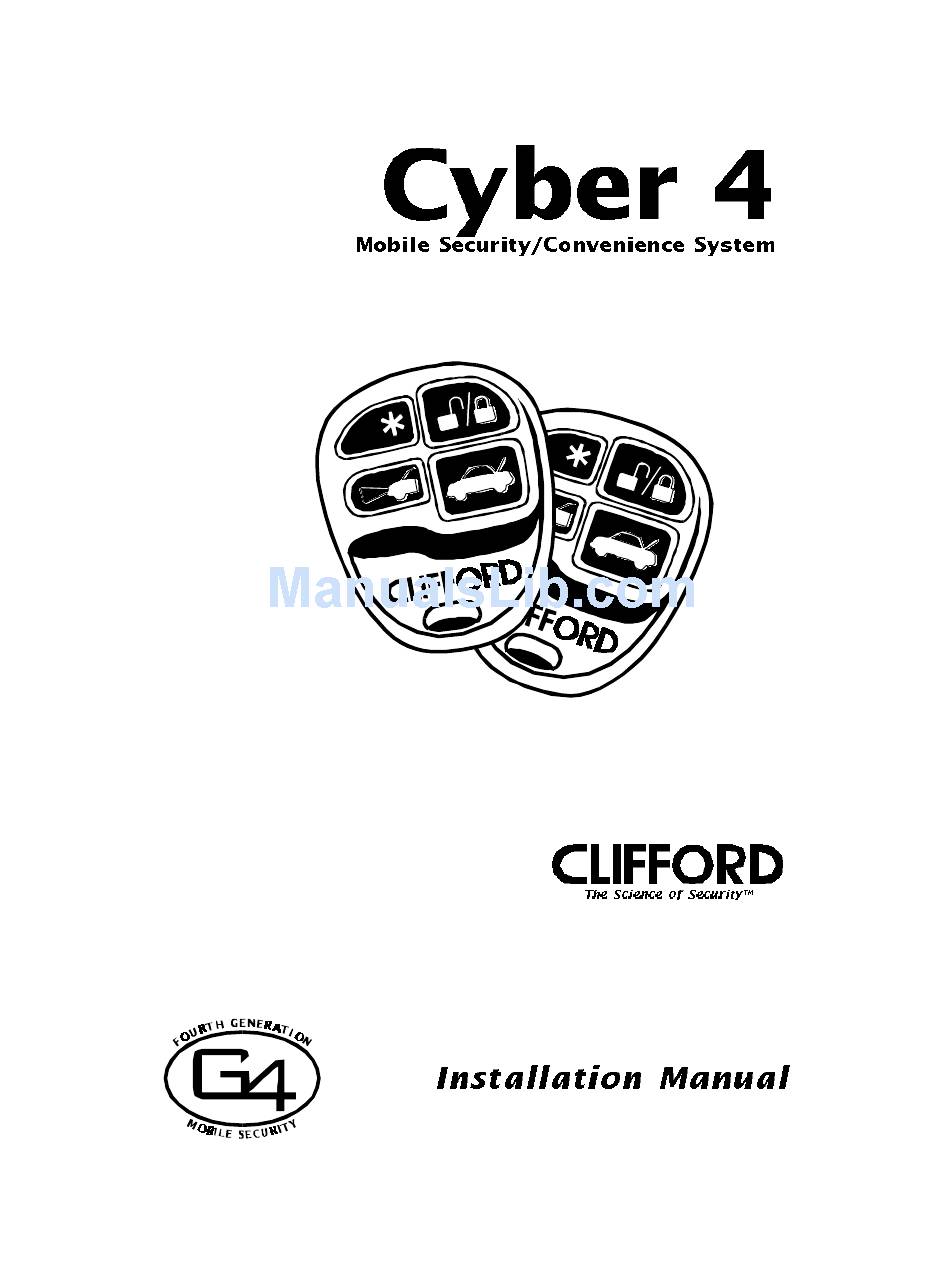

  • Page 2 For the latest vehicle wiring information and for wiring diagrams and servicing information on older Clifford products: 24-hour AutoFax: 1-800-444-4667 24-hour dealer website: www.clifforddealer.com Clifford Electronics, Inc. n 20750 Lassen Street n Chatsworth, CA 91311 1-800-824-3208 or 1-818-709-7551 n fax 1-818-407-1743...

  • Page 3: Table Of Contents

    Ta ble of Con tents Im por tant In for ma tion ......2 Re quired In stal la tion Tools .

  • Page 4: Im Por Tant In For Ma Tion

    Im por tant In for ma tion 1. DO NOT dis con nect the bat tery ca bles! Make bat tery con nec tions by re mov ing the lug nuts from the bat tery clamps with out de tach ing the clamp it self. 2.

  • Page 5: Stan Dard Fea Tures

    Prewired LED, Sensor and PlainView 2 Switch Connectors n Patented Smart AutoTesting™ Sys tem Com po nents The Cyber 4 installation kit contains the following components: One Prewired 24-pin connector harness One Antenna One Prewired 2-pin connector harness One High Output Siren...

  • Page 7: Wir Ing De Scrip Tion For 2- Pin Con Nec Tor

    Con trol Unit and An tenna The Cyber 4 con trol unit must be in stalled in side the ve hi cle. Un der no cir cum stances should the unit be in stalled un der the hood or other simi larly hos tile en vi ron ment.

  • Page 8: Cen Tral Door Lock Ing Sys Tem

    Please refer to the Door Locks section below for information on circuit types and connections. When adding an IntelliStart 4 to the Cyber 4, it is recommended that RPM-depending door locking be selected. The RPM-dependent door locking feature is only available with the addition of the IntelliStart 4.

  • Page 9: Door Lock Dia Grams

    Lock/Unlock Diagram 6, then (if 1989 or older) program the system for a 3-second lock pulse. 6. The Cyber 4 can also provide double lock and unlock pulses (+ or -) required by some vehicles (such as some Nissans’ Volkswagens and Audis). Wire the door locks following...

  • Page 10: Led Status In Di Ca Tor

    RED, ORANGE and BLUE wires. Trunk Trig ger Vehicles with a ground-switching trunk light will interface directly with the Cyber 4 (on positive switching Rolls-Royce vehicles, use a relay to invert polarity). The switch may be located in or near the trunk latch or at the trunk light. If a switch cannot be located, you must add a pin switch in a location away from water channels.

  • Page 11: Park Ing Lights

    Pas sen ger Com part ment Con nec tions (Con tin ued) Park ing Lights The Cyber 4 has built-in parking light relays. To determine whether the vehicle has single or dual parking light circuit(s), you must access the fuse panel. A single circuit has one fuse; a dual circuit has two.

  • Page 12: Aux Il Iary A With Se Lecta Ble Out Put Type

    Pas sen ger Com part ment Con nec tions (Con tin ued) Aux il iary A with Se lecta ble Out put Type The Auxiliary A output (GRAY/VIOLET wire) can be programmed as either pulsed, latched or timed and can be programmed to operate only when the system is disarmed (e.g., for use as a remote trunk release).

  • Page 13: Sta Tor Or Ig Ni Tion Im Mo Bi Li Za Tion Cir Cuit

    3. Connect the RED wire through the 5A fuse coming from the battery positive cable clamp. Hood Trig ger Vehicles with a ground-switching hood light will interface directly with the Cyber 4 (on positive switching Rolls-Royce vehicles, use a relay to invert polarity). The switch may be located in or near the hood latch or at the hood light.

  • Page 14: Fi Nal Wir Ing Con Nec Tions

    The Cyber 4 comes with two ergonomically designed remote controls. Up to two additional Clifford ACG 2 remote controls can be added (older Clifford ACG and non-ACG remotes are not compatible with the Cyber 4). For instructions on how to use the remote controls, please refer to the Cyber 4 User’s Manual.

  • Page 15: Fact-False Alarm Con Trol And Test

    FACT—False Alarm Con trol and Test The system microprocessor automatically checks for another activated sensor or trigger before sounding the siren a second time, thus preventing any further false alarms. If you wish to test FACT, simply, 1. Arm the sys tem with the re mote con trol. 2.

  • Page 16: Pro Gram Ma Ble Fea Tures

    Pro gram ma ble Fea tures Cyber 4 comes from the factory with its features preprogrammed as noted in bold text in the tables on pages 15 and 16. Some features can be programmed by the installer or the user, others can only be programmed by the installer.

  • Page 17: User- Programmable Fea Tures Ta Ble

    When you hear two chirps, all remote controls will have been erased from NOTE 4: the system memory. You must now add the new and/or existing remote controls to the system (i.e., AutoProgram each remote that will be used with the Cyber 4).

  • Page 18: Installer- Programmable Fea Tures

    User- Programmable Fea tures (Con tin ued) Programs a remote control from any other Clifford system (that uses ACG 2 NOTE 5: technology) to arm or disarm the vehicle. For instance, to set the button combination of the other car’s master remote control to arm/disarm the system, select...

  • Page 19: Sys Tem Check List & Trou Ble Shoot Ing

    Step 2. Test the Im mo bi li za tion cir cuit. Arm the Cyber 4 (either from inside or outside the vehicle) and wait 10 seconds. Turn the ignition to the “ON” position. nEngine does not respond and alarm triggers. This is the correct response, proceed to step 3.
  • Page 20 This is the correct response, proceed to step 5. nOne flash. If the parking lights flash only once, the Cyber 4 had pre vi ously AutoArmed it self pas sively and by press ing the but ton the sys tem dis armed (re mote dis arm ing is ac knowl edged with one chirp and one parking light flash).
  • Page 21 1 of this sec tion. § Check the Cyber 4’s 20A fuse. If the fuse blew when you dis armed, the ve hi cle uses a posi tive door trig ger and you con nected the in te rior light sup ply wire to ground in stead of +12 volts.
  • Page 22 Stand approximately 40 feet from the vehicle and use the remote control to arm and disarm the system. nThe Cyber 4 will re spond with the pre vi ously noted in di ca tions for arm ing and dis arm ing. If not: §...
  • Page 23 Step 15. Dis trib ute all nec es sary pa per work in clud ing: nUser’s Manual must be given to the customer. nAdhere the Clifford window decals to the vehicle’s windows after discussing placement with the vehicle owner. Step 16.
