Installation facilities (accessories)

8 cm
min.
Information on accessories will be found in our leaflet or on our internet page www.memmert.com.
Please note the installation instructions for our accessories.

4.1 Subframe

Oven models 200 to 500 can be mounted on a subframe (accessory)

4.2 Stackable version

Two ovens of the same model size can be stacked on each other. Note that the oven
with the lower working temperature must always be placed at the bottom.
Foot locators (accessory) have to be fitted on the bottom oven.
• Take off cover of bottom oven
• Place drill jig (supplied with foot locators) into the inverted cover at the
back
• Mark holes and drill 4.2 mm dia.
• Screw the foot locators to the top of the cover using the screws and nuts
supplied
• Re-fit the cover
15 cm
8 cm
min.
min.
Oven on the
floor

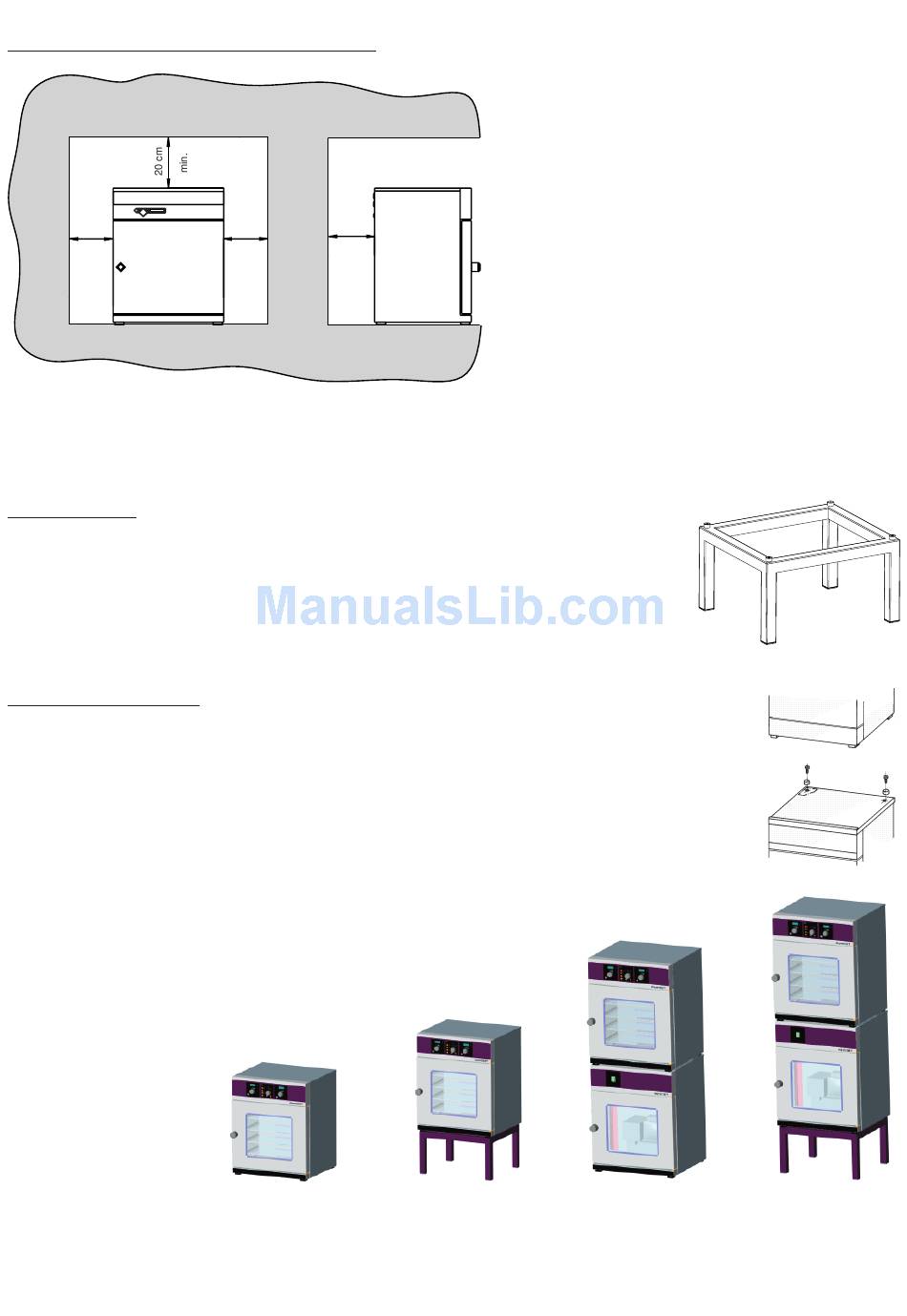

The oven can be placed on the floor or on a
bench (working surface). It is important that
the oven is set up accurately horizontally; the
door may have to be adjusted
„Maintenance")
The spacing from the back of the oven to the
wall should be at least 15 cm. The spacing to
the ceiling must not be less than 20 cm and
that at the side to the wall not less than 8 cm.
Generally it is essential to have adequate air
ventilation around the oven.
