Install Optional Components
Before installing the server into the rack, you must first install any optional components that you ordered with
the server, such as DIMMs, PCIe cards, and so on. Refer to the SPARC Enterprise M3000 Server Service Manual for
the instructions on installing optional components.
Mount the System In a Rack
For rackmounting instructions, refer to the instructions in the SPARC Enterprise Rack Mounting Guide (online)
and the Rail Kit Instructions which ships with the rails.
Installation Steps for the SPARC Enterprise M3000 Server
For quick installation and configuration, follow these steps. For more detailed information, see the SPARC
Enterprise M3000 Server Installation Guide.
Caution –
connecting the AC power cords.
▼ Connect the Cables
1. Connect the power cords to the power supply units on the rear panel of the server.
2. Connect the power cords to the AC power supply system.
This server is shipped with grounding-type (three-wire) power cords. Always connect the power cords into
grounded power outlets.

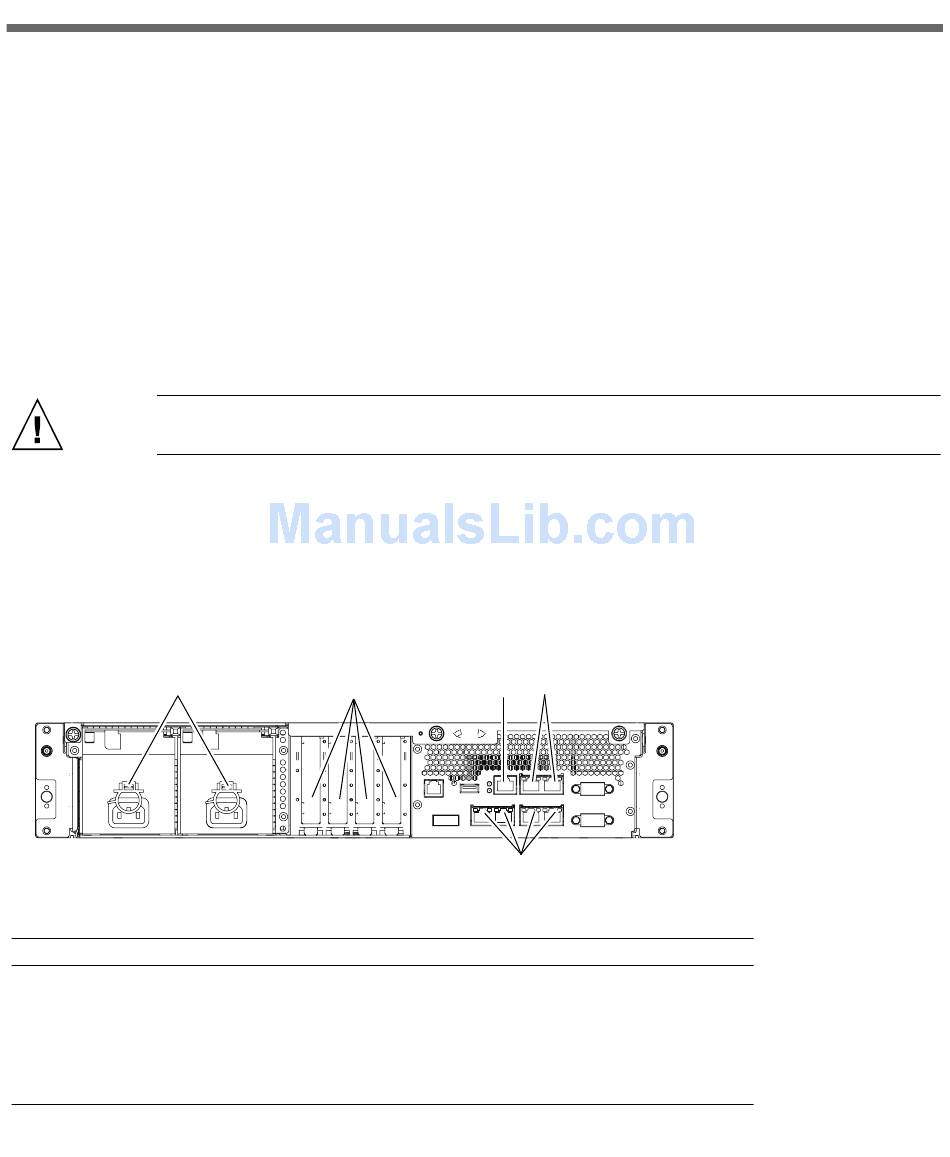

Rear Panel of the Server
FIGURE 1
1
Figure Legend
Location Number
Component
1
Power supply unit
2
PCIe slot
3
Serial port (for XSCF)
4
LAN port (for XSCF)
5
Gigabit Ethernet (GbE) port (for OS)
Make sure that the AC power source circuit breaker is in the OFF position before
2
3
4
5
2
