Martin Exterior 1200 User Manual

Image projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Exterior 1200
Image Projector

user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Exterior 1200 and is the answer not in the manual?

Questions and answers

Related Manuals for Martin Exterior 1200

Summary of Contents for Martin Exterior 1200

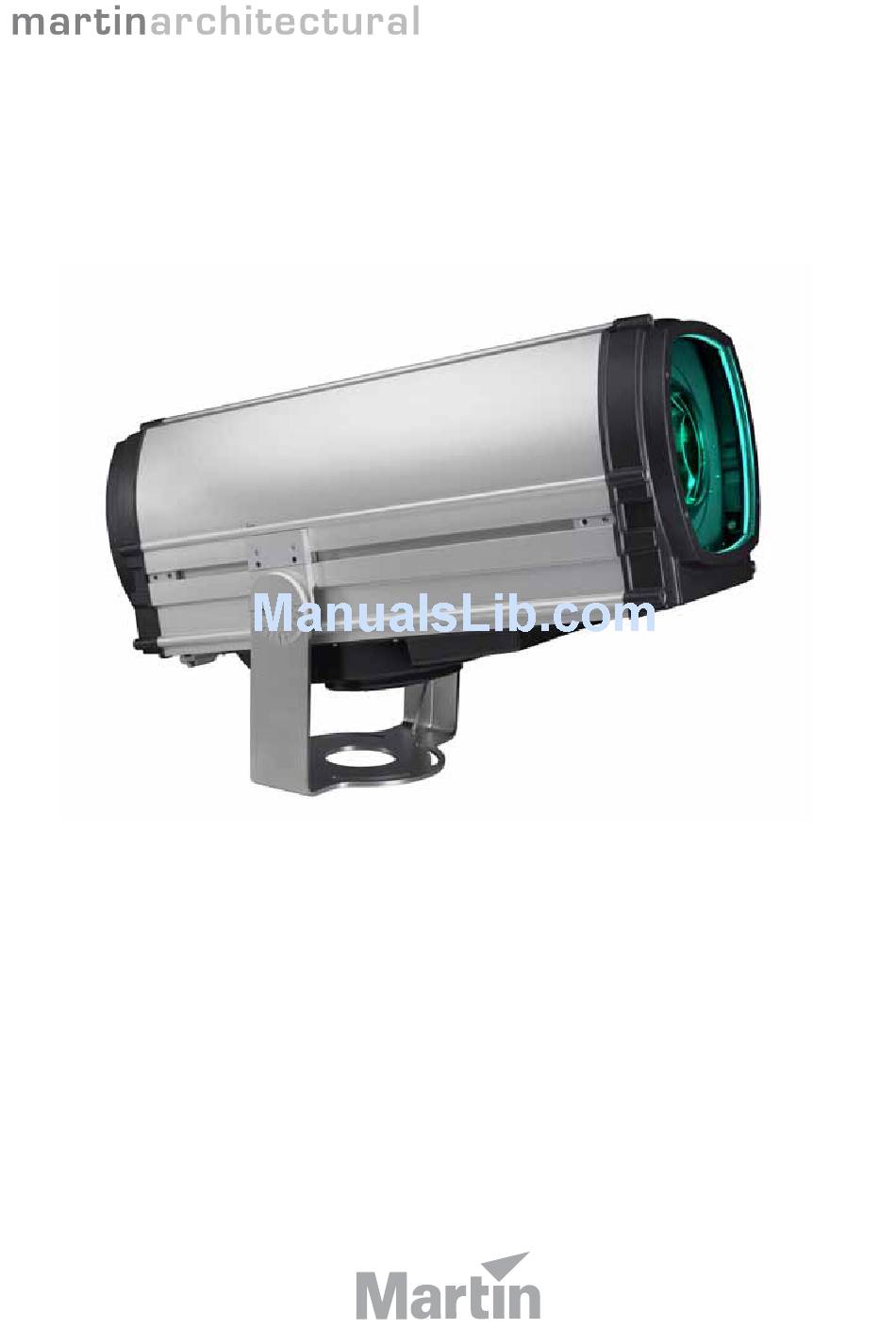

  • Page 1: User Manual

    Exterior 1200 Image Projector user manual...
  • Page 2 55° © 2007-2008 Martin Professional A/S. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S. Information subject to change without notice. Martin Professional A/S and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this manual.

  • Page 3: Section 1. Safety

    Section 1. Safety...

  • Page 4: Safety Information

    • Always ground (earth) the luminaire electrically. • Use only a source of AC power that complies with local building and electrical codes and has both overload and ground fault (earth fault) protection. Exterior 1200 Image Projector user manual...

  • Page 5: Lamp Safety

    • Do not immerse the luminaire in water or any other fluid, or install it in a location where flooding may occur. • Refer all service not described in this manual to a Martin service technician. Lamp safety • Do not operate the luminaire with missing or damaged covers, shields, lenses or ultraviolet screens: an unshielded discharge lamp emits UV radiation that can cause burns and eye damage.
  • Page 6 1200 Image Projector luminaires. • Install the luminaire outdoors or in a well ventilated area. • Do not place filters or other materials over the lens. Use only Martin approved accessories to mask or modify the light beam. Preventing injury due to falls and while lifting •...

  • Page 7: Table Of Contents

    2.1 About this manual ..........10 2.2 Introduction to the Exterior 1200 Image Projector ....11 Section 3.
  • Page 8 Exterior 1200 Image Projector specifications ......86 Exterior 1200 Image Projector user manual...

  • Page 9: Section 2. Introduction

    Section 2. Introduction...

  • Page 10: About This Manual

    Service, maintenance and adjustment Owner, service accessories, page 57 procedures. Overview of accessories. technician Section 9. Reference, page 79 Reference diagrams, charts, etc. Exterior 1200 Image Projector Product specifications specifications, page 86 Table 1: Using this manual Exterior 1200 Image Projector user manual...

  • Page 11: Introduction To The Exterior 1200 Image Projector

    2.2 Introduction to the Exterior 1200 Image Projector Thank you for selecting the Exterior 1200 Image Projector from Martin Architectural. This automated luminaire combines dynamic architectural lighting effects with extremely bright output in an aluminum housing designed for permanent outdoor installation. The luminaire uses a Philips MSD 1200 metal halide discharge lamp with an average lamp life of 3000 hours.
  • Page 12 Exterior 1200 Image Projector user manual...

  • Page 13: Section 3. Installation

    Section 3. Installation Introduction to the Exterior 1200 Image Projector...

  • Page 14: Physical Installation

    3.1 Physical installation DANGER! Read "Safety information" on page 4 before installing the Exterior 1200 Image Projector. Warning! The safety and suitability of lifting equipment, installation location, anchoring method, mounting hardware and electrical installation is the responsibility of the installer. All local safety regulations and legal requirements must be observed when installing and connecting the Exterior 1200 Image Projector.

  • Page 15: Location And Mounting

    Installing the lamp and removing protective packaging See Figure 2. Before the Exterior 1200 Image Projector can be used, you must open it, remove the shipping bracket (A) from the lenses and protective foam insert (B) from around the CMY flags, and then install the lamp supplied with the product. It will almost certainly be easiest if you do this now, before the luminaire is installed in its final location.
  • Page 16 Do not use the eyebolts for safety attachment. Location and orientation DANGER! The Exterior 1200 Image Projector mounting yoke base must be securely anchored to a suitable flat surface. Ensure that the supporting structure can bear the weight of all installed devices plus an adequate safety margin.
  • Page 17 The Exterior 1200 Image Projector requires free and unobstructed airflow around the heat exchanger to ensure adequate cooling: • Do not bury the luminaire or locate it in an unventilated space • Allow 135 mm (5.5 in.) free space around the heat exchanger •...

  • Page 18: Power And Dmx Data Cable Layout

    Power AC power 230V AC 50 Hz 50 Hz Max. 32 luminaires or 500m. before Figure 6: Schematic cable layout diagram opto-splitter is required. Power 230V AC 50 Hz Exterior 1200 Image Projector user manual...

  • Page 19: Connections Compartment Access

    3 . 1 . 4 C o n n e c t i o n s c o m p a r t m e n t a c c e s s DANGER! Fuseholders remain live even if the MAINS switch is set to off. Cut power to the luminaire before changing a fuse.

  • Page 20: Installing Ac Power

    3 . 2 . 1 C o n f i g u r i n g f o r l o c a l A C p o w e r Before AC power is applied to the Exterior 1200 Image Projector for the first time (or if the AC power voltage or frequency changes), the luminaire must be configured to accept the local power voltage and frequency as described in this section.

  • Page 21: Connecting To Ac Power

    The luminaire must be configured to accept the local AC power frequency and voltage by connecting the free ends of two jumper leads. The fixed end of each lead sits in an orange terminal. The free end of each lead must be connected to the appropriate terminal on the terminal block.
  • Page 22 USA) to obtain 200 - 240 V between two live conductors, connect one live wire to Live 1 and the other live wire to Live 2. Do not connect anything to the neutral terminal. Exterior 1200 Image Projector user manual...
  • Page 23 Some common wire color codes are listed in Table 2: Wire (EU) Wire (US) Marking Screw (US) yellow or brown black live “L” brass blue white neutral “N” silver yellow/green green ground green Table 2: Common wire color codes 9. If you are also connecting data cables, connect these now, referring to the next section in this manual.

  • Page 24: Installing A Data Link

    3.3 Installing a data link Exterior 1200 Image Projector luminaires must be connected via a serial data link for DMX controller operation and for synchronized stand-alone operation of multiple luminaires. The data link is used to transmit DMX commands or synchronization data.
  • Page 25 be disturbed or flexed when the rear cover plate is removed for service. All cable entry/exit holes that are not used must be sealed with blanking plugs. Connection pinouts XLR connection XLR connectors are suitable if DMX cable is used for the data link. XLR pin numbers are normally marked on connectors.
  • Page 26 32 luminaires, output to input, as described above. Add an optically isolated amplifier/splitter into the link if you intend to add more than 32 luminaires or branch the link. Exterior 1200 Image Projector user manual...

  • Page 27: Section 4. General

    Section 4. General Installing a data link...

  • Page 28: General

    Exterior 1200 Image Projector. This section contains general information about the features and functions as well as basic programming and operating principles of the Exterior 1200 Image Projector. Read this section to familiarize yourself with the luminaire before attempting to program or operate it.

  • Page 29: Lamp Operation

    4 . 1 . 5 ‘ E x e r c i s e P r o g r a m ’ a t l a m p o f f To ensure free and correct effect movement even if some effects are not used for long periods, the Exterior 1200 Image Projector runs an ‘exercise program’ and checks effect movement every time the lamp is switched off.

  • Page 30: Onboard Control Panel

    4 . 1 . 6 O n b o a r d c o n t r o l p an e l The Exterior 1200 Image Projector features an onboard control panel and text-based LCD display. The onboard display and control panel allows the user to:...

  • Page 31: Cooling Fans

    Self-diagnostic feedback messages In the event of a problem, the Exterior 1200 Image Projector will show a message in the display indicating the type of problem that has occurred. 4 . 1 . 7 C o o l i n g f a n s When power is applied, cooling fans run at full speed for a few seconds to clear any dust that has accumulated in the heat exchanger.
  • Page 32 Exterior 1200 Image Projector user manual...

  • Page 33: Section 5. Settings And Configuration

    Section 5. Settings and configuration General...

  • Page 34: Luminaire Settings

    Exterior 1200 Image Projector, see the separate Guide to Using the MP-2 with the Exterior 1200 Series, available from the Support page for the Exterior 1200 Image Projector on the Martin Architectural website at http://www.martin-architectural.com...

  • Page 35: Setting Up A Luminaire With A Pc And Mum

    2. Connect the DABS1 adaptor to your PC using the USB cable. 3. Connect the DABS1 adaptor to the Exterior 1200 Image Projector using either an XLR connector connected to the data link or the RJ-45 service socket in the connections compartment behind the rear cover plate (see G in Figure 12 on page 26).
  • Page 36 Configuring a luminaire with MUM Clock The Exterior 1200 Image Projector has a battery-operated 24-hour clock that is used to start and stop stand-alone operation. To set the clock: 1. Click on the Fixture Info button in MUM. 2. Using the Fixture real-time clock spin buttons, set the luminaire to the current time (expressed in the 24-hour clock in hours and minutes) and date.

  • Page 37: Setting Up A Luminaire With The Onboard Control Panel

    DMX ad dre ss, DMX L amp Off an d DMX Rese t se ttin gs If you intend to operate the Exterior 1200 Image Projector with a DMX controller, the DMX address must be set on all luminaires for which individual control is required. If you are not familiar with the principles of DMX addressing in an installation with multiple fixtures, see "7.1.1: Setting DMX addresses"...
  • Page 38 4. Press Enter to confirm your choice and return to main menu. If you press Menu, you will return to the main menu without saving the address you entered. Clock The Exterior 1200 Image Projector has a battery-operated 24-hour clock that is used to start and stop stand-alone operation. To set the clock: 1.

  • Page 39: Section 6: Stand-Alone Operation

    Section 6: Stand-alone operation Luminaire settings...

  • Page 40: Stand-Alone Programming: General

    The term stand-alone is used to mean that the Exterior 1200 Image Projector is not connected to a control device, but is pre-programmed with a series of up to 20 scenes that play continuously in a loop.
  • Page 41 An Exterior 1200 Image Projector running a stand-alone show can perform synchronized scene changes with other Exterior 1200 Image Projector luminaires as well as Martin Architectural luminaires of the following types: • Exterior 1200 Wash • Inground 200 6-Color • Exterior 200 •...

  • Page 42: Stand-Alone Programming Methods

    6 . 1 . 3 S t a n d - a l o n e p r o g r a m m i n g m e t h o d s You can program stand-alone shows on the Exterior 1200 Image Projector using the Martin MUM application on a personal computer (recommended because it provides an intuitive, easy-to-use, graphical user interface) or the luminaire’s onboard control panel.

  • Page 43: Stand-Alone Programming With A Pc And Mum

    6 . 2 . 1 C o n n e c t i n g To establish a connection: 1. Connect a DABS1 adaptor to a PC and to the Exterior 1200 Image Projector. 2. Power on the Exterior 1200 Image Projector and start the MUM application. The application will automatically detect an Exterior 1200 Image Projector if it is powered on and correctly connected.

  • Page 44: Stand-Alone Settings

    Stand-alone operation can be set to a timer trigger that activates operation for one or two periods in a 24 hour period, or set to a light-level trigger that uses a light sensor to activate operation when ambient light is below a certain level. Exterior 1200 Image Projector user manual...

  • Page 45: Programming Effects In Scenes

    If both the timer and the light-level trigger are used, operation starts whenever it is darker than the light-level setting, and within the times set. Setting a timer trigger To set a timer trigger: 1. Make sure the correct time has been set on the luminaire’s built-in clock (see "Clock" on page 36).
  • Page 46 The fade time, anything from 0 to 120 seconds, is the time it time takes to change from one effect to another. Scene wait This is the duration a color is applied. A wait time can be from 1 time second to 12 hours. Exterior 1200 Image Projector user manual...
  • Page 47 When setting scene fade and scene wait times for luminaires in synchronized operation, avoid unexpected problems by making sure that each scene time is slightly longer in the master luminaire than in the slave luminaires (see "6.1.2: Synchronized operation with multiple luminaires"...

  • Page 48: Programming The Same Stand-Alone Show On Multiple Luminaires

    The main stand-alone programming commands available in the MUM application are also available in the Exterior 1200 Image Projector’s onboard control panel, but because the control panel is text-based, it is not as intuitive as MUM. The commands available are listed under St a n d al o n e in "9.3: Onboard control panel menus"...

  • Page 49: Stand-Alone Playback

    If an Exterior 1200 Image Projector is connected to a DMX controller and receives DMX signals during show playback, the stand-alone show will stop running and the luminaire will respond to the DMX controller.
  • Page 50 Exterior 1200 Image Projector user manual...

  • Page 51: Section 7. Dmx Control

    Section 7. DMX control Stand-alone playback...

  • Page 52: Preparing For Dmx Control

    DMX lamp off and DMX reset settings that you may wish to alter. You can use either a PC with the Martin MUM (Multi-Utility Manager) application or the onboard control panel to prepare your Exterior 1200 Image Projector. MUM is probably easier to use because of its graphic user interface.

  • Page 53: Dmx Reset Option

    7 . 1 . 3 D M X R e s e t o p t i o n When the DMX Reset feature is ON (the default setting), the luminaire can be reset from the controller by setting channel 1 to a DMX value from 208 to 217 (81-85%). When DMX Reset is set to OFF, the reset command executes only if channels 3, 4, and 5 are set to values from 230 to 232.

  • Page 54: Dmx Controller Operation

    "9.4: DMX protocol" on page 84 for an overview of DMX control channels and values. If an Exterior 1200 Image Projector is connected to a DMX controller and receives DMX signals during stand-alone show playback, the stand-alone show will stop running and the luminaire will respond to the DMX controller.

  • Page 55: Color

    A radial breakup animation wheel that is suitable for flame and ripple effects is supplied as standard. A range of alternative wheels is available from Martin Architectural.

  • Page 56: Focus

    You can select tracking or vector control using your DMX controller, but you cannot use both at the same time. Exterior 1200 Image Projector user manual...

  • Page 57: Section 8. Service And Accessories

    Section 8. Service and accessories DMX controller operation...

  • Page 58: Service: General

    20 minutes before powering off. If you ever need to transport an Exterior 1200 Image Projector, reinstall the shipping bracket and protective foam insert supplied with the product (see Figure 2 on page 15).

  • Page 59: Cleaning

    If the heat exchanger appears to be clean, contact Martin Architectural for assistance. 8 . 3 . 1 C l e a n i n g t h e h e a t e x c h a n g e r The heat exchanger cooling fan, vents and channels must be kept clean to allow free airflow through the heat exchanger.

  • Page 60: Cleaning The Housing And Front Glass

    8 . 3 . 2 C l e a n i n g t h e h o u s i n g a n d f r o n t g l a s s The Exterior 1200 Image Projector’s aluminum housing and front glass can be cleaned with mild detergents such as those for washing cars.

  • Page 61: Seals

    The seals should maintain their sealing ability for the life of the luminaire, but examine them when servicing the luminaire and replace any seal that is cracked, torn, brittle, or inflexible. Replacement seals may be ordered from Martin Architectural. For part numbers, see Table 3 on page 62.

  • Page 62: Torque Settings

    All torque setting figures are for clean, dry threads. To ensure that the Exterior 1200 Image Projector is waterproof and to avoid damaging threads, a torque driver with a range from 2 Nm (1.5 ft.-lbs.) to 16 Nm (11.8 ft.-lbs.) must be used.

  • Page 63: Lamp Maintenance

    8 . 5 . 1 A p p r o v e d l a m p Important! The Exterior 1200 Image Projector is designed to use only the lamp specified below. Installing any other model may cause damage to the luminaire that is not covered by the product warranty.

  • Page 64: Installing The Lamp

    2. See Figure 18. Loosen the six Allen head screws holding the front cover and remove the cover and its rubber seal. Avoid damaging the seal during removal. Figure 18: Removing the front cover and seal Exterior 1200 Image Projector user manual...
  • Page 65 3. See Figure 19. Pull out the slider locks in the sliders on each side at the front of the housing and slide the lamp/effects assembly out of the housing, avoiding strain on internal wiring. Note that a lamp cutout mechanism is activated as soon as the assembly is moved from its normal...
  • Page 66 See "8.5.2: Lamp life and monitoring lamp hours" on page 63. Lamp alignment is factory-set. If after installing a new lamp the Exterior 1200 Image Projector has a noticeable hot-spot or dark area in the centre of the beam, or if the brightest part of the beam is significantly off-center, the lamp may need to be realigned.

  • Page 67: Removing The Effects/Lamp Module

    8.6 Removing the effects/lamp module The lamp/effects assembly can be removed completely from the luminaire for service or easier access. To remove this assembly: 1. Open the luminaire and pull the slider out as described in "8.5.3: Installing the lamp" on page 64.

  • Page 68: Installing A Filter In The Color Wheel

    Filters (including CTC filters and a diffuser filter) for the color wheel can be ordered from Martin Architectural if custom configuration is required. Note that the diffuser filter does not affect the beam angle but causes a slight reduction in luminous output.

  • Page 69: Installing A Rotating Gobo

    8.8 Installing a rotating gobo Standard or custom metal or glass rotating gobos can be installed in the Exterior 1200 Image Projector’s rotating gobo wheel. See Specifications on page 86 for dimensions, etc. Gobos are exposed to intense heat. See Figure 25. To optimize their lifetimes, it is...
  • Page 70 Check this carefully, or the goboholder may fall out of the gobo wheel during operation. 3. Slide the effects module back into Figure 29: Correct goboholder position the fixture and reinstall all covers before reapplying power. Exterior 1200 Image Projector user manual...

  • Page 71: Installing A Permanent Filter Kit

    8.9 Installing a permanent filter kit A permanent filterholder with integrated filter can be installed in the Exterior 1200 Image Projector effects module. This allows a CTC filter to be installed to match the luminaire’s color temperature with other luminaires. See Figure 30.

  • Page 72: Installing A Gobo Animation Wheel

    8.10 Installing a gobo animation wheel The gobo animation wheel in the Exterior 1200 Image Projector can be replaced to give alternative types of animation pattern. To replace the animation wheel: 1. Lock out power, open the luminaire and slide the effects module out of the housing as described in "8.5.3: Installing the lamp"...

  • Page 73: Alternative Lens Kits

    AC power and lock out power before replacing a fuse. The Exterior 1200 Image Projector is protected by two 15 amp slow blow main fuses (P/N 05020050) located in fuseholders behind the rear cover plate. One fuse protects the connection labelled “Live 1”, and one protects “Live 2”.

  • Page 74: Software-Based Service Functions

    Support area of the Martin website at http://www.martin.com If the Exterior 1200 Image Projector software needs to be updated, the software can be downloaded from the Martin website and then installed in the luminaire using a PC with the Martin Software Uploader application, also available free of charge from the Martin website.
  • Page 75 Uploading software to the luminaire To update software in an Exterior 1200 Image Projector, connect an upload device either to the DMX link the luminaire is on or to the luminaire’s RJ-45 service port located behind the rear cover plate.

  • Page 76: Troubleshooting

    Leave power applied for at least 8 minutes after switching off lamp to allow cooling fans to reduce temperature. Exterior 1200 Image Projector user manual...

  • Page 77: Accessories

    Martin Architectural as accessory kits. Installation instructions are included with each lens kit. If a new lens type is installed, the Exterior 1200 Image Projector will recognize the new lens when it is powered on and automatically configure itself to match the lens. Installing a different lens option is thus a ‘plug and play’...
  • Page 78 Exterior 1200 Image Projector user manual...

  • Page 79: Section 9. Reference

    Section 9. Reference Accessories...

  • Page 80: Connections Compartment

    B - AC power frequency setting jumper F - DMX connection terminals C - AC power voltage setting jumper G - Main fuseholders D - Main power on/off switch H - Main PCB (low voltage) fuseholder Exterior 1200 Image Projector user manual...

  • Page 81: Led Status Messages

    9.2 LED status messages LED 1 LED 2 Status Steady green Effects OK Steady green Data OK Waiting for data Steady red Invalid data / no data Steady red Steady red Display software being updated Waiting for upload or upload in Steady yellow Steady yellow progress...

  • Page 82: Onboard Control Panel Menus

    I n f o Displays currently installed optical Op t i c al s y st e m system (Narrow, Medium or Wide) Table 6: Onboard control panel menus Exterior 1200 Image Projector user manual...
  • Page 83 Menu Options Notes F ix t u r e r e se t Reset luminaire S et l a mp O n Turn on lamp S et l a mp O ff Turn off lamp St r o b e o f f No strobe No r m a l s t r ob e Regular strobe (speed 0 - 23)

  • Page 84: Dmx Protocol

    Gobo 1 rotation 120 - 129 47 - 51 Gobo 2 rotation 130 - 139 51 - 54 Gobo 3 rotation 140 - 255 55 - 100 Reserved: selecting this value has no effect Exterior 1200 Image Projector user manual...
  • Page 85 If DMX reset without confirmation is disabled in the control menus (P e rs o n al i t y → D M X R e s e t), the Exterior 1200 Image Projector can still be reset via DMX if confirmation is given by setting channels 4 (cyan), 5 (magenta) and 6 (yellow) to a value of 230 - 232.

  • Page 86: Exterior 1200 Image Projector Specifications

    16-bit control ............. Mechanical dimmer, rotating gobo indexing/speed, focus, zoom Stand-alone trigger options ..............Internal timer and/or ambient light level Stand-alone memory..........................20 scenes Stand-alone programming..................MUM, onboard control panel Protocol .............................USITT DMX-512A Receiver ..............................RS-485 Exterior 1200 Image Projector user manual...
  • Page 87 250 V, 50 Hz ........................1364 W, 5.6 A, PF 0.972 277 V, 60 Hz ........................1417 W, 5.4 A, PF 0.956 *Figures listed are typical, not maximum. Measurements taken at nominal voltage. Allow for +/- 10% variation. PF = Power factor. Exterior 1200 Image Projector specifications...
  • Page 88 Narrow lens kit ..........................P/N 91610083 Medium lens kit ..........................P/N 91610084 Wide lens kit............................P/N 91610085 Color, CTC and diffusion filters for color wheel .........Contact Martin Architectural for details Custom gobos ...................Contact Martin Architectural for details Alternative gobo animation wheels ............Contact Martin Architectural for details Permanent CTC filter kit................Contact Martin Architectural for details...
  • Page 89 Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), as amended by Directive 2003/108/EC, where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your ® supplier can give details of local arrangements for the disposal of Martin products.
  • Page 90 Notes...
  • Page 92 • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax +45 8740 0010...
