Planet WPG-130N User Manual

802.11n wireless pocket presentation gateway
Hide thumbs Also See for WPG-130N:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

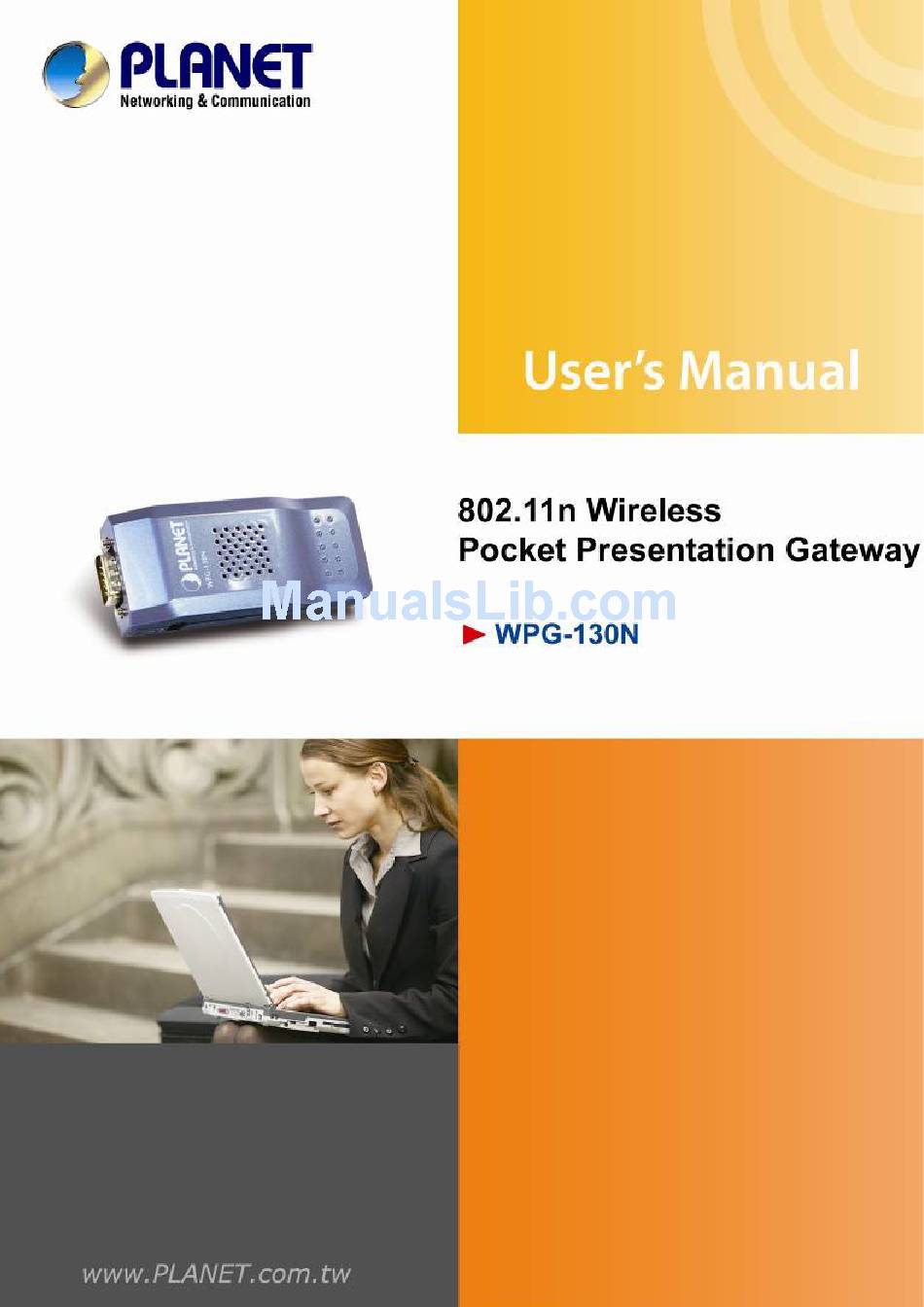

PLANET 802.11n Pocket Presentation Gateway
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WPG-130N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet WPG-130N

Summary of Contents for Planet WPG-130N

  • Page 1 PLANET 802.11n Pocket Presentation Gateway...

  • Page 2: Federal Communication Commission Interference Statement

    "as is". Should the programs prove defective following their purchase, the buyer (and not PLANET, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User Manual for PLANET 802.11n Pocket Presentation Gateway Model: WPG-130N Rev: 1.0 (September, 2011)

  • Page 4: Table Of Contents

    PLANET 802.11n Pocket Presentation Gateway Contents Chapter 1. Product Introduction................6 1.1 Package Contents ..................... 6 1.2 Product Description ..................6 1.3 Product Features....................8 1.4 Product Specification ..................8 Chapter 2. Hardware Installation ................10 2.1 Hardware Description ..................10 2.1.1. The Front Panel................10 2.1.2.
  • Page 5 PLANET 802.11n Pocket Presentation Gateway 5.2. Operation Guide ..................36 Appendix A: Configuring the PCs ................40 Appendix B - Mac OS X 10.x Quick Connection ...........44...

  • Page 6: Chapter 1. Product Introduction

    AP Client Mode You can enable the AP Client Mode function to make WPG-130N join the existing Access Point through Wi-Fi. This feature provides the flexibility of wireless network deployment in enterprise environment. The participants in the meeting can enjoy surfing the Internet and access Intranet all the time, even while wireless presentations are projecting.
  • Page 7 4-to-1 Split Screen Projection With this 4-to-1 split screen feature, WPG-130N supports up to four PC / Laptop screens can be projected to one projector in the same time. Thus the participants can easily do side-by-side comparison from four PC / Laptop to increase meeting efficiency.

  • Page 8: Product Features

    PLANET 802.11n Pocket Presentation Gateway 1.3 Product Features  Pocket Size, Easy Placement  802.11n AP-client Mode  Plug & Show  Supports PoVGA (Power over VGA)  4-to-1 Split Screen Projection  Web Browser Management  Windows XP / Vista / 7, Mac OS X support Multiple Users Access ...
  • Page 9 PLANET 802.11n Pocket Presentation Gateway Operation Mode AP (Access Point) AP-Client (Universal Repeater) Video Display Supported PC / Laptop SVGA (800x600) / XGA (1024x768) Resolution SXGA (1280x1024) / WXGA (1280x768) WSXGA (1440x900, 1600x1024) / UXGA (1600x1200) WUXGA (1920x1200) / QXGA (2048x1536) / Others...

  • Page 10: Chapter 2. Hardware Installation

    PLANET 802.11n Pocket Presentation Gateway Chapter 2. Hardware Installation Please follow the instructions below to build the wireless network connection between WPG-130N, display equipment and your computers. 2.1 Hardware Description 2.1.1. The Front Panel The front panel provides a simple interface monitoring the wireless presentation gateway.

  • Page 11: Led Indications

    Device initializing or system error Power Off 2.2 Hardware Connection Step 1. Please turn on your projector first, and connect the WPG-130N to the projector. Now you can power on WPG-130N. Figure 2-3 VGA Interface Connection Step 2. When the projector shows the default screen as below, it indicates WPG-130N is ready now.
  • Page 12 Step 3. User your laptop or desktop to site survey the wireless signal of WPG-130N, and connect your PC with it wirelessly. The default SSID is WPG-130N. Figure 2-5 Windows 7 Platform Wireless Site Survey Step 4.
  • Page 13 Figure 2-6 WPG-130N Web UI Screenshot Now you can configure the WPG-130N and download the client utility (WPG) of Windows 7/Vista/XP or Mac OS X via web UI. For further information of the configurations, please refer to the following chapters.

  • Page 14: Chapter 3. Windows Client Utility - Wpg

    PLANET 802.11n Pocket Presentation Gateway Chapter 3. Windows Client Utility – WPG 3.1. Starting Program After installing WPG utility downloaded from the web page of WPG-130N, please follow the steps below to start. Step 1. Click WPG-130N icon on the desktop to execute the problem.

  • Page 15: Control Panel

    PLANET 802.11n Pocket Presentation Gateway Figure 3-3 WPG Utility – Control Panel 3.2. Control Panel Figure 3-4 WPG Utility – Control Panel Function Introduction Button Description Button Description Start Full Screen Projection Project to Split No. 4 Project to Split No. 1 Stop projecting Project to Split No.

  • Page 16: Show Login Code

    10 seconds. You can also click on the area to close this window manually. Figure 3-5 3.2.2. Web Admin Click “Web Admin” to open the web UI page of WPG-130N. With regard to the web management UI page, please refer to the next chapter. Figure 3-6...

  • Page 17: Wifi Ap-Client Configuration

    PLANET 802.11n Pocket Presentation Gateway 3.2.3. WiFi AP-Client Configuration Click “WiFi AP-Client Configuration” to switch WPG-130N to AP client mode. It can join other access point wirelessly. Besides, the clients can also login WPG-130N for presentation and surf the Internet via other AP simultaneously.

  • Page 18: Projection Source

    After clicking the “Projection Source”, you can select to project the main screen of the desktop or the virtual extended screen. Figure 3-9 Main Screen When “Main Screen” is selected, WPG-130N will project out the main desktop screen. Virtual Extended When “Virtual Extended Screen” is selected, WPG-130N will Screen project out the virtual screen.

  • Page 19: Auto Wifi Connect

    PLANET 802.11n Pocket Presentation Gateway If the screen below appears during the installation of VDD in Windows XP, please click “Continue Anyway” button to continue. Figure 3-11 3.2.6. Auto WiFi Connect Click “Auto WiFi Connect” to enable the auto WiFi discovery and connection function for quick wireless connection established.

  • Page 20: Auto Power Manager

    PLANET 802.11n Pocket Presentation Gateway 3.2.7. Auto Power Manager If “Auto Power Manager” is enabled, WPG will turn the Windows Power Scheme from current settings to “High Performance” for getting the highest projection performance. However, you can still click it again to disable this function, and restore your power scheme immediately.

  • Page 21: Advanced Screen Capture

    PLANET 802.11n Pocket Presentation Gateway 3.2.9. Advanced Screen Capture If you enable “Advanced Screen Capture”, all the tip windows and other layered windows (include the main UI) will be projected to the projector screen. However, the mouse cursor may blink from time to time when it is projecting.

  • Page 22: Copy Application To Desktop

    PLANET 802.11n Pocket Presentation Gateway Figure 3-16 3.2.11. Copy Application to Desktop Click the “Copy Application to desktop”, then it will copy the WPG Utility to your desktop immediately even you don’t have the system privilege.

  • Page 23: Hot Key

    PLANET 802.11n Pocket Presentation Gateway Figure 3-17 3.2.12. Hot Key Click “Hot Key” to show the guide of hot key. You can use the hot key to control the projection by keyboard. Figure 3-18...

  • Page 24: About

    PLANET 802.11n Pocket Presentation Gateway 3.2.13. About Click “About” to show the system information. It includes the client version, server IP address, and login code. Figure 3-19 3.2.14. Exit Click “Exit” to exit the WPG utility. It will stop the current projection and close the application immediately.

  • Page 25: Chapter 4. Web Ui Management

    Please follow the steps below to enter the web UI of WPG-130N. Step 1. First, please connect your PC to WPG-130N wirelessly. Step 2. Open the web browser and it will redirect to WPG-130N home page automatically. Or you can enter the default IP address http://192.168.1.1...

  • Page 26: Download

    Figure 4-3 4.2. Admin This function allows you to login web management UI of WPG-130N. Click “Admin”, and enter the password. The default value is “admin”. Then click the Login button or press the Enter key. Please refer to the following sections for further configuration of the web management UI.

  • Page 27: System Status

    PLANET 802.11n Pocket Presentation Gateway Figure 4-4 Default IP Address: 192.168.1.1 Default Password: admin After entering the password, the main screen appears as Figure 4-5 4.3.1. System Status In this page can show the current status and some basic settings of the presentation gateway.

  • Page 28: Network Setup

    Description Product model name Model Name Firmware Version Product firmware version number Network Status IP Address The IP address of WPG-130N Subnet Mask The subnet mask Default Gateway The default gateway The wireless MAC address Wireless MAC Address Wire MAC Address...
  • Page 29 If you select this option, the WPG-130N will detect the network automatically environment automatically. When WPG-130N is connected to a LAN that has DHCP server, the clients of WPG-130N will be assigned an IP by that server and the built-in DHCP server of WPG-130N will be...
  • Page 30 Region The default value is “Worldwide”. The default value is “Enable”. SSID Broadcast If you select “Auto”, the WPG-130N will scan all of the wireless Channel channels and choose a clear one automatically. Or you can select a fixed channel.

  • Page 31: Osd Setup

    PLANET 802.11n Pocket Presentation Gateway The wireless security of WPG-130N supports AES (Advanced Encryption Standard) encryption. Click the Apply button to make the changes to take effect. 4.3.3. OSD Setup Users can customize their own OSD (on-screen display) standby image.

  • Page 32: Projection Setup

    PLANET 802.11n Pocket Presentation Gateway 4.3.4. Projection Setup Figure 4-9 Object Description Resolution VGA: WXGA+ (1280x800) WXGA (1280x768) XGA (1024x768) (Default setting) SVGA (800x600). HDMI: 720p (1280x720) Login Code You can select “Disable”, “Random”, or “Use the following code” to set a specified 4-characters Number.

  • Page 33: Reset To Default

    Click the Apply button to make the changes to take effect. 4.3.6. Reset to Default This page allows you to reset the current configuration to factory default. Figure 4-11 Click the Apply button to restore the WPG-130N to the factory default settings.

  • Page 34: Firmware Upgrade

    PLANET 802.11n Pocket Presentation Gateway 4.3.7. Firmware Upgrade This page allows you upgrade the WPG-130N firmware to new version. Please note, do not power off the device during the upload because it may crash the system. Figure 4-12 If it is necessary to upgrade the firmware, please follow the steps below to operate carefully.

  • Page 35: Reboot System

    PLANET 802.11n Pocket Presentation Gateway New firmware versions posted at the website of PLANET Technology can be downloaded for free. There is no need to upgrade the firmware unless the new firmware has a new feature you want to use.

  • Page 36: Chapter 5. Windows Mobile 5/6 Utility

    PLANET 802.11n Pocket Presentation Gateway Chapter 5. Windows Mobile 5/6 Utility The WPG-130N supports Windows Mobile 5/6 smart phone as clients. The Mobishow utility for it can be found in the attached CD-ROM. 5.1. Install Mobishow Please follow the steps below to install the Mobishow utility from the CD-ROM attached in the package.

  • Page 37: Screen Projection

    PLANET 802.11n Pocket Presentation Gateway Step 3. Select the SSID of WPG-130N to connect to. The default SSID is WPG-130N. Step 4. Enter the login code to the smart phone. The login code can be found on the projector screen. Then the main screen will appear.
  • Page 38 PLANET 802.11n Pocket Presentation Gateway Figure 5-3 Click the “Play” icon to start projection again if it is stopped. Click the “Stop” icon to stop projection. Click the “Pause” icon to pause projection. Click “Pause” again to resume projection. Click the “Zoom” icon to zoom the projected screen to extend the longest side of your screen.
  • Page 39 PLANET 802.11n Pocket Presentation Gateway Photo Via MobiShow, you can project the photos stored in your smart phone to the big projector screen. The photos will be prepared for playback on big screens rather than for the tiny screens of your phone.

  • Page 40: Appendix A: Configuring The Pcs

    PLANET 802.11n Pocket Presentation Gateway Appendix A: Configuring the PCs In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed.
  • Page 41 PLANET 802.11n Pocket Presentation Gateway Figure A-2 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below:  Setting IP address automatically...
  • Page 42 PLANET 802.11n Pocket Presentation Gateway Figure A-3  Setting IP address manually Select Use the following IP address radio button. If the device's LAN IP address is 192.168.1.1, type in IP address 192.168.1.x (x is from 2 to 254), and Subnet mask 255.255.255.0.
  • Page 43 PLANET 802.11n Pocket Presentation Gateway Figure A-4 Now click OK to keep your settings.

  • Page 44: Appendix B - Mac Os X 10.X Quick Connection

    The AirPort Network Connection menu will appear Figure B-1 Step 2: Highlight and select the wireless network (SSID) to connect (1) Select and SSID [WPG-130N] (2) Double-click on the selected SSID Figure B-2 Step 3: Enter the encryption key of the Wireless Router (1) Enter the encryption key that configured in section 4.3.2...
  • Page 45 Step 4: Check if the AirPort is connect to the selected wireless network. If “Yes”, then there will be a “check” symbol in the front of the SSID. Step 5: Open the web browser and it will redirect to WPG-130N home page automatically. Or you can enter the default IP address http://192.168.1.1...
  • Page 46 PLANET 802.11n Pocket Presentation Gateway Figure B-5 Step 6: Click “Download”. Figure B-6 Step 7: Choose the WPG utility for “Mac OS X”, then click Download button and execute the installation program.
  • Page 47 Step 5. WPS-Pro will start to search the available access points automatically if you have not connected your MAC to WPG-130N manually. When the WPG-130N is displayed in the list, please click it to connect and then enter the Login Code shown on the projector screen.
  • Page 48 PLANET 802.11n Pocket Presentation Gateway Figure B-9...
  • Page 49 *Model Number: WPG-130N * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) is herewith confirmed to comply with the requirements set out in the Council Directive on the 1999/5/EC R&TTE.
