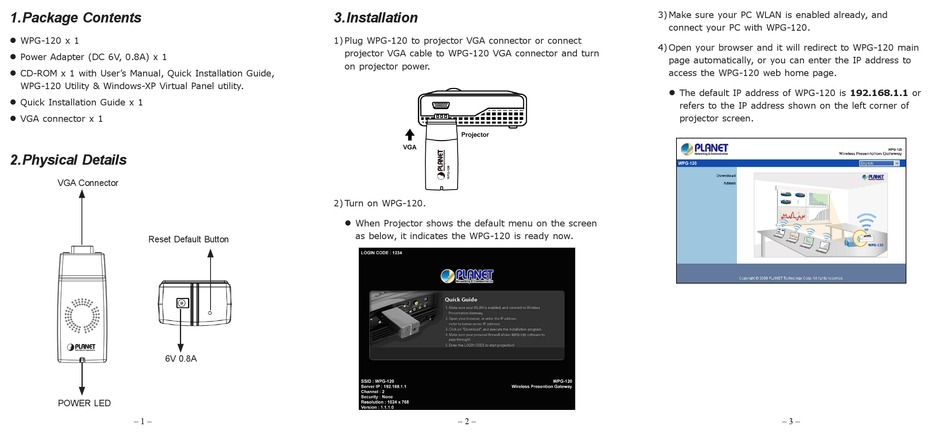

1. P ackage Contents
WPG-120 x 1
l
Power Adapter (DC 6V, 0.8A) x 1
l
CD-ROM x 1 with User's Manual, Quick Installation Guide,
l
WPG-120 Utility & Windows-XP Virtual Panel utility.
Quick Installation Guide x 1
l
VGA connector x 1
l
2. P hysical Details
VGA Connector
Reset Default Button
6V 0.8A
POWER LED
– 1 –
3. I nstallation
1) Plug WPG-120 to projector VGA connector or connect
projector VGA cable to WPG-120 VGA connector and turn
on projector power.
2) Turn on WPG-120.
When Projector shows the default menu on the screen
l
as below, it indicates the WPG-120 is ready now.
– 2 –
3) Make sure your PC WLAN is enabled already, and
connect your PC with WPG-120.
4) Open your browser and it will redirect to WPG-120 main
page automatically, or you can enter the IP address to
access the WPG-120 web home page.
The default IP address of WPG-120 is 192.168.1.1 or
l
refers to the IP address shown on the left corner of
projector screen.
– 3 –
