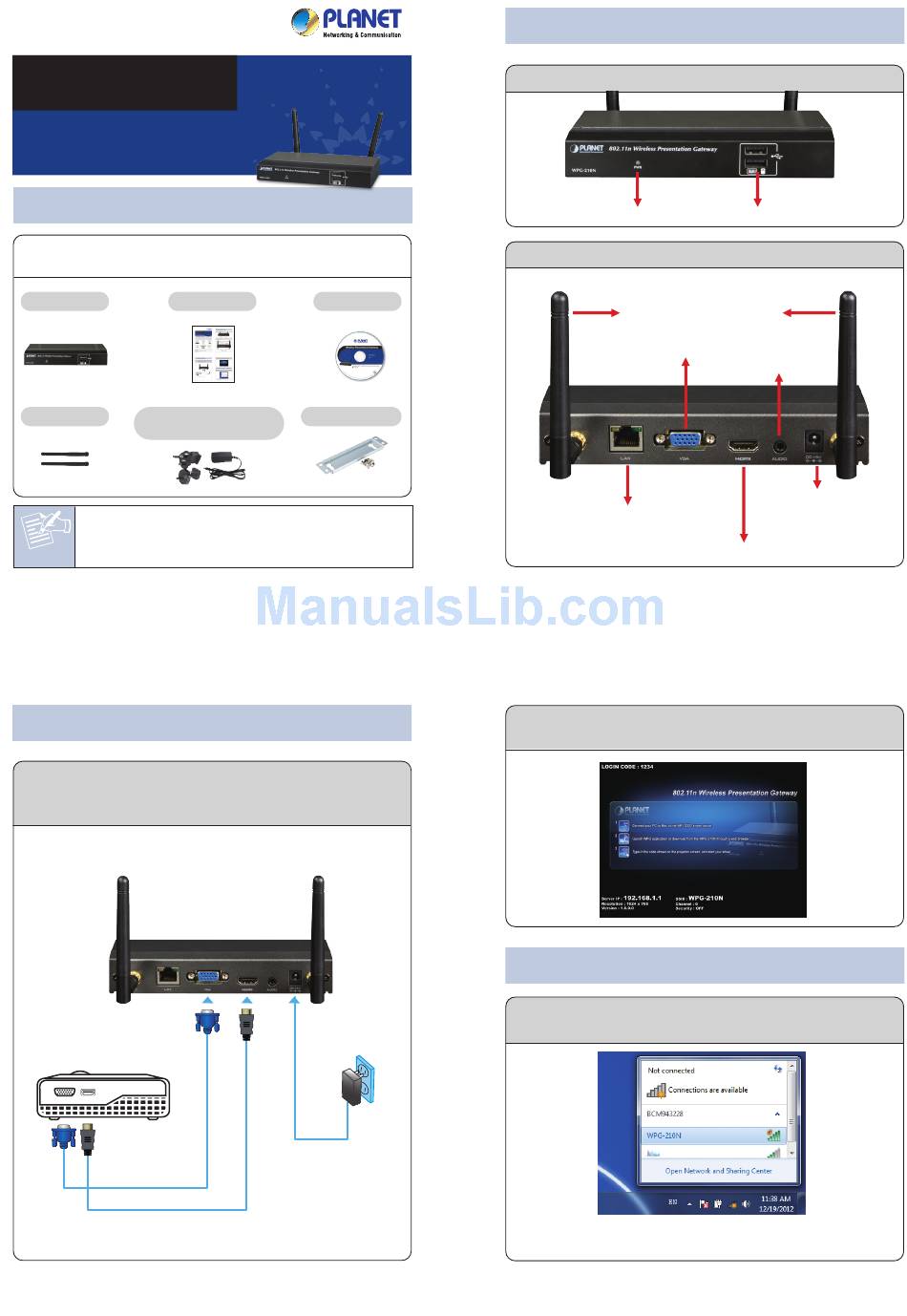

Planet WPG-210N Quick Installation Manual

Quick Installation Guide
WPG-210N

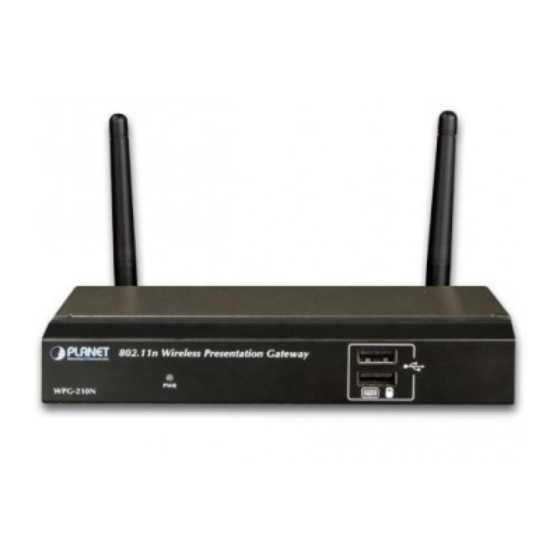

802.11n Wireless
Presentation Gateway

1. Package Contents

Thank you for choosing PLANET WPG-210N. Before installing
the device, please verify the contents inside the package box.
WPG-210N Quick Guide
Antenna x 2
Power Adapter &
World-Wide Adapter Set
If there is any item missed or damaged, please
contact the seller immediately.
Note

3. Hardware Installation

Step 1: Please turn on your projector first, and connect HDMI
or D-sub cable of the projector to WPG-210N. Now
you can power on WPG-210N.
VGA
HDMI
CD-ROM
Wall-mount Kit
– 1 –
Power
Power
Adapter
– 3 –

2. Physical Introduction

Front Panel Description
Power LED
Rear Panel Description
2 dBi Detachable Antenna x 2
15 Pin D-Sub VGA Port
(Connect to the projector)
LAN Port
(Connect to a client PC of Ethernet)
HDMI Port
(Connect to the projector)
Step 2: When the projector shows the default screen as
below, it indicates WPG-210N is ready now.
4. Software Installation – Windows
Step 1: Site survey the wireless signal of WPG-210N, and
connect your PC with it wirelessly.
* The connection information (SSID) can be found from the
projector screen.
2 x USB
Audio Out
(Connect to speaker
or headphone)
Power Connector
(5V DC Input)
– 2 –
– 4 –
