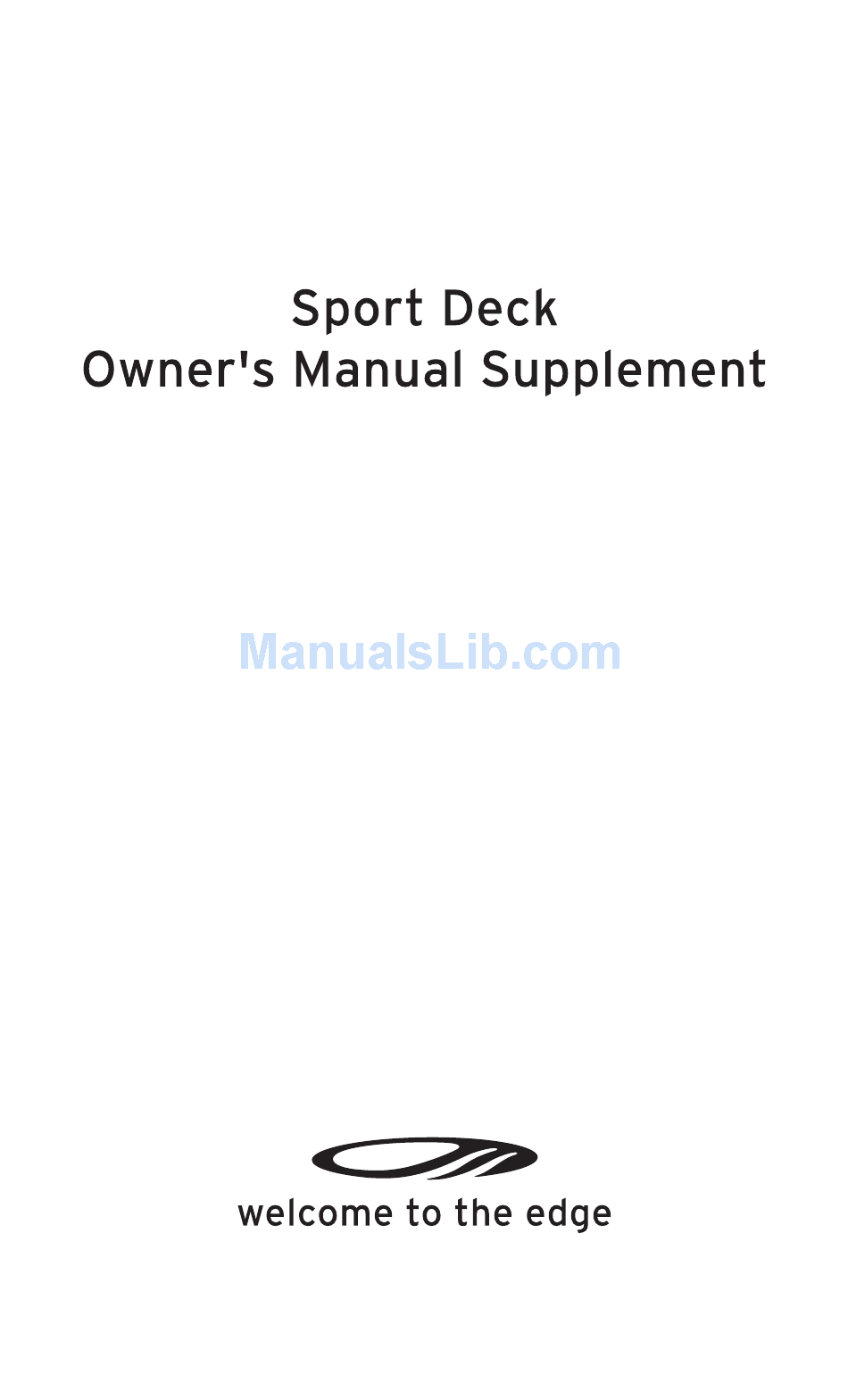

Maxum Sport Deck Owner's Manual Supplement

Sport deck maxum
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Maxum Sport Deck

Summary of Contents for Maxum Sport Deck

  • Page 3: Hull Identification Number

    Maxum. This document is to be returned upon request to Maxum. General Notes The material in this document is for information only and is subject to change without notice.

  • Page 4: Table Of Contents

    CONTENTS CHAPTER 1: ABOUT THIS MANUAL Dealer Service About Your Limited Warranty Boating Experience Engine & Accessories Guidelines Qualified Maintenance Special Care For Moored Boats Safety Standards Carbon Monoxide (CO) Sources of CO Warning Labels Warning Label Locations Hazard Warning Symbols CHAPTER 2: FEATURES / SYSTEMS Helm Console Keyless Ignition...
  • Page 5 Navigation and Interior Lights Depth Finder Anchoring Ski Tow Ring Hull Exterior Hardware & Drains Quick Oil Drain System Fuel System 22 Fuel Fills and Vents 22 Fuel Filters Bilge Blower Bilge Pump 25 Autofloat Switch Fresh Water System Marine Head With Dockside Pump-out Portable Toilet Canvas Top Tonneau Cover (if equipped)

  • Page 7: Chapter 1: About This Manual

    • Buy replacement parts from any authorized Maxum dealer. About Your Limited Warranty • Maxum offers a Limited Warranty on each new Maxum purchased through an authorized Maxum dealer. • A copy of the Limited Warranty was included in your owner’s packet.

  • Page 8: Engine & Accessories Guidelines

    Follow the instructions provided in the Sport Boat Owner’s Man- ual, this Owner’s Manual Supplement, the engine owner’s manual and all accessory instruction sheets/manuals included in your boat’s owner’s packet. Sport Deck • Owner’s Manual Supplement...

  • Page 9: Special Care For Moored Boats

    PERSONAL SAFETY HAZARD! Always secure the anchor and other loose objects before getting underway. The anchor and other items that are not properly secured can come loose when the boat is moving and cause personal injury or death. Sport Deck • Owner’s Manual Supplement...

  • Page 10: Carbon Monoxide (Co)

    Factors increasing the effects of CO include: • Age. • Smokers or people exposed to high concentrations of cigarette smoke. • Consumption of alcohol. • Lung disorders, heart problems, and pregnancy. Sport Deck • Owner’s Manual Supplement...

  • Page 11: Sources Of Co

    • Trim the bow down. • Open windows and canvas. • When possible, run the boat so that the prevailing winds will help dissipate the exhaust. IMMEDIATELY take corrective action when CO is detected or suspected. Sport Deck • Owner’s Manual Supplement...

  • Page 12: Warning Labels

    Maxum Marine dealer for a replacement. Warning Label Locations NOTE: LOCATIONS OF WARNING LABELS MAY BE DIFFERENT THAN INDICATED. FLAMMABLE LIQUIDS STORAGE WARNING BOARDING LADDER WARNING POTABLE WATER WARNING FUEL WARNINGS BOARDING LADDER WARNING DOCKING SYSTEM WARNINGS (IF EQUIPPED) Sport Deck • Owner’s Manual Supplement...
  • Page 13 CHAPTER 1: ABOUT THIS MANUAL Warning Label Locations, continued QUALIFIED DOCKING SYSTEM EMERGENCY BLOWER OPERATOR SYSTEM WARNING SHUTDOWN WARNING WARNING (IF EQUIPPED) WARNING MAXIMUM CAPACITY WARNING Sport Deck • Owner’s Manual Supplement...

  • Page 14: Hazard Warning Symbols

    NOTICE This message box calls attention to installation, operation or maintenance information, which is important to proper operation but is not hazard related. Sport Deck • Owner’s Manual Supplement...

  • Page 15: Chapter 2: Features / Systems

    The Enter a new 4 digit user code followed by the Unlock LED start button. turns off. Repeat step 3. The unlock LED will light steadily and the system will be in accessory mode. Sport Deck • Owner’s Manual Supplement...

  • Page 16: Touch Panel Controls

    • Press the button once - Control Max System turns on. • Press a second time - Control Max System turns off. Blower • Press the button once - Blower turns on. • Press a second time - Blower turns off. Sport Deck • Owner’s Manual Supplement...
  • Page 17 The touch panel backlight will turn on for 10 seconds when any button is pressed. The backlight will also turn on when the navigation lights are on. Sport Deck • Owner’s Manual Supplement...

  • Page 18: Dash Programming

    M and S Clock M and S Depth, Ft/M Distance Log M and S Trip Log To Reset to 0.0 Total Hours M and S Trip Hours To Reset to 0.0 Seawater Temp (option) Sport Deck • Owner’s Manual Supplement...
  • Page 19 Trip logs to km (kilometers) and Seawater Temp (option) to C (centigrade) Note If you see ProG on the display you have entered the programming mode. Turn the key off to exit. Do not change programmed values. Sport Deck • Owner’s Manual Supplement...

  • Page 20: Electrical System (12 Volt Dc)

    • The battery charging systems (alternators and battery charger) are designed to charge conventional lead-acid batteries. Before installing gel- cell (or other new technology) batteries, read and follow the battery charger’s operating instructions. Sport Deck • Owner’s Manual Supplement...

  • Page 21: Battery Shutoff Switch Key

    AND ELECTRONIC CONTROL MODULE starboard storage area. Please read the electrical section of the Sport Boat Owner’s Manual for important safeguards concerning your boat’s circuit breakers. Some equipment may have secondary fuse protection at the unit Sport Deck • Owner’s Manual Supplement...

  • Page 22: Control Max Docking System Electrical Components (If Equipped)

    Controls THROTTLE CABLE Read and understand SHIFT CABLE the Controls section of both the Sport Boat Owner’s Manual and engine man- ual, provided in the owner’s STEERING packet. CABLE SHIFT/THROTTLE LEVER Sport Deck • Owner’s Manual Supplement...

  • Page 23: Control Max Docking System (If Equipped)

    If your boat is equipped with the Control Max Docking System, read and under- stand the Mercury Docking System Operation, Maintenance & Warranty Manual. Carefully follow all cautions and warnings. Control Max Docking System Thruster Control JOYSTICK JOYSTICK JOYSTICK JOYSTICK JOYSTICK JOYSTICK Sport Deck • Owner’s Manual Supplement...

  • Page 24: Control Max Warning Labels

    CAUTION! • Conserve battery power. Prolonged operation of cabin interior lights (overnight) will result in a drained battery. • Avoid the storage of gear where it would block navigation lights from view. Sport Deck • Owner’s Manual Supplement...

  • Page 25: Depth Finder

    Ski Tow Ring Your boat may be equipped with a ski SKI TOW RING tow ring. Attach the tow rope as shown in the photo (right.) SKI TOW ROPE Sport Deck • Owner’s Manual Supplement...

  • Page 26: Hull Exterior Hardware & Drains

    (IF EQUIPPED) BILGE PUMP CONTROL MAX DRAIN THRUSTER TUNNEL (IF EQUIPPED) STERN EYES TRANSOM LADDER TYPICAL TRANSOM CONTROL MAX CONTROL MAX THRUSTER TUNNEL THRUSTER TUNNEL (IF EQUIPPED) (IF EQUIPPED) GARBOARD TRANSOM PLATFORM SUPPORTS DRAIN Sport Deck • Owner’s Manual Supplement...

  • Page 27: Quick Oil Drain System

    Replace the garboard drain plug. Always dispose of waste oil in accordance with local regulations. QUICK OIL DRAIN SYSTEM OIL DRAIN HOSE TRANSOM OIL DRAIN PLUG ENGINE OIL PAN GARBOARD DRAIN PLUG DRAW CORD BILGE GARBOARD DRAIN Sport Deck • Owner’s Manual Supplement...

  • Page 28: Fuel System

    Consult your selling dealer or local marina concerning fuel additives that help to prevent fungus or buildup in your fuel tanks. FUEL SYSTEM FUEL TANK VENT FUEL FEED HOSE TO ENGINE DECK FITTING FUEL FILL FUEL TANK Sport Deck • Owner’s Manual Supplement...

  • Page 29: Bilge Blower

    To ensure fresh air circulation, use the bilge blower for at least four minutes before starting the engine, during starting, and while running the boat below cruising speed. BLOWER SYSTEM TO AFT DECK VENTS BLOWER AIR FLOW Sport Deck • Owner’s Manual Supplement...

  • Page 30: Bilge Pump

    POWER CARTRIDGE clockwise. SLOT To ensure proper reinstallation of the (TYPICAL) power cartridge, attempt to twist the fins OUTER HOUSING counterclockwise without lifting the tab: The cartridge should stay in place. FIG. 2 Sport Deck • Owner’s Manual Supplement...
  • Page 31 NOTICE Discharge of oil, oil waste or fuel into navigable waters is prohibited by law. Vio- lators are subject to legal action by the local authorities. Sport Deck • Owner’s Manual Supplement...

  • Page 32: Fresh Water System

    PUMP AND FILTER AFT DECK THROUGH FLOOR OF SKI LOCKER WATER TANK FILL DECK FITTING WATER TANK VENT WATER TANK PULL-OUT SPRAYER HEAD WATER FILTER WATER PUMP TO PULL-OUT SPRAYER HEAD AT BOW (OPTION) Sport Deck • Owner’s Manual Supplement...

  • Page 33: Portable Toilet

    VENT FITTING VENT HOSE GUNNEL FLANGE MARINE HEAD Portable Toilet Your boat may feature a portable toilet. Read and follow the manufacturer’s operat- ing instructions supplied in your owner’s packet before using your portable toilet. Sport Deck • Owner’s Manual Supplement...

  • Page 34: Canvas Top

    Canvas tops are not designed for highway speeds. Before towing, take down and securely stow the convertible top, side curtains and back cover. WINDSHIELD HINGE SECURING PIN END EYE SECURING PIN DECK HINGE JAW SLIDE Sport Deck • Owner’s Manual Supplement...

  • Page 35: Tonneau Cover (If Equipped)

    A tonneau cover is available for your boat. To attach the cover, start at the front. The Tonneau cover can be attached with the canvas top in the arch position. CANVAS TOP FOLDED IN ARCH POSITION WITH TONNEAU COVER INSTALLED Sport Deck • Owner’s Manual Supplement...

  • Page 36: Chapter 3: Electrical Routings

    12 VOLT RECEPTACLE DOME COURTESY LIGHT LIGHT SPEAKER SPEAKER WATER PUMP 12 VOLT RECEPTACLE SHIFTER FIRE SYSTEM STERN COURTESY (OPTION) LIGHT LIGHT STEREO MEMORY SPEEDO FUEL FILL GROUND TRIM ENGINE PUMP PLUG GROUND DECK PLUG Sport Deck • Owner’s Manual Supplement...

  • Page 37: Hull Routing

    FLOAT SWITCH FUEL TANK GROUND ON BATTERY BATTERY SWITCH POSITIVE TERMINAL ON BATTERY Control Max System Battery Connections (if equipped) 3 X 12 VOLT BATTERIES CONTROL CIRCUIT TO CONTROL BREAKER MAX HARNESS GROUND ON ENGINE Sport Deck • Owner’s Manual Supplement...

  • Page 38: Chapter 4: Wiring Diagrams

    CHAPTER 4: WIRING DIAGRAMS 12 Volt DC System Sport Deck • Owner’s Manual Supplement...

  • Page 39: Control Max System (If Equipped)

    CHAPTER 4: WIRING DIAGRAMS Control Max System (if equipped) = CONNECTION = FUSE = BATTERY DASH SWITCH DASH PLUG PORT STBD FUEL FUEL FILL TRIM PUMP GROUND ANCHOR LIGHT Sport Deck • Owner’s Manual Supplement...
  • Page 40 Owner’s Notes...
  • Page 41 Owner’s Notes...
  • Page 42 Owner’s Notes...
