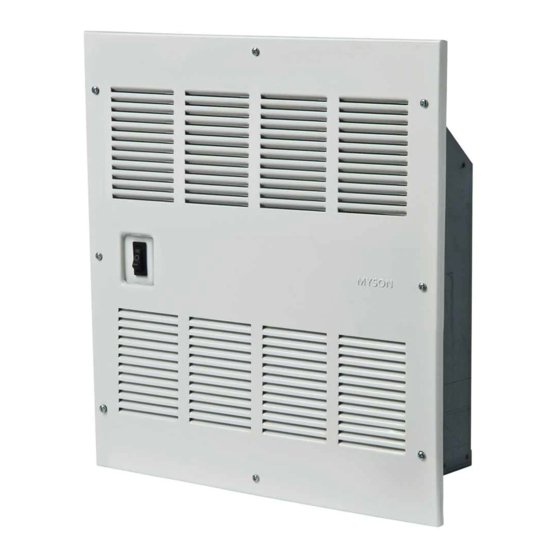

- Page 1 Installation, Operating, Maintenance and After Sales Manual. WHISPA III ® 5000 WM & 9000 WM heatingthroughinnovation. Product Serial Number: Installation Date: Part Number: 1371054 Tested to UL & CSA Standards Issue 1...
-
Page 2: Table Of Contents
Contents General Information Heating System Design Selection and Sizing for Heating Location Preparation Electrical Connection Water Connection Technical Data Operating Instructions 10.0 Troubleshooting 11.0 Maintenance... -
Page 3: General Information
® WHISPA III 5000 WM & 9000 WM 1.0 General Information G This MYSON recessed wall mounted WHISPA III G In heating mode a low limit thermostat prevents the fan from ® convector is designed for recessed wall applications where operating if the heating system water temperature is below the use of surface mounted units would not be appropriate. -
Page 4: Electrical Connection
® WHISPA III 5000 WM & 9000 WM 5.0 Preparation (continued...) G The WHISPA III ® wall units are designed so that the piping model may require re-framing of the opening to ensure and wiring connections are made within the cabinet of the proper support. - Page 5 ® WHISPA III 5000 WM & 9000 WM 7.0 Water Connection (continued...) G Once the connections to the heating loop are complete, open G When the operation of the unit has been tested, align and the necessary valve(s) to fill the system. secure the front cover (eight screws), see Fig 3.
-
Page 6: Technical Data
® WHISPA III 5000 WM & 9000 WM 8.0 Technical Data Heating Performance Data Heat Output (Btu/h) Flowrate Model Fan Setting Entering Water Temperature (°F), Entering Air Temperature (65°F) (US gpm) Boost 2040 2516 2997 3480 3967 4457 4949 5443 5939 6437 Normal... -
Page 7: Troubleshooting
Vent air from heating system unit cycles on low limit thermostat If the fan convector is still faulty after checking the above, call your installer or MYSON. Common Installation Faults heat, and the heating system must be correctly designed to provide adequate flow of hot water to the unit (see Section 2). - Page 8 MYSON Inc. 948 Hercules Drive, Suite 5, Colchester, Vermont VT05446 (802) 654-7500, (802) 654 7022, info@mysoninc.com, www.mysoninc.com heatingthroughinnovation.
