Myson 7-4 Installation, Operating, Maintenance And After Sales Manual

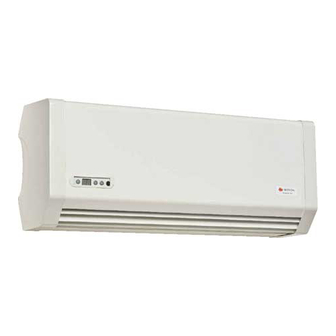

Hi-line rc & hi-line rc heater/cooler
Hide thumbs Also See for 7-4:

Advertisement

Table of Contents

See also: User Manual , Installation and Maintenance Manual

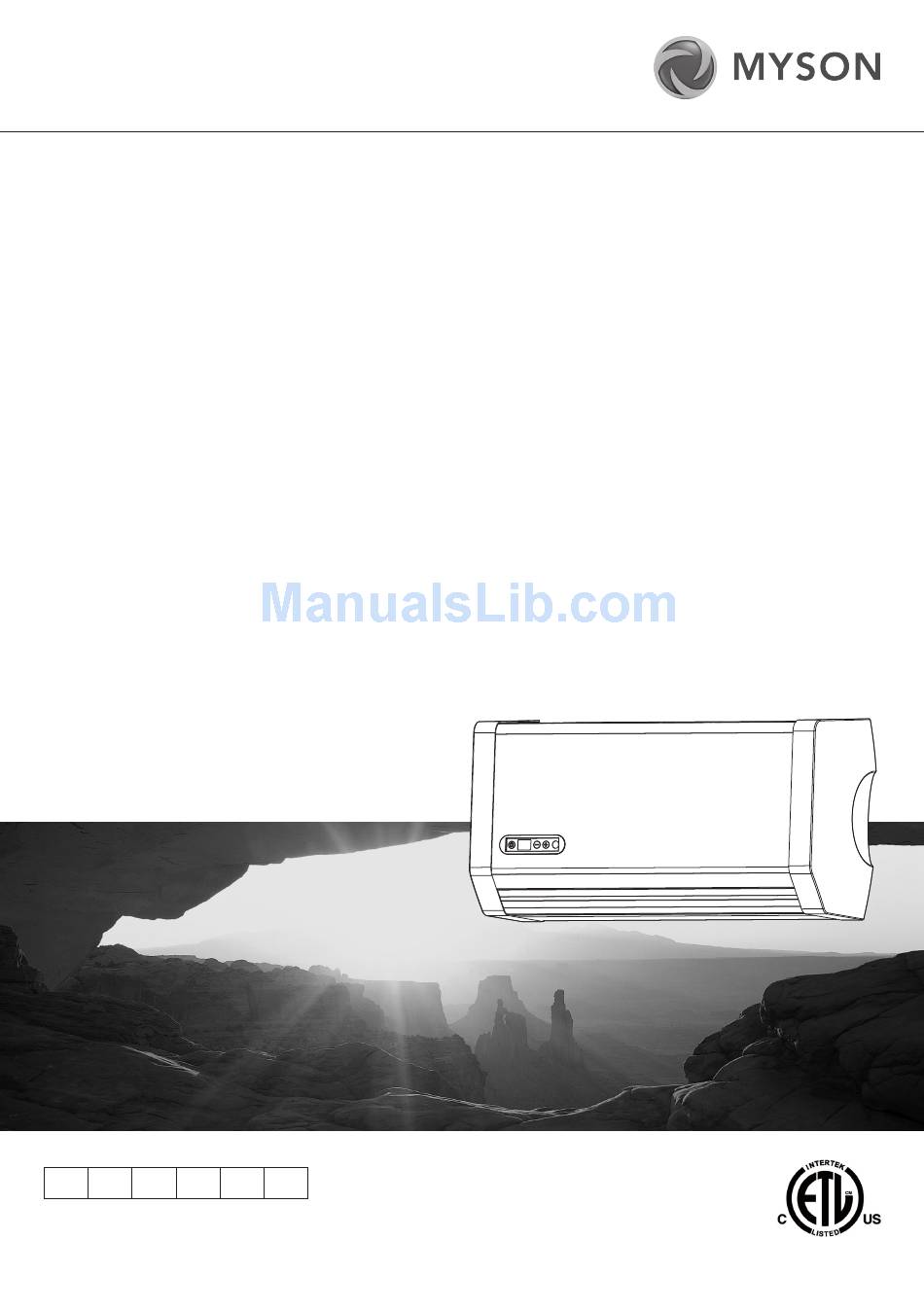

Installation, Operating, Maintenance
and After Sales Manual.
HI-LINE RC & HI-LINE RC Heater/Cooler
Models: 7-4, 10-6, 15-10, 20-14
heatingthroughinnovation.
Product Serial Number:
Please leave this manual with the end user.
Part Number: 1371052
Issue 2
Tested to UL & CSA Standards

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Myson 7-4

Summary of Contents for Myson 7-4

  • Page 1 Installation, Operating, Maintenance and After Sales Manual. HI-LINE RC & HI-LINE RC Heater/Cooler Models: 7-4, 10-6, 15-10, 20-14 heatingthroughinnovation. Product Serial Number: Please leave this manual with the end user. Part Number: 1371052 Tested to UL & CSA Standards Issue 2...

  • Page 2: Table Of Contents

    Contents General Information Heating System Design Unit Selection/Sizing Location Preparation Fixing Water Connections Electrical Connection Commissioning Procedure 10.0 Technical Data 11.0 Operating Instructions 12.0 Troubleshooting 13.0 Maintenance...

  • Page 3: General Information

    HI-LINE RC & HI-LINE RC Heater/Cooler 1.0 General Information l This MYSON HI-LINE RC fan convector is designed for design must be considered and the unit correctly sized to meet the heat loss requirements of the room at normal fan wall-mounted installation with a maximum installation height of 7ft to the underside of the unit.

  • Page 4: Preparation

    HI-LINE RC & HI-LINE RC Heater/Cooler 5.0 Preparation Before proceeding with the installation, unpack the carton contents and check against the checklist below: 1. HI-LINE RC fan convector. inch isolating valves (1 pair). 3. Instruction manual. 4. Fixing kit (rubber mounts and cable gland). 5.

  • Page 5: Water Connections

    HI-LINE RC & HI-LINE RC Heater/Cooler 7.0 Water Connections l Connect unit to system flow and return pipes using the two Note: External pipe-work carrying chilled water must be insulated. Use a suitable sealant as necessary to ensure that inch isolating valves (see fig. 3). condensate does not spill or leak.

  • Page 6: Electrical Connection

    HI-LINE RC & HI-LINE RC Heater/Cooler 8.0 Electrical Connection WARNING: This appliance must be grounded. The electrical installation must comply with state and local codes. l This unit is supplied with a factory fitted 3 core cord, 6ft in length, with moulded plug. l A suitable socket outlet with isolating switch must be available, or fitted to supply the HI-LINE.

  • Page 7: Commissioning Procedure

    HI-LINE RC & HI-LINE RC Heater/Cooler 9.0 Commissioning Procedure l Fill and vent the system. l Refit outer cover. l Open both valves fully and check for leaks at pipe connections. l Switch on electrical supply. l Refit the outer case and secure using the 2 fixing screws. Fan Pulse l Switch on electrical supply.

  • Page 8: Technical Data

    HI-LINE RC & HI-LINE RC Heater/Cooler 10.0 Technical Data Heating Performance Data Heat Output (Btu/h) Model Fan Setting Entering Water Temperature (°F), entering air temperature 65°F Boost 7870 9717 11582 13461 15354 17257 19171 21094 23026 24965 20-14 Medium 7030 8685 10357 12043...

  • Page 9: Operating Instructions

    HI-LINE RC & HI-LINE RC Heater/Cooler 11.0 Operating Instructions Description that air circulation can be provided in summer for example, or that heating performance can be controlled manually. This HI-LINE unit is fitted with a control system that provides In manual mode, with water temperature control, any of the 3 either automatic or manual control of the unit.

  • Page 10: Troubleshooting

    An apparent problem with this unit may be the result of system controls being incorrectly set and can be solved easily without calling out your installer or MYSON. Before calling your installer or MYSON, please carry out the checks listed opposite.

  • Page 11: Maintenance

    If the fan convector is still faulty after checking the above, call your installer or MYSON. Common Installation Faults heat, and the heating system must be correctly designed to provide adequate flow of hot water to the unit (see Section 2).
  • Page 12 MYSON Hercules Drive, Suite 4904, Colchester VT0446 802 654 7500, 802 654 7022, info@mysoninc.com, www.mysoninc.com heatingthroughinnovation.

This manual is also suitable for:

10-615-1020-14
