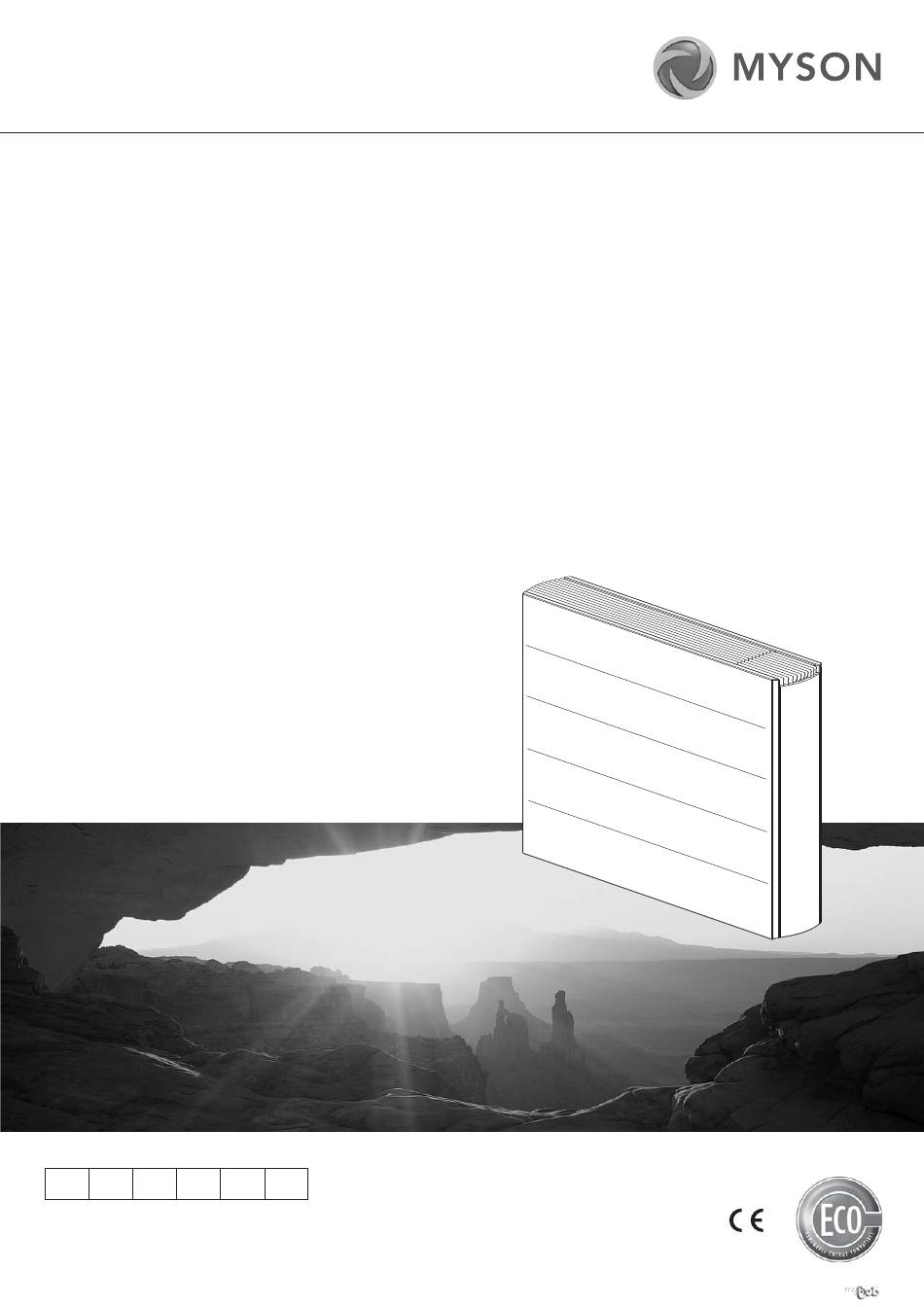

- Page 1 Installation, Operating, Maintenance and After Sales Manual. iVECTOR Heater/Cooler Models: iV080, iV100, iV120, iV140, iV160 heatingthroughinnovation. Product Serial Number: Please leave this manual with the end user. Part Number: 1370067 Issue 1 For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk 0844 556 1818...
-
Page 2: Table Of Contents
Contents Introduction Warnings & Safety Measures Heating System Design Unit Selection/Sizing Location Preparation Fixing Water Connection Electrical Connection 10.0 Commissioning Procedure 11.0 Technical Data 12.0 Control System Set-up and Operating Instruction 12.1 Unit Operation 12.2 Operating Modes 12.3 Installer’s Set-up Parameters 12.4 Building Management System Input Set-up 12.5 Program Mode 13.0... -
Page 3: Introduction
iVECTOR Heater/Cooler 1.0 Introduction This heater/cooler fan convector is designed for use on The unit is fitted with a washable air filter that can be easily central heating systems or heating and cooling systems in removed for cleaning. homes and commercial environments. Models are available A range of accessories are available for this product including with 2 connections. -
Page 4: Unit Selection/Sizing
iVECTOR Heater/Cooler 3.0 Heating System Design (continued...) Minimum Pipe Size (mm) Model (2 pipe units) iV080 iV100 iV120 iV140 iV160 * 8m max recommended pipe run. Increase pipe diameter if longer run is needed. ** 4m max recommended pipe run. Increase pipe diameter if longer run is needed. Note: A pressure independent balancing and control valve is available for this product as an accessory. -
Page 5: Preparation
iVECTOR Heater/Cooler 6.0 Preparation Before proceeding with the installation, remove the carton lid, unpack the contents carefully and check against the checklist below: 1. Heater Cooler unit (chassis) 2. Outer Casing 3. Warranty Card 4. Instruction Manual 5. Fixing kit Check contents for concealed shipping damage. -
Page 6: Fixing
iVECTOR Heater/Cooler 7.0 Fixing NOTE: Do not replace outer cover until connection to system and connection to electrical supply has been completed. For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk 0844 556 1818... -
Page 7: Water Connection
iVECTOR Heater/Cooler 8.0 Water Connection Connect the unit to the flow and return pipes. Pipe-work can be needed and can be removed by unscrewing the two bracket routed from the floor or through the wall at the back of the unit. fixing screws. -
Page 8: Electrical Connection
iVECTOR Heater/Cooler 8.0 Water Connection (continued...) How to bleed/vent Condensate drain connection Spiggot size 15mm O/D Connecting tube >15mm I/D Ensure all water fittings are secure before filling the heating A drain tray is fitted for condensate collection within the unit. system. - Page 9 iVECTOR Heater/Cooler 9.0 Electrical Connection (continued...) 1. Remove x 2 screws to access control panel 2. Remove control panel cover Refer to wiring diagrams on pages 10 & 11. 3. Routing cable After making the electrical connections replace the side cover to the control box.
- Page 10 iVECTOR Heater/Cooler 9.0 Electrical Connection (continued...) 2-pipe 0 valve CONTROL POWER BOARD BOARD Supply 230V 50Hz WATER SENSOR 2-PIPE SENSOR TRANSFORMER 2-pipe 1 valve CONTROL POWER Supply 230V 50Hz BOARD BOARD 24V 50Hz 24V DC Supply 230V 50Hz WATER SENSOR 2-PIPE SENSOR TRANSFORMER...
-
Page 11: Commissioning Procedure
iVECTOR Heater/Cooler 9.0 Electrical Connection (continued...) 2-pipe 1 valve + BMS 24V AC BUILDING MANAGEMENT SYSTEM CONTROL POWER BOARD BOARD FAST SLOW HEAT Supply 230V 50Hz COOL 24V 50Hz 24V DC Supply 230V 50Hz WATER SENSOR 2-PIPE SENSOR TRANSFORMER 10.0 Commissioning Procedure 1. -
Page 12: Technical Data
iVECTOR Heater/Cooler 11.0 Technical Data Dimensions Weight, Water Content and Motor Power Nominal Height Depth Length Motor Water Unpacked Model Model (mm) (mm) (mm) Power (w) Content (l) Weight (kg) iV60x080 iV60x080 0.66 22.8 iV60x100 1000 iV60x100 0.92 27.7 iV60x120 1200 iV60x120 1.19... -
Page 13: Control System Set-Up And Operating Instruction
iVECTOR Heater/Cooler 12.0 Control System Set-up and Operating Instruction General Description Additional functions are available if necessary from the Full operating mode menu. The electronic control system on this unit provides a wide range A range of additional parameters and features can be changed of options that can be selected according to system complexity or activated in a further set up menu should these be required. - Page 14 iVECTOR Heater/Cooler 12.1 Unit Operation (continued...) Easy Mode Display Heating indicator Cooling indicator Temperature symbol – when this is displayed the current room temperature is displayed Fan speed symbol (fan blades will rotate when active) Comfort setting Power (on/off) Clock setting Room temperature Time Day of the week...
-
Page 15: Operating Modes
iVECTOR Heater/Cooler 12.2 Operating Modes Use ( ) and ( ) keys to choose from the following parameters. A function is selected when the icon is surrounded by Availability Function Description Adjustment Easy Full Control Operation Setup Control Operation Setup The unit must be programed for operation Scroll to the Fixed Fan mode , and then... -
Page 16: Installer's Set-Up Parameters
iVECTOR Heater/Cooler 12.3 Installer’s Set-up Parameters The various parameters that can be defined by the installer are Press (OK) to toggle the parameter setting or edit the value. shown in the table below. If the value starts to blink, use (+) and (-) keys to adjust the value. When the value is adjusted to the desired setting, press (OK) To access the installation parameters menu, scroll to AUTO, then to confirm. -
Page 17: Program Mode
iVECTOR Heater/Cooler 12.5 Program Mode Program Menu A quantity of 9 built-in (P1 - P9) and 4 user defined (U1 - U9) timed program options are available to choose from. Each day is divided into 24 one hour periods operating in either Comfort setting (21°C default) or Night set-back setting (19°C default). -
Page 18: Troubleshooting
Vent air from heating system unit cycling on water sensor If the fan convector is still faulty after checking the above, call your installer or MYSON Service. Possible Installation Faults System Diagnostic Poor heating or cooling performance from this unit could be the... -
Page 19: Maintenance
iVECTOR Heater/Cooler 14.0 Maintenance Disconnect from the power supply before carrying out maintenance work. Maintenance should be restricted to occasional removal of dust and lint around the unit. The outer surface may be wiped over with warm water and mild detergent taking care to avoid water entering the grille areas. - Page 20 MYSON Service, Somerden Road, Hull, East Yorkshire HU9 5PE T: 01482 713927, F: 01482 789056, service.convectors@myson.co.uk Spare parts and technical help on all Convector products are available from MYSON Service. For latest prices and delivery to your door visit MyTub Ltd - www.mytub.co.uk - info@mytub.co.uk 0844 556 1818...
