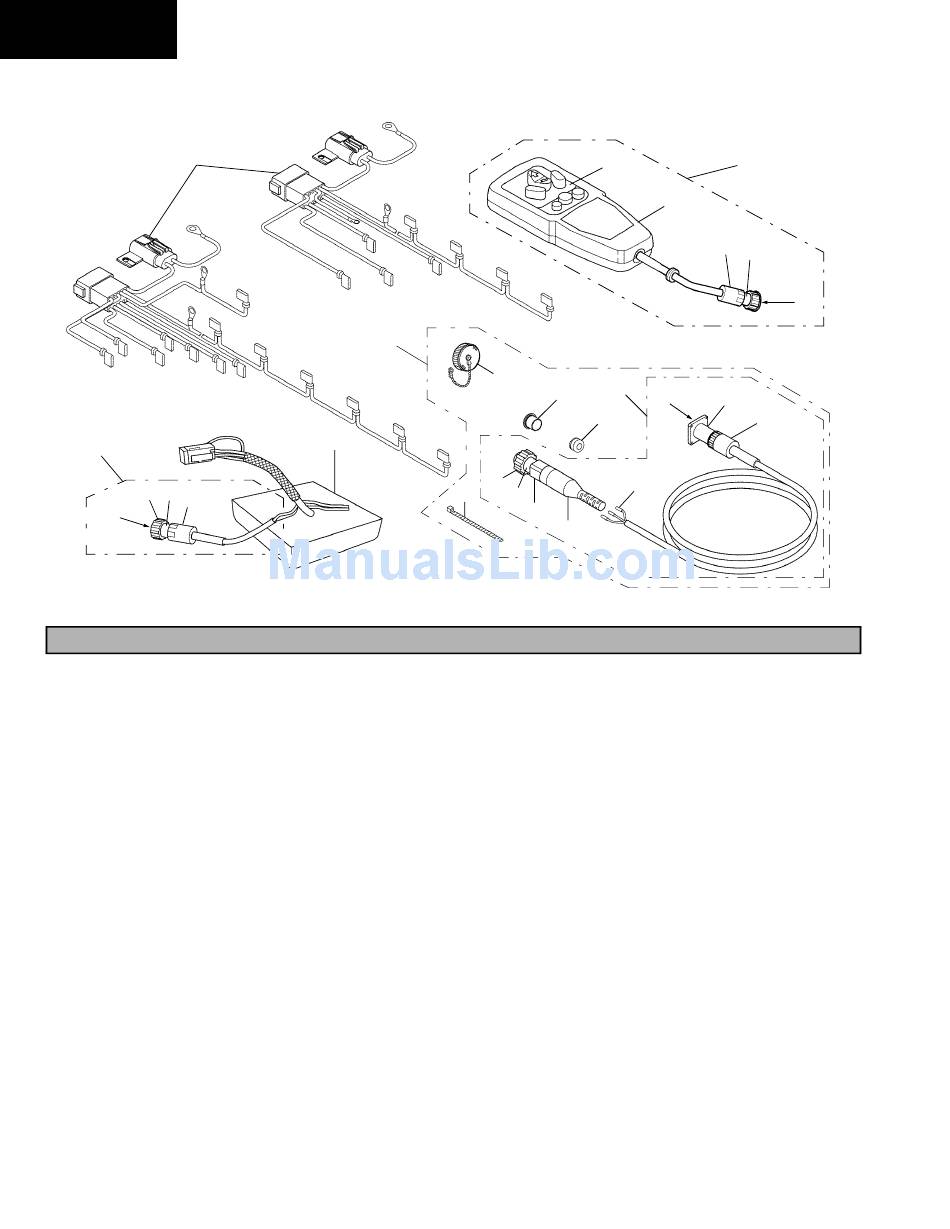

CONTROL SYSTEM WIRING - ST, MT, HT

6
2
22
4
3
5
ITEM PART NO.
1 96105084
96107734
2 96105487
3 96105709
4 96105418
5 96105370
6 96105131
96105130
7 96105081
8 96105300
9 96105284
10 96104893
11 96001227
12 96105101
13 96105416
14 96105710
15 96105419
16 96105420
17 96105708
18 96107354
96107355
19 96107356
20 96105299
21 96105417
22 96106533
23 96107382
96106472
24 96105325
25 96105404
26 96105877
27 96105102
21
7
1
11
DESCRIPTION
Module, Wired Control .................................................................................... 1
Module, Wireless Control ................................................................................ 1
Harness Repair Kit.......................................................................................... 1
Clamp, Cable .................................................................................................. 3
Connector, Plug .............................................................................................. 1
Contact, Signal Socket.................................................................................... 6
Harness, Solenoids - Gravity Down ................................................................ 1
Harness, Solenoids - Down Pressure ............................................................. 1
Bag, Harness Controls.................................................................................... 1
Cap, Screw-On................................................................................................ 1
Cap, 1/2" ......................................................................................................... 1
Grommet, 5/16" ID .......................................................................................... 1
Strap, Plastic Tie ............................................................................................. 5
Harness, Vehicle ............................................................................................. 1
Contact, Signal Pin ......................................................................................... 6
Connector, Receptacle, Flanged..................................................................... 1
Boot, Cable ..................................................................................................... 1
Grip, Cable ...................................................................................................... 1
Connector, Plug, Unsealed ............................................................................. 1
Controller Assembly ........................................................................................ 1
Controller Assembly, Wireless ........................................................................ 1
Touch Pad, Predator ....................................................................................... 1
Housing, Controller, Complete ........................................................................ 1
Connector, Receptacle.................................................................................... 1
Coupling Ring ................................................................................................. 2
Controller, Joystick, Str, Wired (not shown) .................................................... 1
Controller, Joystick, Str, Wireless (not shown) ................................................ 1
Insertion Tool for Circular Connectors (not shown) ......................................... 1
Extraction Tool for Circular Connectors (not shown) ....................................... 1
Kit, Connector Repair (not shown)
(includes (3) #3, (1) #4, (6) #5, (6) #13, (1) #14, (1) #15, (1) #16,
(1) #17, (1) #21, (1) #24 & (1) #25)................................................................. 1
Harness, 48" Extension (not shown)............................................................... 1
19
20
8
12
9
13
10
22
5
17
16
15
18
3
21
13
14
3
QTY
