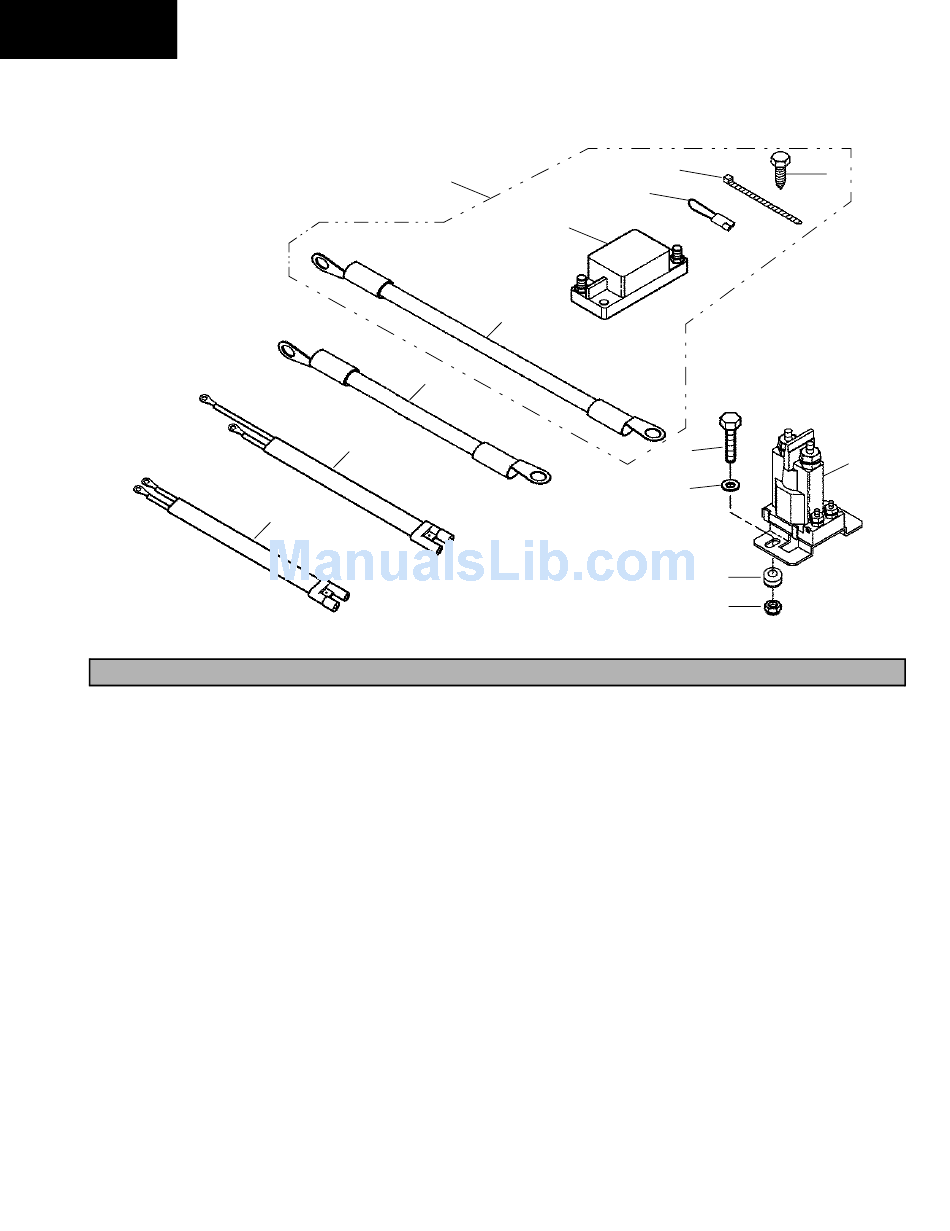

POWER PACK WIRING - ST, MT, HT

2
1
PART NO. DESCRIPTION
96104221 Harness, Battery Power .................................................................................. 1
96104230 Harness, Plow Power ...................................................................................... 1
96105103 Harness, Solenoid - MT & ST ......................................................................... 1
96105273 Harness, Solenoid - HT .................................................................................. 1
96105167 Bag Power Harness Parts............................................................................... 1
96101210 Breaker, Circuit, 150A ..................................................................................... 1
96102891 Cable, Power................................................................................................... 1
96105082 Cap, Protective................................................................................................ 2
96001227 Strap, Tie Plastic ............................................................................................. 2
98100037 Screw, Self Tapping, #10-16 x 1" .................................................................... 2
96002086 Switch, Solenoid ............................................................................................. 1
96105282 Grommet, 3/8" ID ............................................................................................ 2
98100253 Capscrew, Hex., 1/4"- 20 x 1-1/4" ................................................................... 2
98100254 Washer, Flat, 1/4"............................................................................................ 2
98100255 Nut, Hex Head Nylock, 1/4"-20 ....................................................................... 2
