Summary of Contents for Delco VERSA 100

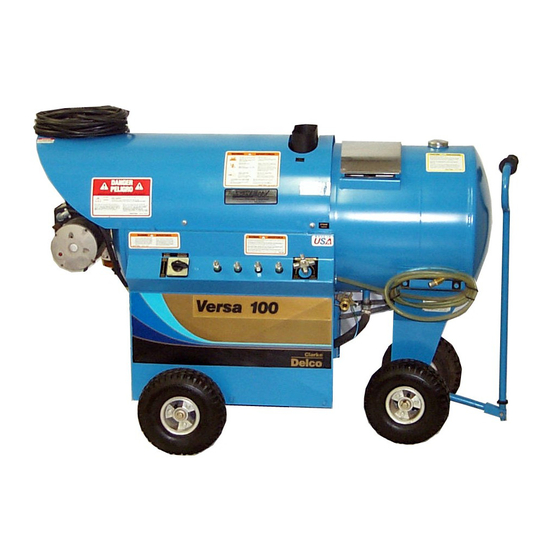

- Page 1 Pressu re Wash ers VERSA 100 VERSA 100C PN 09043X PN 09043D VERSA 200C PN 09041E PN 09041C (S.S.) Operators Manual and Replacement Parts Book Rev1 11-07 Delco Pressure Washers - LIT-VER1-DEL...
-
Page 2: Limited Warranty
LIMITED WARRANTY DELCO® CLEANING SYSTEMS, we distribute top quality industrial / commercial / personal pressure washers that are designed for heavy-duty use, maximum reliability, durability, and long life. Our pressure washers are built for all duty applications and steady use due to higher quality levels. The manufacturer of this product agrees to repair or replace designated parts that prove defective within the warranty period of one (1) year listed in the chart. - Page 3 LIMITED WARRANTY (cont) Parts / Components Warranty Period and Details High Pressure Pumps Five (5) year limited manufactuer warranty on pump workmanship and defects in material. Lifetime on forged brass manifold. Warranty does not apply to failures on other pump parts due •...
-
Page 4: Table Of Contents
Assembly Drawing - Painted Versa 100 and 100C........ -
Page 5: Operator Safety Instructions
Operating a machine that is not completely or fully assembled could result in injury or property damage. Do not operate this machine until it is completely assembled. Inspect hoses, fittings, and heat exchanger for leaks or fatigue before each use. Versa 100/100C Owner's Manual Page 5... - Page 6 Delco distributor. CAUTION: Maintenance and repairs performed by unauthorized personnel could result in damage or injury. Servicing of this unit must always be referred to an authorized Delco distributor. Page 6 Versa 100/100C Owner's Manual...
-
Page 7: Introduction And Machine Specifications
INTRODUCTION & MACHINE SPECIFICATIONS The Versa 100 and 200 series’ are equipped with a ceramic plunger pump producing 2.5 - 3.6 gpm at 1,000 - 1,200 psi. Standard equipment features include a low water shut-off switch, a high limit temperature switch for prevention of machine overheating and a heavy duty 35 ft. -
Page 8: Machine Operation Instructions
After the burner lights there should be no visibly apparent smoke. If your unit is a trigger control, release the trigger. The unloader should activate and the flame should cease on the burner automatically. Page 8 Versa 100/100C Owner's Manual... -
Page 9: Maintenance
2. Turn the oil plug counterclockwise. 3. Wipe the dipstick with a clean cloth. 4. Screw the dipstick in. Pull it back out and check for the oil level mark. The oil level should be at the top mark. Versa 100/100C Owner's Manual Page 9... -
Page 10: Freeze-Up Prevention
Safety Manual that came with your pressure washer. The part number for that manual is 78351A. If you didn't receive one when you bought your pressure washer contact your local Delco distributor and request one or call Delco's customer service department at 1-800-BUY-DELCO. Page 10 Versa 100/100C Owner's Manual... -
Page 11: How To Correct Problems In The Machine
Contact an authorized Delco service person. There is water dripping from under The plunger packing is worn. Contact an authorized Delco service person. the pump. The plunger retainer O-ring is worn. Contact an authorized Delco service person. Versa 100/100C Owner's Manual Page 11... - Page 12 The fuel nozzle components are loose. Contact an authorized Delco service person. The coils are sooted. Clean the soot from the outside of the coils. The fuel nozzle is dirty. Contact an authorized Delco service person. Page 12 Versa 100/100C Owner's Manual...
-
Page 13: Wiring Diagram -115V
Delco Versa 100-200/Versa 100C-200C Wiring Diagram Delco Versa 100-200 and Versa 100C-200C Electrode Check Schematic Versa 100/100C Owner's Manual Page 13... -
Page 14: Pump Drawing
Delco Versa 100/ Versa 100C-200C Pump Drawing Page 14 Versa 100/100C Owner's Manual... -
Page 15: Parts List
Delco Versa 100 /100C-200C Pump Parts List Ref. Part No. Description Ref. Part No. Description 192323 Cover - Crankcase Bolt - Plunger Kit 195406 ref. 198296 Seal - Oil Bearing 197701 Rod - Piston 197070 Plug, Oil 196967 Pin - Piston... -
Page 16: Packings
Page 16 Versa 100/100C Owner's Manual... -
Page 17: Kit Interchange/ Cross Reference
Versa 100/100C Owner's Manual Page 17... -
Page 18: Unloader Valve Drawing And Parts List
Kit 59 contains the following numbers: 1, 2, 4, 5, 6, 8, 11, 12, 13, 14, 15, 16 & 17 REF. Kit #61 Kit, Complete Maintenance Kit 195461 K-3 Unloader Kit 61contains the following numbers: 1,2,3,4,5,6,7,13,14,15,16,17,18 Page 18 Versa 100/100C Owner's Manual... -
Page 19: 59420A Unloader Valve Drawing And Parts List
Kit 59 contains the following numbers: 1, 2, 4, 5, 6, 8, 11, 12, 13, 14, 15, 16 & 17 REF. Kit #61 Kit, Complete Maintenance Kit 195461 K-3 Unloader Kit 61contains the following numbers: 1,2,3,4,5,6,7,13,14,15,16,17,18 Versa 100/100C Owner's Manual Page 19... -
Page 20: Assembly Drawing - Painted Versa 100 And 100C
Delco Versa 100/100C (Painted Models) Machine Assembly Drawing Page 20 Versa 100/100C Owner's Manual... -
Page 21: Parts List
5 Blk. 52041A Plug ½" 198491 Switch, Hi-Temp 230° 77031A Decal, Instruction 170258 Tee, Reducing ½" x " x ½" 74102A Label Versa 100 I.D. 170215 Nipple 72123A Label, Versa 100C I.D. 170237 Elbow, ", Galv. 74105A Label, Sweep Left 192276... - Page 22 Delco Versa 100/100C Painted Machine Assembly Parts List Ref. # P/N Description 171112 Screw -20 x 170793 Nut, Clinch ¼-20 77032A Label, Danger Steam 198326 Shield, Heat 18" Painted 198078 Screen, Hose, Washer 170071 Fitting Female 170216 Nipple, Pipe x Close Galv.
-
Page 23: Burner Drawing And Parts List
Delco Versa 100/Versa 100C Burner Drawing & Parts List Ref. Part No. Description Qty. 44629A Motor 52746A Motor Cord Cover 50664A Blower Wheel 54861A Housing-Fan Assembly 48410A Transformer Base 52747A Slot cover 50502A Inner Air Band-Burner 50503A Outer Air Band-Burner... -
Page 24: Assembly Drawing - Stainless Steel Versa 100C
Delco Versa 100C-200C Stainless Steel Machine Assembly Drawing Page 24 Versa 100/100C Owner's Manual... -
Page 25: Parts List
170216 Nipple, Pipe x Close Galv. 170886 Washer, Flat 170222 Nipple, ½" x 6" 170402 Nipple, ¼ Close Blk. (Part list continued on next page.) *Note: 191337 Valve Asm. Float includes 9, 10, 148 Versa 100/100C Owner's Manual Page 25... - Page 26 Valve, Air " NPT Brass 57239A Pulley, AK59H 197283 Pump, W99 191773 Bushing, Pulley H x 24mm 191679 Belt-V, A30 194117 Hook, Gun 29575A Nut, Retaining* 77024A Label, Warning-Electric 77039B Label, Made in USA Page 26 Versa 100/100C Owner's Manual...
-
Page 27: Fuel Filter Components
Delco Versa 100/100C-200C Fuel Filter Components (Optional filter shown) Versa 100/100C Owner's Manual Page 27... - Page 28 1111 E. Lake Francis Dr. • Siloam Springs, AR 72761 • 1-800-BUY-DELCO...
