INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MODEL
MODELO
DCV2420
If your pressure washer is not working properly or if there are parts missing or broken, please DO
NOT RETURN IT TO THE PLACE OF PURCHASE. Contact our customer service department at
1-877-362-4271 or www.simpsoncleaning.com
Si su lavadora a presión no trabaja correctamente ó encuentra partes rotas o faltantes, por favor
NO LA REGRECE AL LUGAR DONDE LA COMPRO. Contáctese con nuestro Departamento de
Servicio al Cliente llamando al 1-877-362-4271 o www.simpsoncleaning.com
IMPORTANT: Please make certain that the person who is to use this equipment carefully reads
and understands these instructions before operating.
IMPORTANTE: Aségurese por favor de que la persona que vaya a utilizar este equipo lea con
cuidado y comprenda estas instrucciones antes de operar.
VEA EL ESPAÑOL EN LA CONTRAPORTADA. INSTRUCTIVO DE OPERACIÓN,
CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA:
LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.
Save thiS manual for future reference
conServe eStaS inStruccioneS Para futuraS conSultaS
Part No. 7106967 Rev. 0 AUG 2013
NOTICE: Do not use E15 or E85 fuel (or fuel containing greater
than 10% ethanol) in this product. It is a violation of federal law
and will damage the unit and void your warranty.
AVISO: No utilice combustibles E15 o E85 (ni combustibles
que contengan más de 10% de etanol) con este producto.
Esto constituye una violación a la ley federal, dañará la unidad y
anulará la garantía.
2400
PSI
2.0
GPM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCV2420 and is the answer not in the manual?

Questions and answers

Related Manuals for Delco DCV2420

Summary of Contents for Delco DCV2420

  • Page 1 MANUAL DE INSTRUCCIONES MODEL MODELO DCV2420 NOTICE: Do not use E15 or E85 fuel (or fuel containing greater than 10% ethanol) in this product. It is a violation of federal law and will damage the unit and void your warranty.

  • Page 2: Safety Guidelines - Definitions

    SAFETY GUIDELINES - DEFINITIONS This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these symbols. DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 3 WARNING: This product may not be equipped with a spark-arresting muffler. If the product is not equipped and will be used around flam ma ble ma teri als or on land covered with materials such as agricultural crops, forest, brush, grass or other similar items, then an ap proved spark arrester must be installed and is legally required in the state of California.
  • Page 4 DANGER: RISk TO BREAThING (ASPhyxIATION) WhAT CAN hAPPEN hOW TO PREVENT IT • Breathing ex h aust fumes will cause • Operate pressure washer in a well- se r i o us injury or death! En g ine ventilated area. Avoid en c losed areas exhaust contains carbon mon o x i de, such as ga r ages, base m ents, etc.
  • Page 5 DANGER: RISk Of INJURy fROM SPRAy WhAT CAN hAPPEN hOW TO PREVENT IT • High-velocity fluid spray can cause • Always wear ANSI-approved Z87.1 objects to break, projecting particles safety glasses. Wear protective clothing at high speed. to protect against accidental spraying. • Never point wand at or spray people or animals.
  • Page 6 DANGER: RISk Of INJURy OR PROP ER Ty DAMAGE WhEN TRANSPORTING OR STORING WhAT CAN hAPPEN hOW TO PREVENT IT • Fuel or oil can leak or spill and could • If pressure washer is equipped with a fuel result in fire or breathing hazard. shut-off valve, turn the valve to the OFF Se r ious in j u r y or death can re s ult. position before transporting to avoid fuel Fuel or oil leaks will dam a ge carpet, leaks. If pres s ure wash e r is not equipped...
  • Page 7 WARNING: RISk Of BURSTING WhAT CAN hAPPEN hOW TO PREVENT IT • Over inflation of tires could result in • Use a tire pressure gauge to check the serious injury and property damage. tires pressure before each use and while inflating tires; see the tire sidewall for the correct tire pressure.
  • Page 8 qUICk SETUp GUIDE WARNING: To reduce the risk of injury, read the pressure washer instruction manual and the engine instruction manual before operating pressure washer. Install the handle Install the Wheels Place handle onto Slide the axle pin through the frame, depress the snap wheel, formed washer, frame and buttons, and slide the handle...
  • Page 9 Connect high Connect Garden Connect high Pressure hose hose to Pump Pressure hose to Spray Gun to Pump Thread the Thread the other end garden hose to Thread the high pressure of the high pressure the pump inlet. hose to the pump outlet. hose to the spray gun.
  • Page 10 Pull the Recoil Pull the Choke Starter Grip Pin out to the OPEN Position Pull the recoil starter grip to Gradually move the start the engine. Choke Pin to the OPEN Position after See Label #10 on the engine starts. side of the engine.

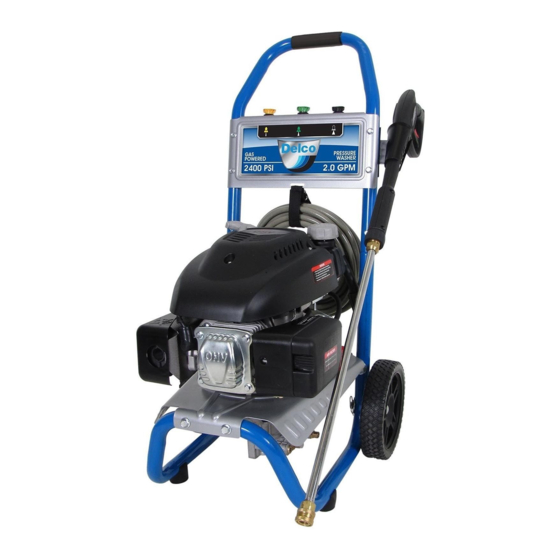

  • Page 11 GET TO kNOW THE pRESSURE WASHER NOTE: Photographs and line drawings used in this manual are for reference only and do not represent a specific model. Compare the illustrations with your unit to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. BASIC ELEMENTS OF A pRESSURE WASHER (FIG.
  • Page 12 Detergent Siphon hose (not shown): Feeds cleaning agents into the pump to mix with the water. See how To Apply Chemicals/Cleaning Solvents instructions in Operation section. G. handle h. frame Pump Outlet Pump Inlet k. Quick Connect Nozzles hose Storage Strap BASIC ELEMENTS OF AN ENGINE Refer to the Engine Owner's Manual for location and operation of engine controls.

  • Page 13: Operation

    Connect wand (E) to gun (D). Tighten securely. Attach high pressure hose (C) to gun (D). Tighten se cure ly. NOTE: The pump on this unit is maintenance free and requires no oil. If there is a problem with the pump, contact our Customer Service Group on 1-877-362-4271 as soon as possible.
  • Page 14 Back away from the sur face to be cleaned. The further away you are, the less the pressure will be on the surface to be cleaned. Change to the 25˚ nozzle. This nozzle delivers a less powerful stream of water and a wider spray pattern.
  • Page 15 HOW TO AppLY CHEMICALS/CLEANING SOLVENTS (FIG. 9) Applying chemicals or cleaning solvents is a low pressure operation. NOTE: Use only soaps and chemicals designed for pressure washer use. Do not use bleach. To Apply Chemicals: Ensure detergent siphon hose (F, Figure 9) is attached to barbed fitting location near high pressure hose connection of pump as shown.
  • Page 16 NOTICE: Risk of property damage. Never pull water supply hose to move pres sure washer. This could damage hose and/or pump inlet. • DO NOT use hot water, use cold water only. • Never turn water supply off while pressure washer engine is running or damage to pump will result. • DO NOT stop spraying water for more than two minutes at a time. Pump operates in bypass mode when spray gun trigger is not pressed. If pump is left in bypass mode for more than two minutes internal components of the pump can be damaged.

  • Page 17: Maintenance

    11. Depress trigger on gun to start water flow. WARNING: Risk of unsafe operation. Stand on a stable surface and grip gun/spray wand firmly with both hands. Expect the gun to kick when triggered. 12. Release trigger to stop water flow. WARNING: Risk of injury from spray.
  • Page 18 CONNECTIONS Connections on pressure washer hoses, gun and spray wand should be cleaned regularly and lubricated with light oil or lithium grease to prevent leakage and damage to the o-rings. NOzzLE CLEANING (FIG. 14) If the nozzle becomes clogged with foreign materials, such as dirt, excessive pressure may develop.

  • Page 19: Specifications

    NOTICE: The use of any other accessory not recommended for use with this tool could be hazardous. Use only accessories rated equal to or greater than the rating of the pressure washer. SpECIFICATIONS DCV2420 Model PSI Max* 2400 psi GPM Max* 2.0 gpm...

  • Page 20: Limited Warranty

    LIMITED WARRANTY 90 DAY LIMITED WARRANTY ON pRODUCT COMpONENTS EXCLUDING pUMp DELCO ® warrants to the original purchaser that the wheels, gun, hose, wand, spray DELCO nozzle(s) and other components of the ® pressure washer covered under this warranty are free from defects in material and workmanship for 90 days from the date of purchase.

  • Page 21: Troubleshooting Guide

    ANy INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, • OR ExPENSE ThAT MAy RESULT fROM ANy DEfECT, fAILURE OR MALfUNCTION Of ThE PRODUCT IS NOT COVERED By ThIS WARRANTy. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
  • Page 22 OPERATIONAL POSSIBLE CAUSE SOLUTION ISSUE Will not draw Spray wand not in See how to Use Spray chemicals low pressure Wand paragraph in the Operation Section Chemical filter clogged Clean filter Chemical screen not Make sure end of detergent in cleaning solution siphon hose is fully submerged into cleaning solution Chemical too thick...
  • Page 23 www.simpsoncleaning.com Internet Address: Warranty Registration via Internet www.simpsoncleaning.com Sitio Internet: Registro de garantia mediante Internet Copyright. All Rights Reserved Copyright. Todos los derechos reservados Copyright. Tous droits réservés Assembled in U.S.A with domestic and foreign components Ensamblado en los EE.UU. utilizando componentes domésticos e importados...
