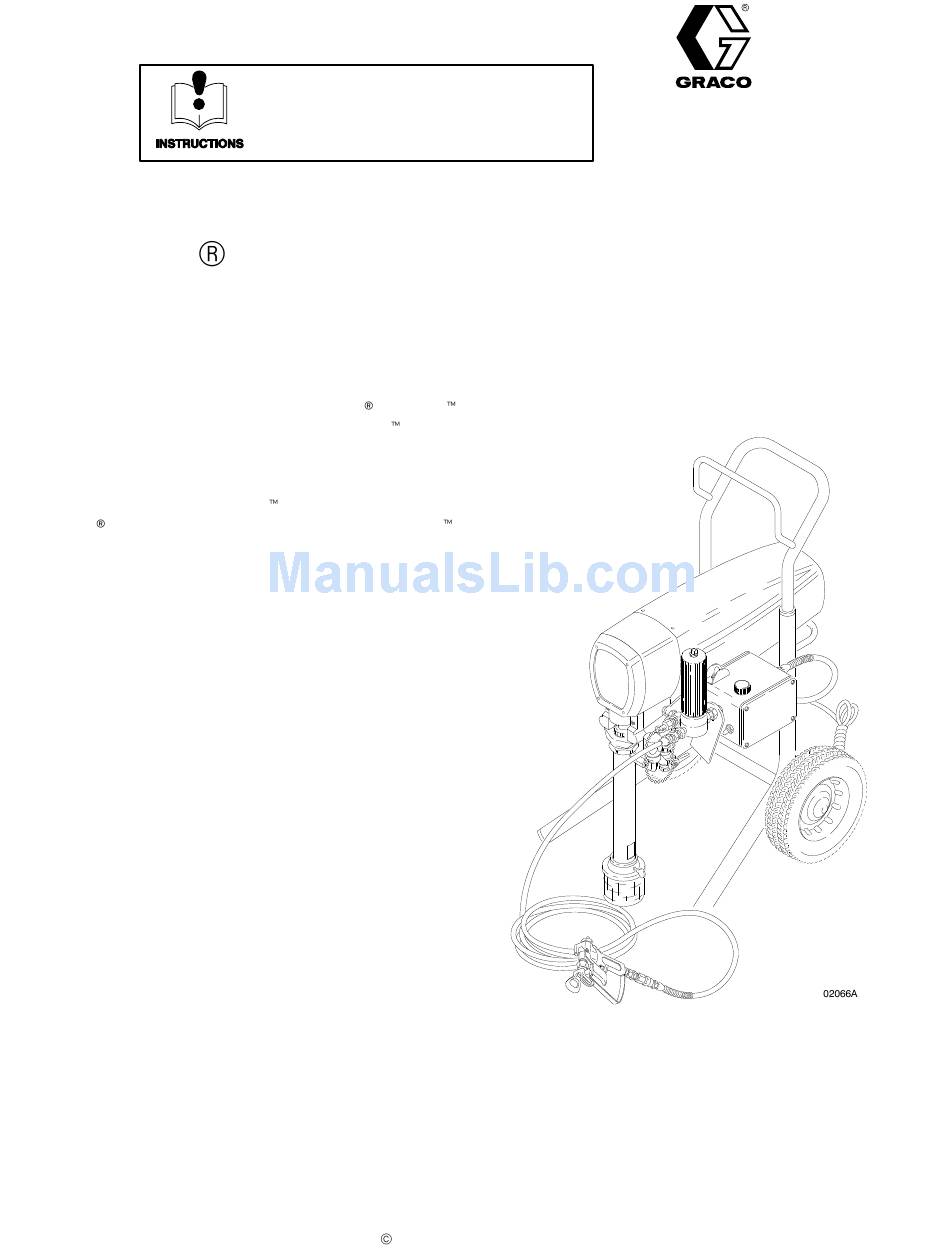

INSTRUCTIONS–PARTS LIST
220 VAC, 50 HZ, 12 AMP
Ultra 1500 Mark V Texture Sprayer
210 bar (3000 psi) Maximum Working Pressure
Model 236–401, Series A
This model includes a basic sprayer, a 15 m hose,
a 1 m hose, a Contractor gun, RAC IV DripLess
guard and a Size 621 DripLess SwitchTip
Model 236–400, Series A
This model includes a basic sprayer, a 15 m hose,
a 1 m hose, a Silver Plus
IV tip guard and a Size 629 DripLess SwitchTip
Patents Pending
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
gun, a Heavy Duty RAC
COPYRIGHT 1993, GRACO INC.
tip
308–263
Rev D
Supersedes C
and PCN D
