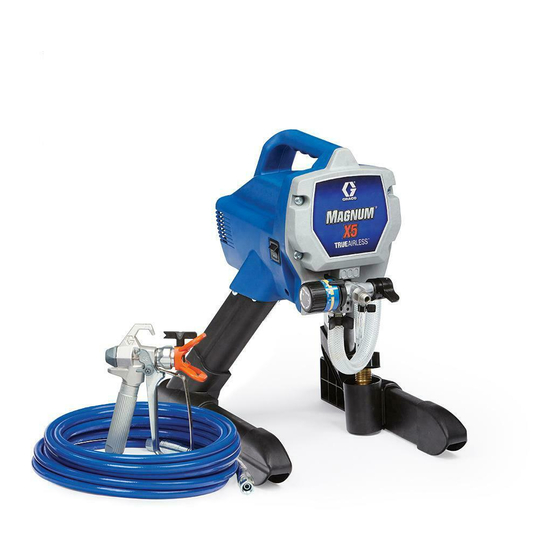

Graco Magnum Quick Manual

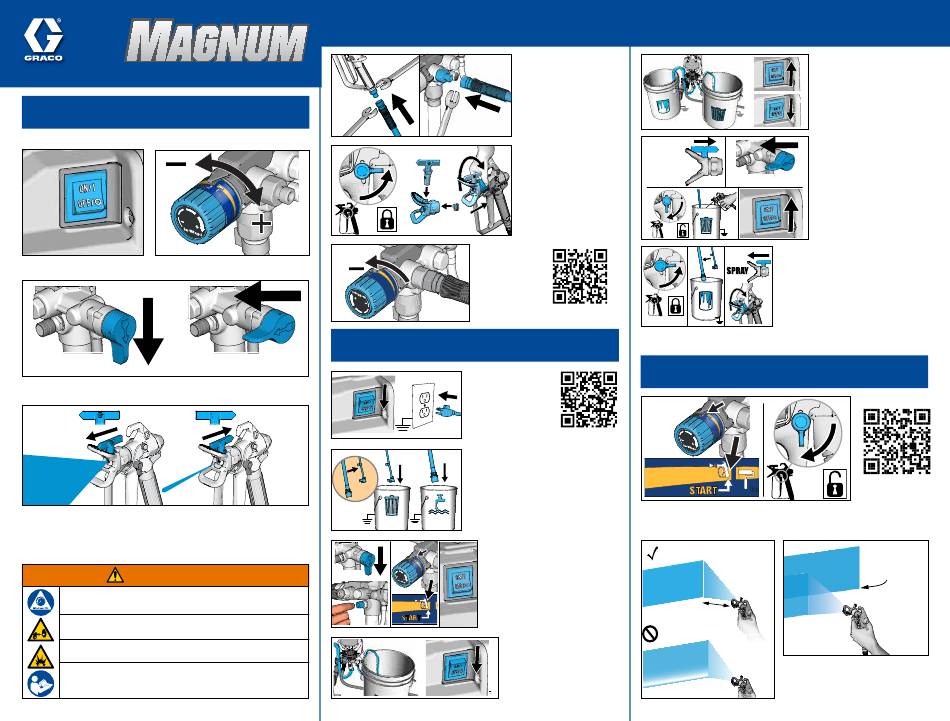

PRO QUICK GUIDE
KNOW YOUR CONTROLS
Power Pressure
Prime/Spray
PRIME

Spray Tip

SPRAY
Read Owner's Manual for complete instructions and warnings. This
quick guide is not a substitute for reading and understanding all
instruction manuals and warning labels supplied with the equip-
ment. Manuals are available at magnum.graco.com
WARNING
Follow pressure relief procedure and wear protective
equipment including but not limited to protective eye wear.
SKIN INJECTION HAZARD: Keep clear of spray tip and leaks.
Engage trigger lock when not spraying.
FIRE AND EXPLOSION HAZARD:
Follow fire and explosion warnings as listed in your manual.
READ AND UNDERSTAND ALL LABELS AND INSTRUCTION
MANUALS BEFORE USE. FAILURE TO FOLLOW ALL WARNINGS
CAN RESULT IN SERIOUS INJURY, AMPUTATION, OR DEATH.
SPRAY
UNCLOG
PRIME
SET UP
1
If needed, connect
hose to gun. Remove
red cap, then connect
hose to sprayer. Tighten
securely.
2
Engage Trigger Lock.
Assure Spray Tip is
properly inserted into
the Spray Tip Guard,
and the Spray Tip Guard
assembly is tightened
securely to gun.
3
Turn the
Pressure
Control Knob
to the lowest
setting.
magnum.graco.com/quickassembly
START UP
1
Turn Power
Switch OFF and
plug sprayer into a
grounded outlet.
magnum.graco.com/quickstart
2
Separate Drain Tube (smaller)
from Suction Tube (larger). Place
Drain Tube in a waste pail. Submerge
Suction Tube into pail filled with water
for water-based material, or mineral
spirits if spraying oil-based material.
3
Turn the Prime/Spray Valve
to the PRIME position. Press
the PushPrime ™ button twice
to loosen inlet valve ball. Turn
Pressure Control Knob to START
position. Turn Power Switch ON.
4
Allow fluid to flow up
the Suction Tube and
out of Drain Tube for 30-60
seconds. Turn Power
Switch OFF.
START UP
5
Power Switch ON and
watch for paint to come
out of the Drain Tube. Turn
Power Switch OFF.
6
UNGLOG
Disengage Trigger Lock.
SPRAY
Point gun into waste pail,
pull and hold trigger. Turn
the Prime/Spray Valve to
SPRAY position and turn
Power Switch ON.
7
When paint comes out of gun,
release trigger. Engage Trigger
Lock. Transfer Drain Tube to paint pail
and attach to Suction Tube. Rotate
Spray Tip back to SPRAY position
and ensure Spray Tip Guard is tight.
YOU ARE NOW READY TO SPRAY!
SPRAYING
Roll
1
Turn Pressure Control Knob to the START
position. Disengage the Trigger Lock.
Good Spray Pattern
12 in. (30 cm)
from surface
TAILS - Gaps at edges
Pull trigger after
starting stroke.
Pressure
too low
2
Increase Pressure Control Knob
Tip Wear
if needed until spray is even and
without gaps at edges.
Submerge Suction
Tube into paint. Turn
Rotate Spray Tip to
UNCLOG Position.
magnum.graco.com/
howtospray
Aim Gun here
to overlap
stroke by 50%
Release trigger
before end
of stroke.
