ESTeem 195Eg Quick Start Manual

Wireless ethernet radio modem
Hide thumbs Also See for 195Eg:

Advertisement

Quick Links

Download this manual See also: User Manual, Manual
Before You Begin
•
The ESTeem Model 195Eg wireless Ethernet radio modem is compatible with many different applications. The most
common application is to bridge two or more Ethernet devices or networks. This guide will demonstrate the basic
configuration and testing of a pair of 195Eg's. For a more detailed information, please see the ESTeem Model 195Eg User's
Manual.
•
This guide assumes you have a working knowledge of Ethernet networking, TCP/IP protocol and how to identify and set the
TCP/IP address on your computer.
•
The 195Eg can be configured using any current web browser software such as Internet Explorer, Netscape or Mozilla.
•
The following procedure will provide an initial communication link between two or more Model 195's for testing purposes.
All the example commands listed in this guide can be adjusted to fit your communication network. Please consult the
ESTeem Model 195Eg User's Manual for more details.
Unpack Contents
Each node in your ESTeem Model 195Eg's network may have different hardware components based upon the final installation
location (i.e Outdoor, Indoor, Point-to-point or Muti-Point). Antenna types, cable lengths, power supplies may be different, but
the following items will be required for basic setup:
Model 195Eg
Antenna
(AA01S Displayed)
Power Supply
(AA175 Displayed)
Note: Your accessory model numbers may vary from the above, but you will need to locate each of above items to continue
configuration.

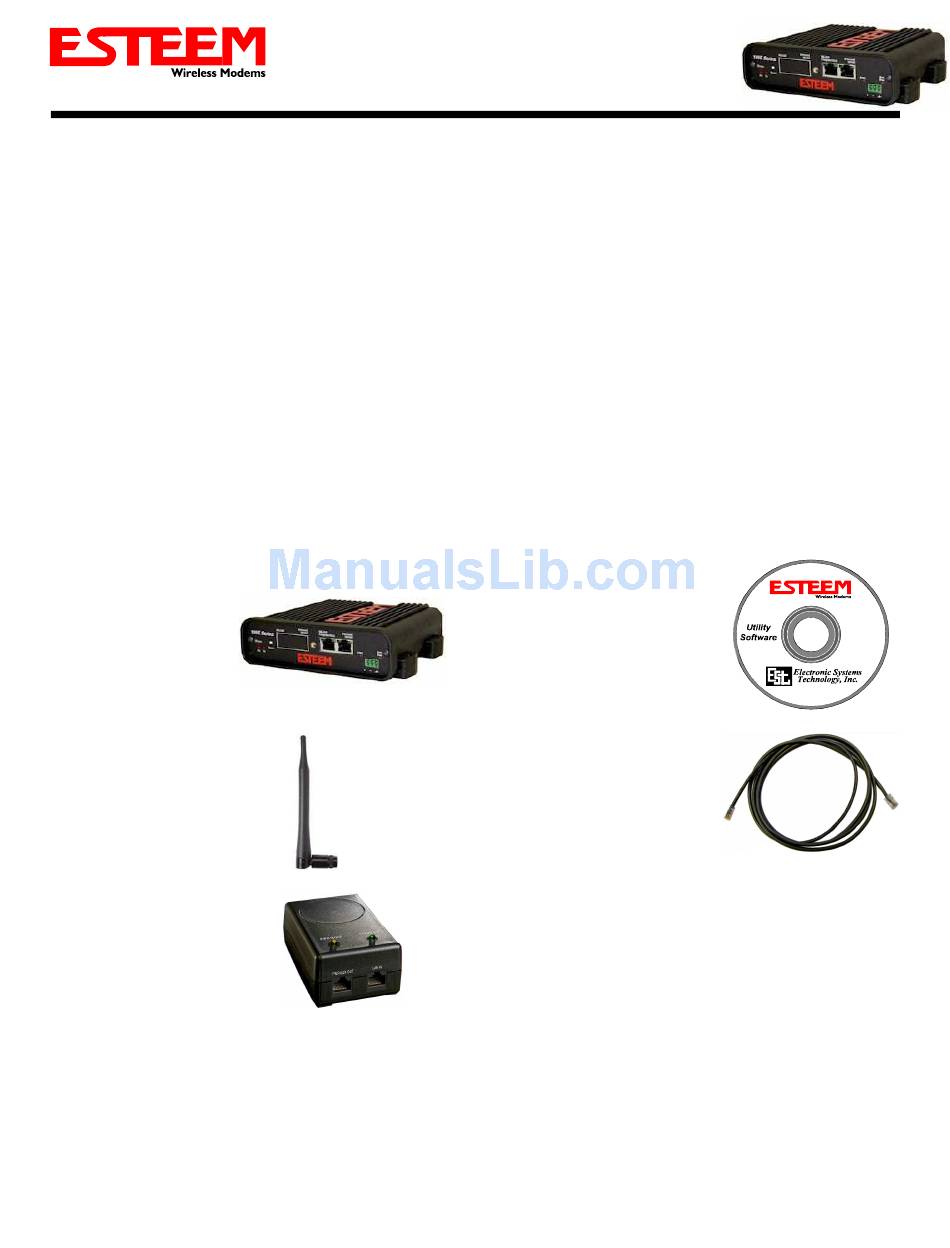

QUICK START GUIDE

MODEL 195Eg
AA109 Resource Disk
(2) Ethernet Cables
