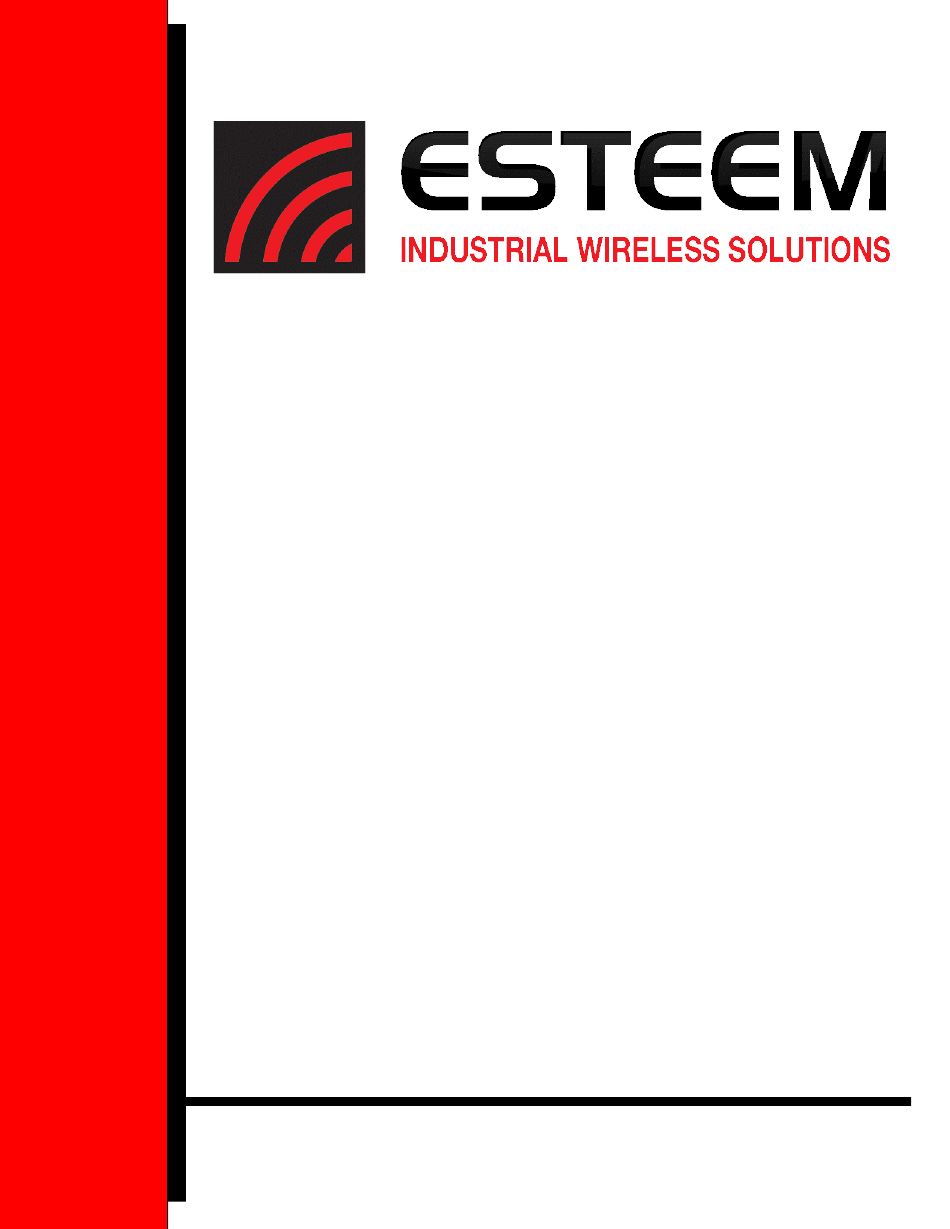

- Page 1 ESTeem User’s Manual Edge 900 Manual Revision 1.0 January 2017 ESTeem Industrial Wireless Solutions...
- Page 2 Date: Name: Eric P. Marske Title: Product Manager Approved by: Date: Name: Michael Eller Title: President Electronic Systems Technology, Inc. dba ESTeem Wireless Modems 415 N. Quay Street Building B1 Kennewick, WA 99336 Phone: 509-735-9092 Fax: 509-783-5475 E-mail: market@esteem.com Web Site: www.esteem.com...
- Page 3 ESTeem Discovery Utility The ESTeem Discovery Utility will allow you to configure the IP address on the Edge 900 radio to match your network regardless of its current IP subnet. The Discovery Utility will also allow access to the Edge 900 Configuration Utility for programming and troubleshooting the wireless network.
- Page 4 User’s Manual The ESTeem Edge 900 will be displayed (Figure 2). If the ESTeem Horizon is not on the same IP subnet as the computer, double click on the IP, Netmask or Gateway and make the necessary changes. Press the Apply Changes button when complete.
- Page 5 Step 2 – Network Layout The Edge 900 will operate in either a point to point or point to multipoint configuration. If there is only a single master and single slave (point to point mode) the Edge 900 can devote all wireless resources to the single remote location and increase the throughput.
-
Page 6: Software Commands
The pass phrase must be between 4 and 64 character long and MUST be identical on all Edge 900 radios in the same network. Enter the network pass phrase and press the “Update Radio Config”... -
Page 7: Information To Users
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications to this equipment not expressly approved by ESTeem Wireless Modems for compliance could void the user's authority to operate the equipment. - Page 8 7 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. This radio transmitter ESTeem Edge 900 MHz (HVIN: 217ES) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated.
- Page 9 Edge 900 User’s Manual Edge 900 Specifications ESTeem Edge 900 Specifications Transmiter/Receiver Frequency of Operation 902-928 MHz RF Data Rate 1 Mbps Tx Output Power (Software Selectable) 24dBm Tx Output Impedance 50 ohms Rx Sensitivity -97 dBm FCC Type Acceptance...
-
Page 10: Antenna Specifications
Edge 900 User’s Manual Antenna Specifications Model No: AA20Es900 Caution Antenna Type: Omni Directional, DC Grounded Applications: Fixed base To comply with the FCC Frequency: 902 to 928 MHz exposure compliance requirements, a separation Polarization: Vertical distance of at least 23 cm... - Page 11 Aluminum Mounting Hardware: Heavy duty U bolts for mounting up to 2.0 in. pipe (included). Antenna Connector: TNC-R Male with 2 ft. pigtail with ESTeem weatherproof boot. Maximum Power Input: 50 Watts Antenna Envelope: 1.1 ft. length by 6 in. width...
