CHAPTER 3
STARTING OUT
OVERVIEW
Most configuration of the ESTeem Model 195Eg is completed using the internal Web interface (discussed in detail in Chapter 4),
but to access the modem through a web browser requires first setting the TCP/IP address. The TCP/IP address (IP address) is set at
the factory for a static Class B (172.16.xxx.xxx - Mask 255.255.0.0) and listed on the ESTeem documentation. If this IP address
does not match your network configuration, you will need to use either the ESTeem 195E Discovery program or the RS-232
interface to set the IP address in the 195Eg.
QUICK START GUIDE
A printed copy of the Model 195Eg Quick Start Guide was provided in the documentation package that arrived with your new
ESTeem 195Eg. This guide is an abbreviated step-by-step procedure on configuration of the 195Eg for most Ethernet bridging and
Access Point applications. A copy of the Quick Start Guide is provided in Appendix G of this User's Manual for convenience.

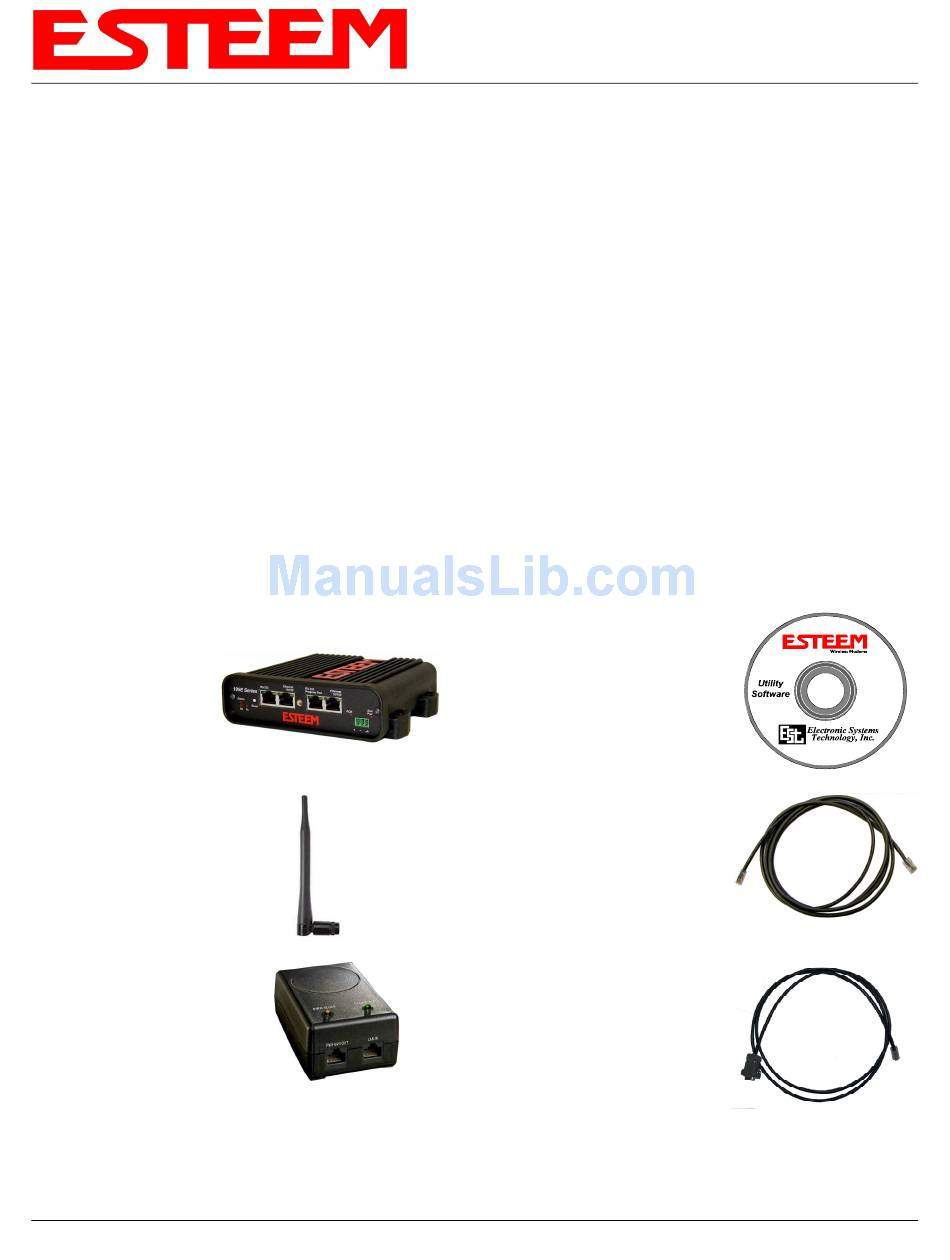

MODEL 195Eg HARDWARE LAYOUT
Unpack the ESTeem Model 195Eg shipping boxes and locate the items contained below for initial configuration. Take a few
minutes to inventory your equipment before you proceed. Report any missing or damaged items to Customer Support (509-735-
9092) as soon as possible.
Each node in your ESTeem Model 195Eg's network may have different hardware components based upon the final installation
location (i.e Outdoor, Indoor, Point-to-point or Muti-Point). Antenna types, cable lengths, power supplies may be different, but the
following items will be required for basic setup:
Model 195Eg
AA109 Resource Disk
Antenna
(2) Ethernet Cables
(AA01S Displayed)
Power Supply
Serial Interface Cable
(AA175 Displayed)
(AA6021.1)
Note: Your accessory model numbers may vary from the above, but you will need to locate each of above items to continue
configuration.
Revised: 21 Mar 08
3-1
EST P/N AA107G
