ESTeem 210C Quick Start Manual

Before You Begin
•
The ESTeem Model 210C and 210M wireless Ethernet radio modems are compatible with many different applications. The
most common application is to bridge two or more Ethernet devices in a wireless network. This guide will demonstrate the
basic configuration and testing of a pair of 210C's or 210M's. For more detailed information, please see the ESTeem Model
210C/M User's Manual.
•
This guide assumes you have a working knowledge of Ethernet networking, TCP/IP protocol and how to identify and set the
TCP/IP address on your computer.
•
The 210 can be configured using any current web browser software such as Internet Explorer, Firefox (Mozilla) or Google
Chrome.
•
The following procedure will provide an initial communication link between two or more Model 210's for testing purposes.
All the example commands listed in this guide can be adjusted to fit your communication network. Please consult the
ESTeem Model 210 User's Manual for more details.
Unpack Contents
Each node in your ESTeem Model 210's network may have different hardware components based upon the final installation
location (i.e. Outdoor, Indoor, Point-to-point or Muti-Point). Antenna types, cable lengths, power supplies may be different, but
the following items will be required for basic setup:

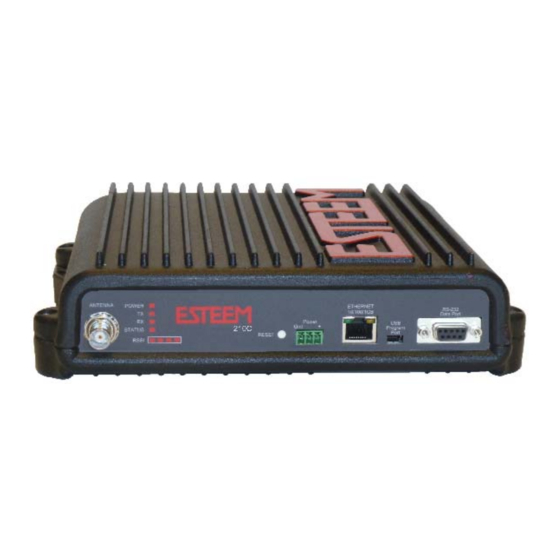

Model 210C
*Test Antenna
(AA20C.1 Displayed)
Power Supply
(AA178 Displayed)
*The ESTeem 210C and 210M wireless modems require an antenna connection before testing. If you are using building
mount antennas for testing, you will need to physically separate the antennas or use attenuation.
Note: Your accessory model numbers may vary from the above, but you will need to locate each of above items to continue
configuration.
QUICK START GUIDE
MODEL 210C/M
AA109 Resource Disk
*Coax Cable
Ethernet Cable
