Receiving And Transmitting - Icom iF3011 Instruction Manual

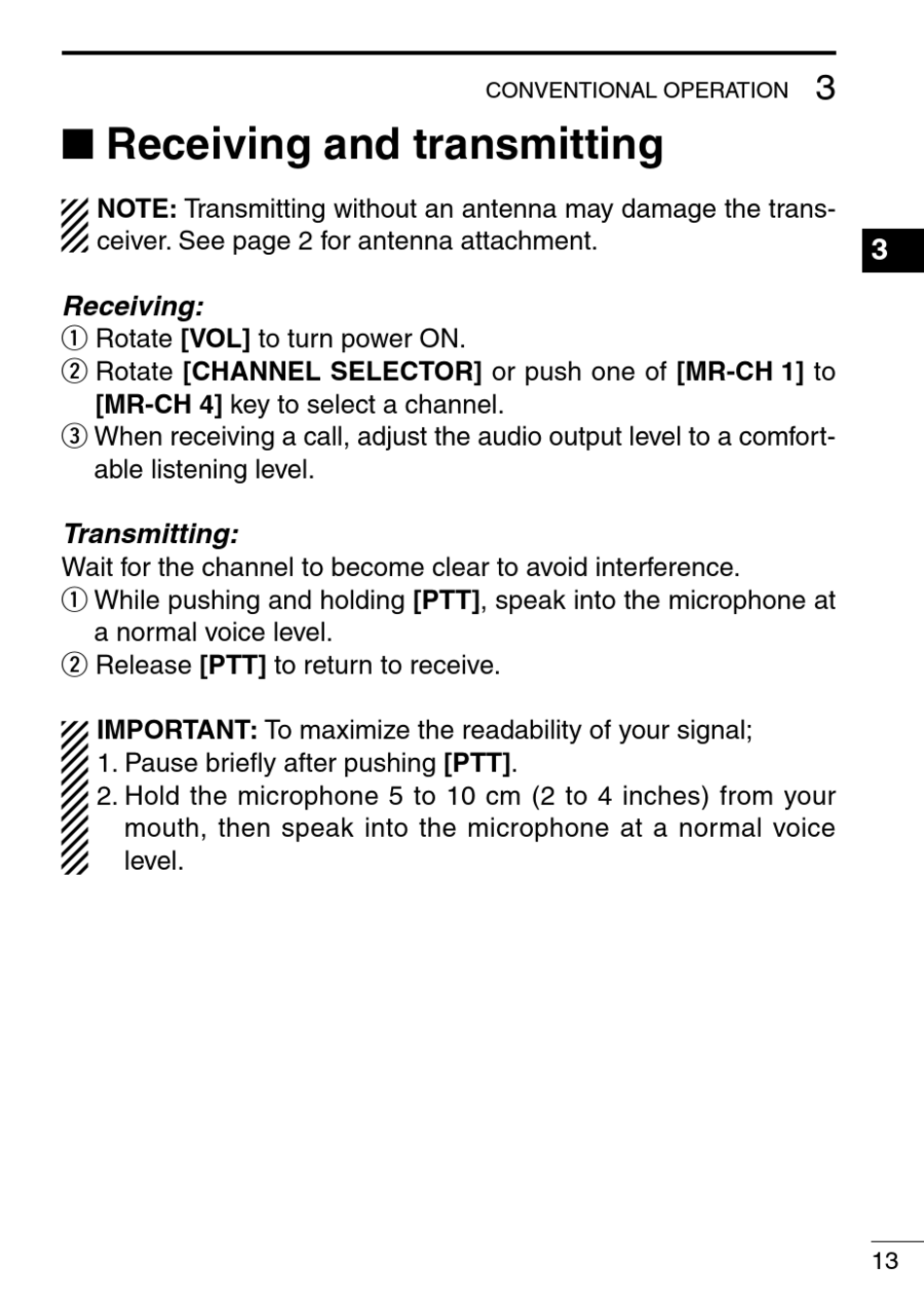

■ Receiving and transmitting

NOTE: Transmitting without an antenna may damage the trans-
ceiver. See page 2 for antenna attachment.
Receiving:
q Rotate [VOL] to turn power ON.
w Rotate [CHANNEL SELECTOR] or push one of [MR-CH 1] to
[MR-CH 4] key to select a channel.
e When receiving a call, adjust the audio output level to a comfort-
able listening level.
Transmitting:
Wait for the channel to become clear to avoid interference.
q While pushing and holding [PTT], speak into the microphone at
a normal voice level.
w Release [PTT] to return to receive.
IMPORTANT: To maximize the readability of your signal;
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from your
mouth, then speak into the microphone at a normal voice
level.
CONVENTIONAL OPERATION
3
3
13
