Microlife BP 3BU1-5 Instruction Manual

Microlife BP 3BU1-5 Instruction Manual

Wrist watch blood pressure monitor
Hide thumbs Also See for BP 3BU1-5:
Table of Contents

Advertisement

Quick Links

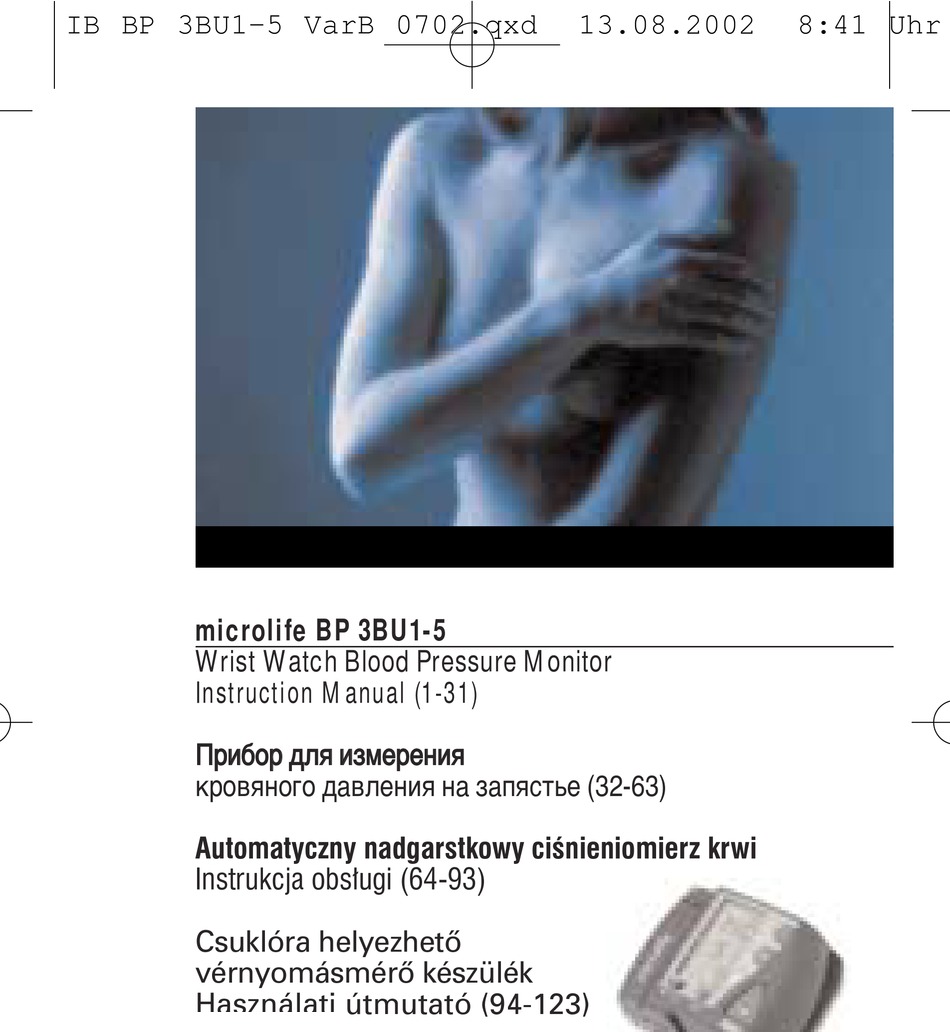

microlife BP 3BU1-5
Wrist Watch Blood Pressure Monitor
Instruction Manual (1-31)
ø ø   Ë Ë · · Ó Ó   ‰ ‰ Î Î ˇ ˇ Ë Ë Á Á Ï Ï Â Â   Â Â Ì Ì Ë Ë ˇ ˇ
ÍÓ‚ˇÌÓ„Ó ‰‡‚ÎÂÌˡ ̇ Á‡ÔˇÒڸ (32-63)
Automatyczny nadgarstkowy ciÊnieniomierz krwi
Instrukcja obs∏ugi (64-93)
Csuklóra helyezhetô
vérnyomásmérô készülék
Használati útmutató (94-123)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP 3BU1-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microlife BP 3BU1-5

Summary of Contents for Microlife BP 3BU1-5

  • Page 1 BP 3BU1-5 Wrist Watch Blood Pressure Monitor Instruction Manual (1-31) ø ø   Ë Ë · · Ó Ó   ‰ ‰ Î Î ˇ ˇ Ë Ë Á Á Ï Ï Â Â   Â Â Ì Ì Ë Ë ˇ ˇ...
  • Page 2 Armenia Estonia Alfa Pharmmedimpex Oriola AS Estonia 8-33 Komitas ave. Saku tn. 8 AM-375033 Yerevan / Armenia EE-11314 Tallinn / Estonia Tel. +374 1 569 698 Tel. +372 65 15 100 Fax +374 1 544 772 Fax +372 65 15 111 Belarus Greece Degreemed...
  • Page 3 Tel. + 386 1 5621 338 Fax + 386 1 5621 339 Poland ECO CLIMA Ukraine Mc Gregor Microlife Ukraine Ul. 11-go Listopada 97 ul. Serova-Naberesznaya 5a PL-41800 Zabrze / Poland UA-49000 Dniepropetrovsk / Ukraine Tel. +48 32 274 14 26 Tel.

  • Page 4: Table Of Contents

    Wrist Watch Blood Pressure Monitor Instruction Manual Table of contents Introduction 1.1. Features of the BP 3BU1-5 1.2. Important information about self-measurement Important information on the subject of blood-pressure and its measurement 2.1. How does high/low blood-pressure arise? 2.2. Which values are normal? 2.3.
  • Page 5 6.1. How to print the last stored measurement (single data print) 6.2. How to print all measurements stored in memory (data print out with chart) 6.3. Stop printing Error messages/malfunctions Care and maintenance, recalibration Guarantee 10. Reference to standards 11. Technical specifications 12. www.microlife.com...

  • Page 6: Introduction

    Introduction 1.1. Features of the BP 3BU1-5 The blood-pressure monitor BP 3BU1-5 (with integrated time/date display) is a fully automatic, digital blood-pressure measuring device for use on the wrist, which enables very fast and reliable measure- ment of the systolic and diastolic blood-pressure as well as the pulse frequency by way of the oscillometric method of measuring.The de-...

  • Page 7: Important Information On The Subject Of Blood-Pressure And Its Measurement

    Important information on the subject of blood-pressure and its measurement 2.1. How does high/low blood-pressure arise? The level of blood-pressure is determined in a part of the brain, the so-called circulatory centre, and adapted to the respective situation by way of feedback via the nervous system. To adjust the blood-pressure, the strength and frequency of the heart (Pulse), as well as the width of circulatory blood vessels is altered.
  • Page 8 Even with normal blood-pressure values, a regular self-check with your blood-pressure monitor is recommended. In this way you can detect possible changes in your values early and react appropriately. If you are undergoing medical treatment to control your blood pres- sure, please keep a record of the level of your blood pressure by car- rying out regular self-measurements at specific times of the day.
  • Page 9 hypertension». Please consult your doctor if you suspect that this might be the case. • Correctly measured diastolic blood-pressure values above 120mmHg require immediate medical treatment. 2.3. What can be done, if regular increased/low values are obtained? Please consult your doctor. Increased blood-pressure values (various forms of hypertension) are associated long- and medium term with considerable risks to health.

  • Page 10: Mam Technology (Microlife Average Mode)

    He will advise you regarding the type and extent of types of sport that are possible for you. 2.4. MAM technology (Microlife Average Mode) • „MAM technology“ is a new type of concept for optimum relia-...
  • Page 11 • An advanced measurement accuracy is achieved by the auto- matic analysis of three successive measurements. • The new system provides reliable values for the doctor and can be used as the basis for reliable diagnostics and medication therapy for high blood pressure. A) Why MAM? •...

  • Page 12: The Various Components Of The Blood-Pressure Monitor

    The various components of the blood-pressure monitor The illustration shows the blood-pressure monitor BP 3BU1-5, con- sisting of: Wrist cuff Type WC1 13.5–19.5 cm, for wrist circumference of 13.5 to 19.5 cm Putting the blood-pressure monitor into operation 4.1. Inserting the batteries After you have unpacked your device, first insert the batteries.

  • Page 13: Reading The Set Date

    Insert the batteries (2 x size AAA 1.5V), thereby observing the indicated polarity. If the battery warning appears in the display, the batteries are empty and must be replaced by new ones. Attention! • After the battery warning appears, the device is blocked until the batteries have been replaced.
  • Page 14 You must then re-enter the date and current time. For this, please proceed as follows (Example: Entering 2001-06-20 Time 09:30 o’- clock): Press the TIME button for at least 3 seconds. The display now indi- cates the set year, dur- ing which the last two characters blink.
  • Page 15 The corresponding month can now be en- tered by pressing the MEMORY button. Example: 6 x presses) Press the TIME button again. The last two characters (day) are now blinking The corresponding day can now be entered by pressing the MEMORY button.
  • Page 16 The corresponding hour can now be entered by pressing the MEMORY button. (Example: 9 x presses) Press the TIME button again. The last two characters (Minutes) now blink. 10) The exact time can now be entered by pressing the MEMORY button. (Example: 30 x presses) 11) Now after all settings have been made, press...
  • Page 17 User selection: This advanced blood pressure monitor allows you to track blood pressure readings for 2 individuals independently. Before measurement make sure you set the unit for the intended user. The unit can track results for 2 individuals. (User 1, User 2) The unit is set to User 1.

  • Page 18: Carrying Out A Measurement

    Carrying out a measurement 5.1. Before the measurement: • Avoid eating, smoking as well as all forms of exertion directly before the measurement. All these factors influence the mea- surement result. Try and find time to relax by sitting in an arm- chair in a quite atmosphere for about ten minutes before the measurement.

  • Page 19: Fitting The Cuff

    peated after a 5 minute pause or after the arm has been held up in order to allow the accumulated blood to flow away (after at least 3 minutes). 5.3. Fitting the cuff Remove all eventual objects and jewellery (e.g. wristwatch) from the wrist in question.

  • Page 20: Measuring Procedure

    5.4. Measuring procedure After the cuff has been appropriately positioned, the measurement can begin: Press the 0/I-button, the pump begins to inflate the cuff. In the display, the in- creasing cuff-pressure is continually displayed. After reaching the inflation pressure, the pump stops and the pressure slowly falls away.

  • Page 21: Discontinuing A Measurement

    The measurement results are displayed, until you switch the device off. If no button is pressed for 5 minutes, the device switches auto- matically off, to save the batteries. When the unit is set to Average Mode setting generally 3 separate measure- ments will take place in succession and calculates your detected blood pressure value.

  • Page 22: Memory - Storage And Recall Of The Measurements

    5.6. Memory – storage and recall of the measurements The blood-pressure monitor automatically stores each of the last 30 measurement val- ues. By pressing the MEMORY button, the last measurement (MR1) as well as the fur- ther last 29 measurements (MR2, MR3, ..., MR30) can be displayed one after the other.

  • Page 23: Printer Functions

    Average Mode) Printer Funtions This unit can be used in connection with the Microlife diagnostic printer. The unit can print out measurements stored in the memory by pressing the PRINTER button. There are 2 kinds of formats available.

  • Page 24: How To Print All Measurements Stored In Memory (Data Print Out With Chart)

    Connect the printer with the monitor and switch the printer on (for details please refer to the manual of the printer). Click the PRINTER button of the monitor once. The display will show "Pr1” and the printer will print the last stored measurement for User 1 or 2 based on your selection.

  • Page 25: Stop Printing

    6.3. Stop printing If you would like to stop printing, click the PRINTER button during the printing process. NOTE: Further details regarding the printer can be found in the printer instruction manual. Error messages/malfunctions If an error occurs during a measurement, the mea- surement is discontinued and a corresponding error code is displayed (Example: Error No.
  • Page 26 Other possible malfunctions and their elimination If problems occur when using the device, the following points should be checked and if necessary, the corresponding measures are to be taken: Malfunction Remedy The display remains empty 1.Check batteries for correct polarity when the instrument and if necessary insert correctly.
  • Page 27 Further Information The level of blood-pressure is subject to fluctuations even with healthy people. Important thereby is, that comparable measure- ments always require the same conditions (Quiet conditions)! If, in spite of observing all these factors, the fluctuations are larger than 15mmHg, and/or you hear irregular pulse tones on several occa- sions, please consult your doctor.

  • Page 28: Care And Maintenance, Recalibration

    Care and maintenance, recalivration a) Do not expose the device to either extreme temperatures, humidity, dust or direct sunlight. b) The cuff contains a sensitive air-tight bubble. Handle this carefully and avoid all types of straining through twisting or buckling. c) Clean the device with a soft, dry cloth.

  • Page 29: Guarantee

    Your specialist dealer would be pleased to provide more extensive information about this. Guarantee The blood-pressure monitor BP 3BU1-5 is guaranteed for 2 years from date of purchase. This guarantee includes the instrument and the cuff. The guarantee does not apply to damage caused by im- proper handling, accidents, not following the operating instructions or alterations made to the instrument by third parties.

  • Page 30: Reference To Standards

    10. Reference to standards Device standard: Device corresponds to the requirements of the European standard for non-invasive blood- pressure monitor EN1060-1 / 12:95 EN1060-3 / 09:97 DIN 58130, NIBP – clinical investigation ANSI / AAMI SP10, NIBP – requirements Electromagn. compatibility: Device fulfils the stipulations of the European standard EN 60601-1-2...

  • Page 31: Technical Specifications

    Pulse ± 5 % of the reading Power source: 2 dry cells (Batteries) UM-4, size AAA 1.5V Accessories: storage case Technical alterations reserved! 12. www.microlife.com Detailed user information about our thermometers and blood pressure monitors as well as services can be found at www.microlife.com...
