Vent-a-Hood Ventilation Hood Models Equipped with K250 Blower Owner And Maintenance Manual

Ventilation hood models equipped with k250 blower
Hide thumbs Also See for Ventilation Hood Models Equipped with K250 Blower:

Advertisement

Table of Contents

See also: Instruction and Installation Manual
Owner and Maintenance Guide
Models Equipped with K250 Blower
Thank You For Choosing Vent-A-Hood
We know you will be pleased with your purchase decision.
Since 1933, our company has earned an outstanding reputation
because of our commitment to performance, quality, and
reliability.

The Importance of Cooking Ventilation

The main purpose of cooking ventilation is to capture the
by-products of cooking. These by-products are heat, steam,
smoke, odor, hazardous gases, and grease. Without proper
cooking ventilation, these by-products can cause a great deal
of harm to the home. Vent-A-Hood
all cooking by-products to the outside with the exception of
GREASE, which is collected by the blower system.
L022 0513A
range hoods exhaust
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ventilation Hood Models Equipped with K250 Blower and is the answer not in the manual?

Questions and answers

Lucia
February 16, 2025

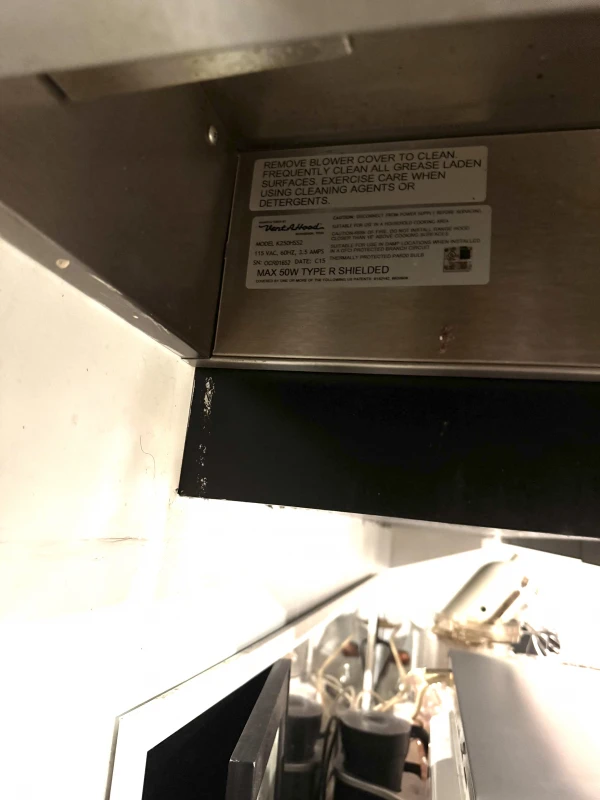

Hi. I need to replace the filter in my K250HSS2. I need some helps with this.

User image 67b15896596d0
0
1 comments:
Mr. Anderson
February 16, 2025

The Vent-A-Hood K250HSS2 ventilation hood uses a Magic Lung® blower, which does not have conventional baffle or mesh filters. Instead, it uses centrifugal filtration to collect grease. Since there is no removable filter, regular maintenance involves cleaning the blower system rather than replacing a filter. To clean the blower, turn off the power at the service panel, remove the blower housing, and wipe away grease buildup.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Vent-a-Hood Ventilation Hood Models Equipped with K250 Blower

Summary of Contents for Vent-a-Hood Ventilation Hood Models Equipped with K250 Blower

  • Page 1 Owner and Maintenance Guide Models Equipped with K250 Blower Thank You For Choosing Vent-A-Hood ® We know you will be pleased with your purchase decision. Since 1933, our company has earned an outstanding reputation because of our commitment to performance, quality, and reliability.
  • Page 2 Safety READ AND SAVE THESE INSTRUCTIONS WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: A. Use this unit only in the manner intended by the manufacturer. If you have questions, call the manufacturer. B.
  • Page 3 Safety (Continued) WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. B.
  • Page 4 Safety (Continued) CAUTION TO REDUCE THE RISK OF FIRE, AND TO PROPERLY EXHAUST AIR, BE SURE TO DUCT EXHAUST AIR OUTSIDE. DO NOT VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS, OR INTO ATTICS, CRAWL SPACES, OR GARAGES. WARNING TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

  • Page 5: Operating Instructions

    Operating Instructions A. Models with Halogen Lights When using the hood, the user should generally start with the hood on the low setting, and switch to the high setting as required. Red Switch - This switch operates the two-speed motor. This two- speed motor allows the user to switch the hood to “LOW”...

  • Page 6: Hood Cleaning

    (liquid dish detergent is acceptable). Do not use acids, abrasives, strong detergents, solvents, or scouring pads. Stainless steel should be treated with a quality stainless steel cleaner such as Stainless Steel Magic (Vent-A-Hood part number ® ®...
  • Page 7 Hood Cleaning (Continued) The grease pan (B) may now be lowered from the hood. Clean the grease pan in a sink of warm, soapy water (liquid dish detergent) and let soak for a few minutes. Wash with a sponge or dishcloth, rinse and let drain.
  • Page 8 Remove the grease pan as described in Hood Cleaning, Section B. If the blower wheel needs to be removed, a 1/8” T-handle hex wrench is necessary. A T-handle hex wrench (A) may be obtained from Vent-A-Hood to accomplish this (Vent-A-Hood part number ® ®...

  • Page 9: Light Bulb Replacement

    Maintenance/Troubleshooting A. Light Bulb Replacement WARNING: To reduce the risk of personal injury, turn off power and allow lights to cool before proceeding. To remove the bulb, turn it counterclockwise. If the light is difficult to remove, it may be necessary to use the light bulb suction cup that has been provided with this manual. Replace the bulb with a GU10 120 volt, 50 watt halogen bulb (Vent- A-Hood part number P1110).
  • Page 10 Maintenance/Troubleshooting (Continued) Does the blower capacity of the hood match the cooking equipment it is over? K250 Single Blower (250 CFM) - For standard electric or small gas cooking equipment. Is the hood ducted properly? The duct should be smooth walled. Corrugated or “flex” type duct must not be used as it restricts airflow. The duct work should be the same square inch area (or larger) as the hood discharge for the entire length of the duct run.
  • Page 11 Maintenance/Troubleshooting (Continued) Does the damper open and close freely? With the grease pan removed (see Hood Cleaning, Section B), locate the damper (flap) and ensure that it opens and closes freely. If it does not, identify and remove any obstructions that are preventing the damper from opening.
  • Page 12 ® Service To make a warranty claim, contact the dealer where the hood was purchased. They will contact the appropriate service agents. It is not necessary to register the product directly with Vent-A-Hood ® Vent-A-Hood Co. P.O. Box 830426 Richardson, TX 75083-0426 (972) 235-5201 www.ventahood.com...
