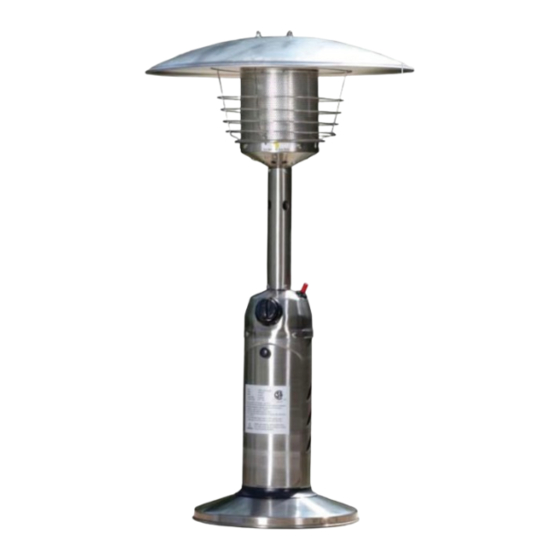

Fire Sense 60262 User Manual

Outdoor tabletop heater
Hide thumbs Also See for 60262:

Advertisement

User Manual of Product 1:
Fire Sense 61322 Portable Patio Heater Outdoor Tabletop
Lightweight Propane 10,000 BTU Auto-Shutoff Valve ODS
Compliant - Hammer Tone Bronze

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60262 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fire Sense 60262

  • Page 1 User Manual of Product 1: Fire Sense 61322 Portable Patio Heater Outdoor Tabletop Lightweight Propane 10,000 BTU Auto-Shutoff Valve ODS Compliant - Hammer Tone Bronze...
  • Page 2: For Outdoor Use Only

    Comfort, Quality & Style Since 1998 Outdoor Heater Item#: 60262, 61322 FOR YOUR SAFETY: Do not store or use gasoline or other If you smell gas: 1. Shut off gas to the appliance. vicinity of this or any other appliance.
  • Page 3 Contact us for assistance: (866) 985-7877 | www.balkenehome.com...
  • Page 4: Explosion-Fire Hazard

    EXPLOSION—FIRE HAZARD CARBON MONOXIDE HAZARD SERVICE SAFETY • Keep solid combustibles, such as building • This heater is a combustion appliance. • Keep all connections and fittings clean. Make materials, paper, or cardboard a safe All combustion appliances produce carbon sure propane cylinder valve outlet is clean.
  • Page 5 Wing Nut Reflector 6mm Washer Emitter Screen Guard Door Plate Base Cast Iron Weight M5x25mm Bolt M5x8mm SS Bolt Burner M5x8mm Bolt M5x12mm Bolt Tank Housing Igniter Button Control Knob Handle Regulator 60mm Stud M5 Nut Wing Nut 6mm Washer M5x25 Bolt M5x8 Bolt M5 Nut...
  • Page 6 Before beginning assembly of this appliance, make sure all parts are present. Compare all parts with package contents list and hardware contents as listed on the previous page. If any part is missing or damaged, do not attempt to assemble this product. Contact customer service for replacement parts. 30 minutes •...
  • Page 7 Insert a 60mm Stud into each of the 3 Place the Emitter Screen on the Burner. Use holes at the top of the Emitter Screen. 4 M5x8 SS Bolts to connect the Emitter Screen to the Burner. Tighten the Bolts. Lower the Guard over the Emitter Screen Place a Washer on each of the 3 Studs.
  • Page 8 Lower the Reflector onto the Studs to Secure the Reflector with 3 Wing Nuts. rest on the Washers. Turn the Control Knob on the Burner to OFF. Close the Door Plate and lock it with the Connect the 1.02 lbs. gas tank (not included) handle (rotate the handle 90 degrees).
  • Page 9 Caution: This appliance is for outdoor use only (outside any enclosure). Always make sure there is fresh air ventilation. Use only outdoors in a well ventilated space. Never use in a building, garage or any other enclosed area. Always maintain at least 18” clearance (top) and 24” clearance (sides) from combustible materials.
  • Page 10 The tabletop heater is for outdoor use only. Always ensure that adequate fresh air ventilation is provided. Always maintain proper clearance to combustible materials, i.. e. top 18” and sides 24” minimum. Tabletop heater must be located on a stable and strong surface.
  • Page 11 For a safe and pleasant heating experience, perform this check before each use: FOR YOUR SAFETY Heater will be hot after use. Handle with extreme care. I am familiar with entire owner’s manual and understand all precautions noted. 1. Turn control knob All components are properly assembled, intact and operable.
  • Page 12 Your heater was designed and approved for OUTDOOR USE ONLY. DO NOT use it inside a building, garage or any other enclosed area. Make sure surrounding areas are free of combustible materials, gasoline and other flammable liquids. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and there are no leaks.
  • Page 13 To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis: FOR YOUR SAFETY Do NOT touch or move heater for at least 45 minutes after use. Reflector is hot to the touch. 1.
  • Page 14 Fuel tank may be empty Replace LPG canister Orifice blocked Clean orifice Purge air from lines. Open gas lines and depress control Air in supply system knob for 2-3 minutes. Loose connection Check all fittings Debris around pilot Clean dirty area Lack of fuel pressure Replace fuel canister Loose connections...
  • Page 15 an additional year Before returning 9 a.m. – 6 p.m., EST, Mon – Fri...

This manual is also suitable for:

61322
