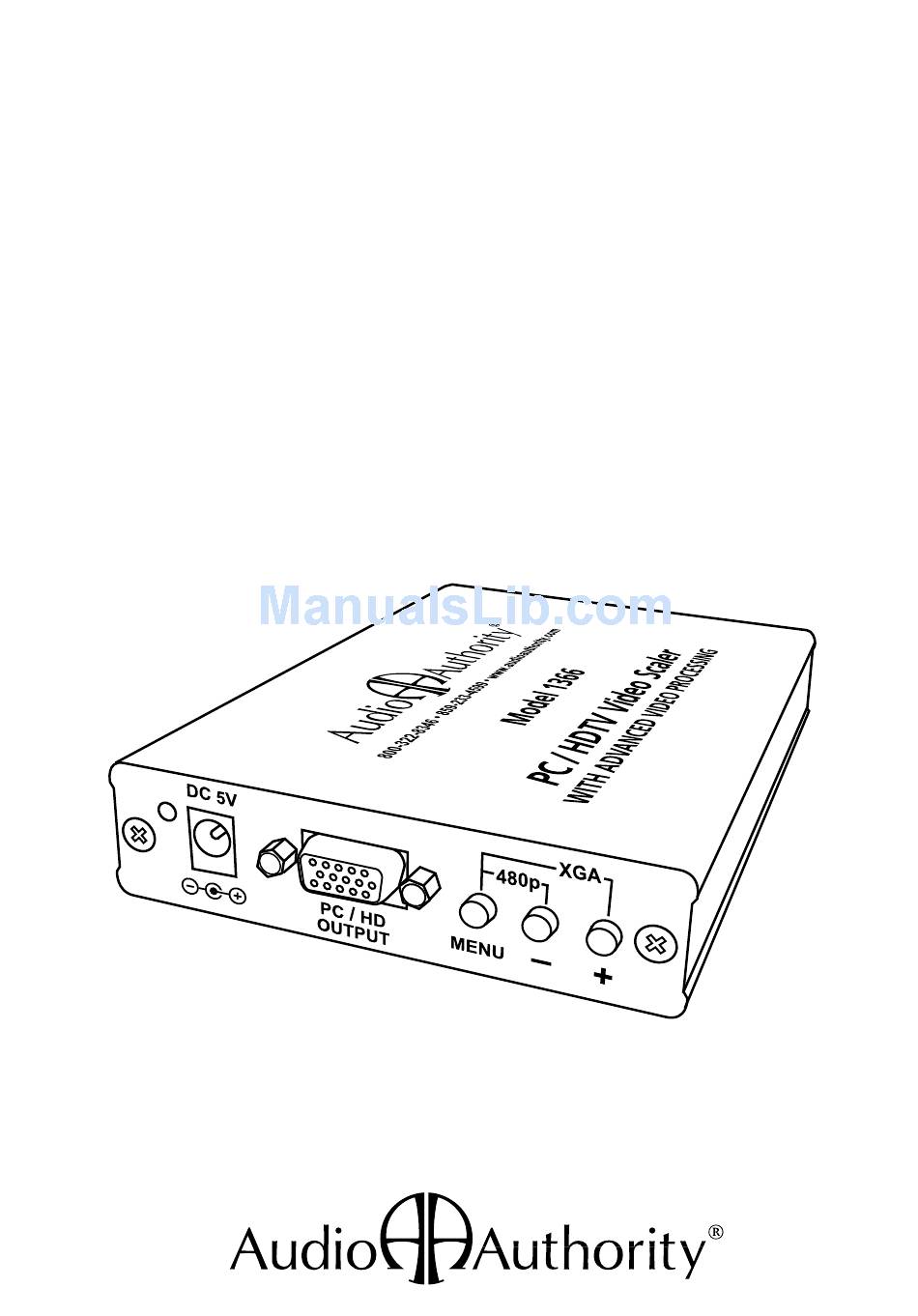

Page 1: User Manual

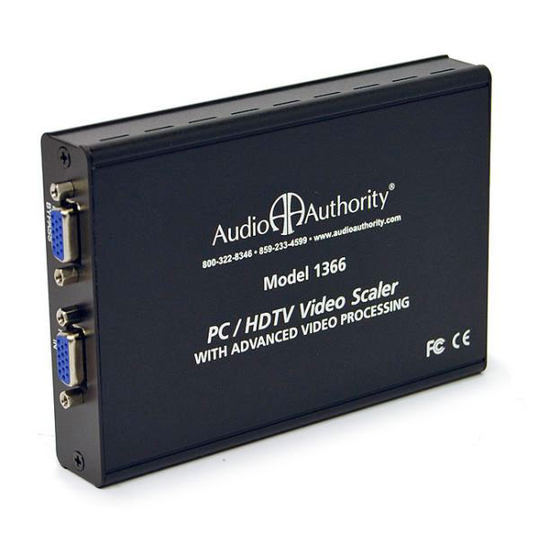

User Manual PC / HD Scaler with advanced video processing • VGA to Component Video • Component Video to VGA • VGA to VGA • Component to Component Model 1366... - Page 2 Audio Authority reserves the right to revise any of its hardware and software following its policy to modify and/or improve its products where necessary or desirable.
-
Page 3: Table Of Contents
Installation ......5 Operating the 1366....7 Troubleshooting . -
Page 4: Introduction
• Passthrough output preserves the original source video format • Locking power connector ensures system stability 2.0 CHECKING PACKAGE CONTENTS Before connecting the 1366, please make certain the following items are in the shipping carton: Note: Please retain the original packing material •... -
Page 5: Installation
This allows the 1366 to do most of the scaling, which usually results in a superior picture. • Distance between the 1366 and the display device. Long distances are possible, but use high quality (coax-type) cables to avoid signal losses from impedance and interference. -
Page 6: Connecting The Hardware
• Optional: connect the bypass output of the 1366 to a computer monitor capable of accepting the computer’s output video format. • Plug in the provided AC adapter: first to the 1366 and then to an active AC power outlet. -
Page 7: Operating The 1366
4.0 OPERATING THE 1366 The 1366 is operated via an On Screen Display (OSD) menu. If you do not see a picture on the video display after power-up, hold down the MENU and (–) buttons to reset the 1366 to 480p. (For computer monitors, hold down MENU and (+) to reset to XGA resolution.) -
Page 8: Troubleshooting
Reset Output Resolution Hold down the MENU and (–) buttons to reset the 1366 to 480p (Y Pb Pr output). For computer monitors, hold down MENU and (+) to reset to XGA resolution (RGBHV output). Once an image is visible on the display, the resolution and other settings may be adjusted. -
Page 9: Specifications
6.0 SPECIFICATIONS I/O Signal Levels RGBHV @ 0.7V p-p, 75 ohms, H&V Sync @ 3-5V p-p, TTL Y @ 1V p-p, 75 ohms. Pb, B-Y, Pr, R-Y @ 0.7V p-p, 75 ohms I/O Connectors HD15 female, (1) input, (1) bypass output, (1) output Controls Side panel buttons Information Menu... -
Page 10: Limited Warranty
7.0 LIMITED WARRANTY If any consumer product from Audio Authority fails due to defects in materials or workmanship within one year from the date of the original sale to the end- user, Audio Authority guarantees that we will replace the defective product at no cost. -
Page 11: Regulatory Compliance
8.0 REGULATORY COMPLIANCE The 1366 has been tested for compliance with CE and FCC rules and regulations. The power supply included has been tested for compliance with UL, CUL, CE, PSE, and GS regulations and guidelines. This product and its power supply are RoHS compliant. - Page 12 2048 Mercer Road, Lexington, Kentucky 40511-1071 Phone: 859-233-4599 • Fax: 859-233-4510 Customer Toll-Free USA & Canada: 800-322-8346 www.audioauthority.com E-086 5/09...
