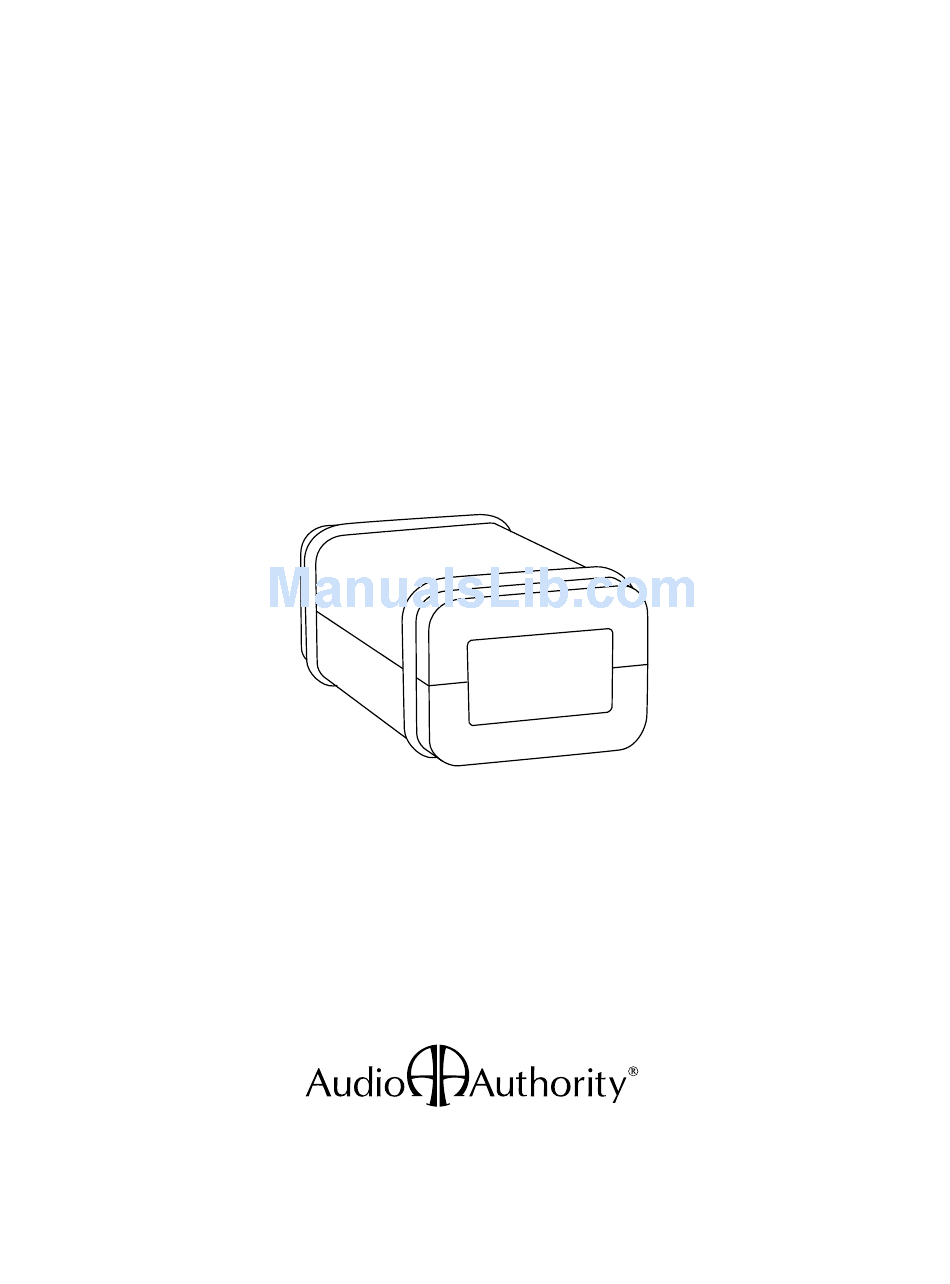

Page 1: User Manual

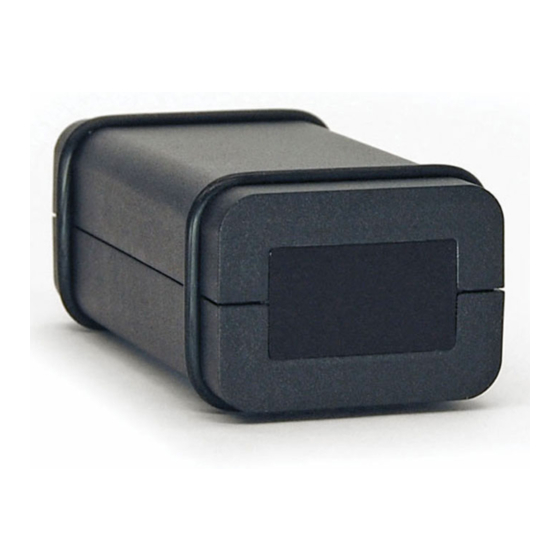

User Manual BlueBeam IR to Bluetooth Signal Converter Model C-1071A... -
Page 2: Troubleshooting
Audio Authority reserves the right to revise any of its hardware and software following its policy to modify and/or improve its products where necessary or desirable. TRADEMARKS “Audio Authority” and the double-A symbol are registered trademarks of Audio Authority Corp. Copyright February, 2009. “BlueBeam” is a trademark of Audio Authority “Bluetooth” is a trademark of Bluetooth SIG, Inc. “PLAYSTATION” is a registered trademark of Sony Computer Entertainment Inc. “Sony” is a registered trademark of Sony Corporation. All other trademarks are the property of their respective owners. -
Page 3: Checking Package Contents
1.0 INTRODUCTION Which Power Source is Best for Thank you for purchasing a Model C-1071A BlueBeam from Audio My Installation? Authority. The BlueBeam is designed to allow a Sony Playstation 3 to be integrated into an IR remote control system. The PS3 accepts The BlueBeam can be powered from the only Bluetooth commands, but the BlueBeam allows any universal IR PS3 USB port, but the PS3 does not supply remote (capable of learning the PS3 commands) to control the PS3. power to its USB port when it is powered off. Therefore you will not be able to turn Audio Authority offers an extensive line of audio and video switchers, on the PS3 from your IR remote control if it does not have an additional power source. converters, distribution amps and extenders available for purchase If you do not wish to use an external AC online at www.audioauthority.com or through authorized dealers. adapter (Model 571-013), use two AA batteries to power the BlueBeam when the PS3 is off. The BlueBeam will automatically 1.1 FEATURES draw power from the USB port when the PS3 is on. This way you can control the • Allows full control of DVD/Blu-ray playback and power on/off PS3 as normal and you do not need an • Innovative auto-pairing feature external AC adapter. Also battery life will be increased since power is supplied by the • Infrared optical receiver and wired IR input with auto-sense IR USB port whenever the PS3 is turned on. repeater mode to make the BlueBeam a full IR control system. See sections on “External IR Receivers”... -
Page 4: Using Bluebeam Software
3.0 CONFIGURING THE IR REMOTE CONTROL Following the instructions for your model of universal remote, add the codes for the C-1071A or BlueBeam to the remote from your remote manufacturer’s database (for Harmony remotes this is GAME CONSOLE > GAME CONSOLE (WITH DVD). If these cannot be found, you can use the PS2 codes (custom macro commands will be deleted) or download the codes in raw hex or ccf format from www.audioauthority.com/page/software. 3.1 PAIRING THE BLUEBEAM WITH THE PS3 • Turn off the BlueBeam by removing the batteries and disconnecting the power supply and/or USB cable. • Turn on the PS3 system and use the PS3 controller to select the following option: SETTINGS > ACCESSORY SETTINGS > REGISTER BD REMOTE. • Set the BlueBeam within 30 feet of the PS3 and power on the BlueBeam (insert batteries, connect power supply, or USB connection to power). By default the BlueBeam automatically pairs with the PS3 at this point. If you have changed Pairing to “manual” in the configuration software, follow the directions below. • When power is applied, the red LED starts flashing to indicate that the BlueBeam is ready to be paired with the PS3. Make sure the BlueBeam is the actively selected device on the Harmony IR remote control. Press and hold the “2” button on the remote (do this within 20 seconds of BlueBeam power on). Hold the 2 button down until the PS3 changes screen to REGISTERING. • The BlueBeam is now paired with the PS3 and ready to convert IR signals to Bluetooth. 4.0 USING AN EXTERNAL INFRARED RECEIVER Connect the emitter output of any standard IR receiver connecting block to the IR input on the rear of the BlueBeam using a mono 3.5mm cable. By default the BlueBeam is configured to auto-sense the type of IR receiver connected. Use the configuration software to manually select the IR receiver type. -
Page 5: Settings Tab
5.1 SETTINGS TAB Enable status LED on IR Selects if the LED should light up when activity receiving valid IR commands from an IR remote Flash status LED Selects if the LED should flash briefly to on low battery level indicate low battery level IR receiver Selects if IR should be received through the • Auto-sense internal IR receiver, OR through an externally • External, Modulated connected IR receiver (both cannot be active • External, Demodulated at once). If an external IR receiver is used • Repeater Mode BlueBeam must be powered by USB or DC adapter, not batteries. Power Tracking The BlueBeam can keep track of the PS3 power state internally, or actively via USB. Bluetooth Pairing Mode Default is auto. Use manual mode when necessary. 5.2 MACROS TAB The macros tab allows the user to define 10 custom macros, which will execute a sequence of commands by activating only one IR command. The power-off macro is a predefined macro, which will execute a power-off sequence which will power off the PS3 by pressing only one button on the IR remote. Select macro Selects which of the 10 macros to edit Command Selects which IR command to execute Duration Specifies the time in milliseconds to activate the current command Pause... -
Page 6: Troubleshooting Guide
6.0 TROUBLESHOOTING GUIDE BlueBeam will not pair with my PS3 The BlueBeam must be within 30 feet of the PS3 for operation. Make sure all power supplies are completely removed (DC adapter, USB and batteries inside the BlueBeam case) before trying to pair the BlueBeam and PS3. Also make sure that the PS3 screen says “Press START+ENTER to begin pairing”. When all power sources are removed, the BlueBeam should automatically pair after connecting either the DC adapter, USB or batteries. If this doesn’t work, try setting pairing mode to manual in configuration software and follow directions below. When all power sources are removed the BlueBeam should start flashing for 20 seconds when connecting either: DC adapter, USB, or batteries. Within 20 seconds (while the LED flashes) press and hold the ‘2’ button on the remote. (Note: your remote should be programmed to “sustain” or “repeat” the 2 command as long as the button is held down.) The LED on the BlueBeam should be on or flashing rapidly until the PS3 says “Registering”. If you let go of the ‘2’ button before the PS3 has registered the BlueBeam, you must start from the beginning by removing power from the BlueBeam. If the above does not work try the following: • Change the remote control batteries. • Power the BlueBeam directly from a DC adapter or USB. • Make sure the BlueBeam device is selected as the active device in the Universal Remote Control. • Hold the remote control in front of the IR window of the BlueBeam with approximate three inches distance while holding the ‘2’ button. • Configure the remote to “repeat” or “sustain” a command when the button is held down. BlueBeam conflicts with my existing Sony DVD player If you have an existing Sony DVD player that conflicts with the default BlueBeam IR device code, the BlueBeam can be configured to respond to another IR device code. In order to do this, connect the BlueBeam to a PC using a USB cable with a mini-USB connector. Open the BlueBeam software and select the “IR device code” tab, change the device code from “DVD1a” to “DVD2a” (or other) in the selection box and press “Save”. In the Harmony Remote software, add a new device with the model name “BLUEBEAM DVD2a” to allow control of a BlueBeam with the IR device code DVD2a. -
Page 7: Specifications
6.0 SPECIFICATIONS Dimensions Unit: 85x45x34mm (3.3x1.8x1.3 inch), Packaging: 112x69x37mm (4.4x2.7x1.5 inch) Weight Unit: 53g (1.87oz), Gross: 121g (4.28oz) Temperature Range 0° - 45° Celsius Relative Humidity 15% - 95% Non condensing Placement Do not place in direct sunlight Optional DC Power Supply 9-12Vdc, min. 100mA (Audio Authority Part# 571-013) Batteries 2 x AA alkaline (LR6) standard batteries (included) Expected Battery Life 6-12 months of normal use. (Expected battery lifetime is approximate. Actual battery life depends on battery type, model, usage scenarios etc.) PC System Requirements Windows 2000, Windows XP, Windows Vista (32 and 64bit) or later Min. 2MB free hard disk space Min. 32MB free memory Min. 1 free USB 1.1 or 2.0 port... -
Page 8: Limited Warranty
7.0 LIMITED WARRANTY If any consumer product from Audio Authority fails due to defects in materials or workmanship within one year from the date of the original sale to the end-user, Audio Authority guarantees that we will replace the defective product at no cost. Freight charges for the replacement unit will be paid by Audio Authority (ground service only). A copy of the invoice showing the item number and date of purchase (proof-of-purchase) must be submitted with the defective unit to constitute a valid in-warranty claim. Units that fail after the warranty period has expired may be returned to the factory for repair at a nominal charge, if not damaged beyond the point of repair. All freight charges for out-of-warranty returns for repair are the responsibility of the customer. Units returned for repair must have a Return Authorization Number assigned by the factory. This is a limited warranty and is not applicable for products which, in our opinion, have been damaged, altered, abused, misused, or improperly installed. Audio Authority makes no other warranties either expressed or implied, including limitation warranties as to merchantability or fitness for a particular purpose. Additionally, there are no allowances or credits available for service work or installation performed in the field by the end user. 7.1 WARRANTY SERVICE PROCEDURES If you suspect a product defect, contact Audio Authority’s Technical Service Department at 800-322-8346 or 859-233- 4599 for assistance in verifying the problem. If a defect or potential defect is suspected, a replacement unit will be shipped immediately on a defect-exchange basis and a Return Authorization Number will be issued for the return of the defective product. Replacement units are sent out at the Manufacturer’s Suggested Retail Price which is debited to the Customer’s Credit Card at the time of shipment. Once we receive the defective unit back at the factory, it will be evaluated under the conditions of this warranty and if found to be in-warranty, a full credit will be issued to the Customer’s Credit Card. Return freight charges for the defective unit are the customer’s responsibility. Please contact our Technical Service Department for complete details concerning all in and out of warranty service matters. We appreciate your confidence in our products and services and will always strive to meet or exceed your needs. 8.0 REGULATORY COMPLIANCE The C-1071A BlueBeam has been tested for compliance with CE and FCC rules and regulations. The Power Adapter/ Supply included has been tested for compliance with UL, CUL, CE, PSE, and GS regulations and guidelines. This product and its power supply are RoHS compliant. 9.0 CONTACT INFORMATION If you have questions or require assistance with this product in areas not covered by this manual, please contact Audio Authority using the information below. Audio Authority Technical Service 800-322-8346 M-F 8:30 AM to 5:00 PM, EST International: 859-233-4599 Fax: 859-233-4510 Send email to: support@audioauthority.com...
