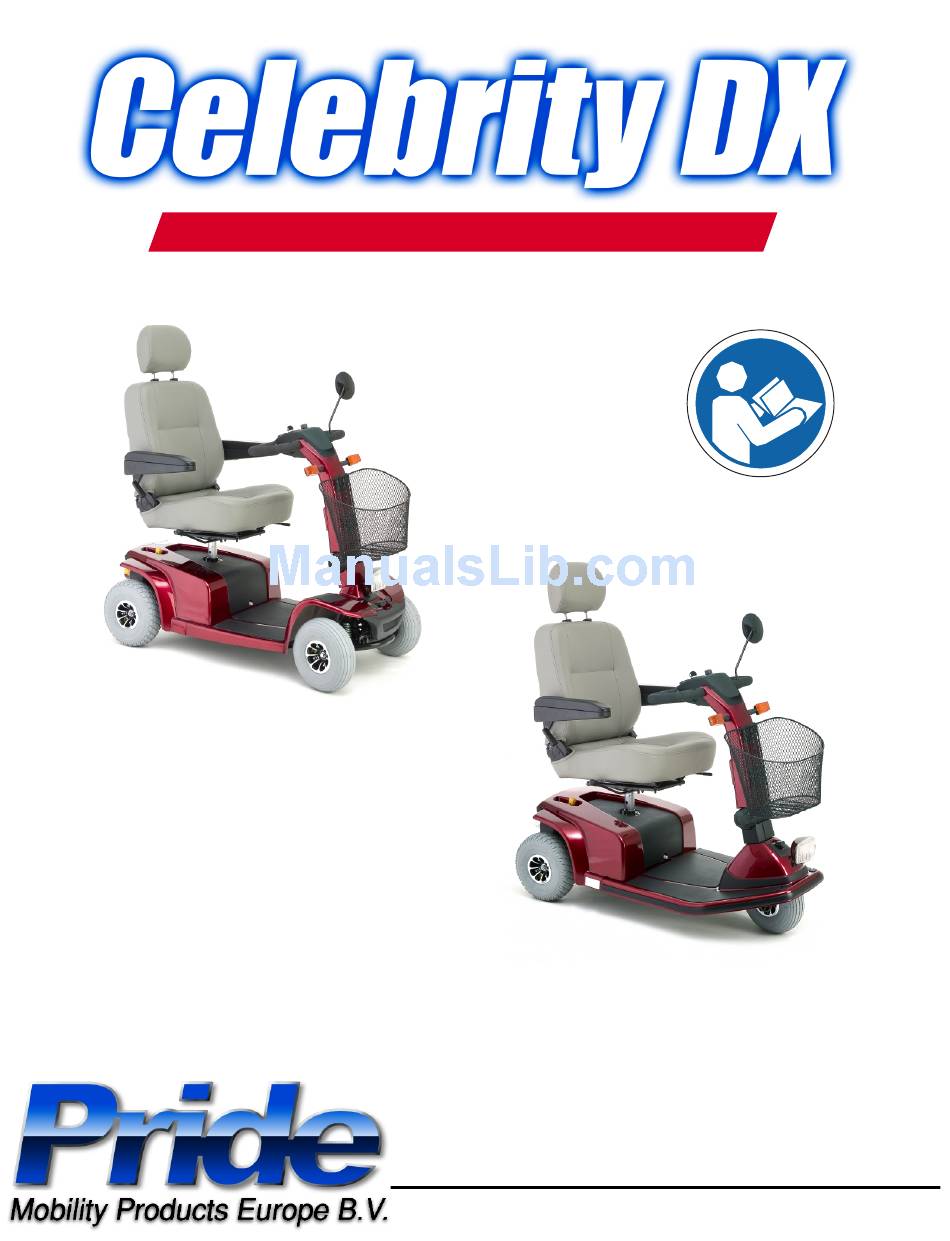

- Page 1 Owner’s Manual The Ultimate In Style & Performance ® Castricummer Werf 26 1901 RW Castricum The Netherlands www.pridemobility.com...
- Page 2 Performing a prohibited action can cause injury to personnel and/or damage to equipment (black symbol with red circle and red slash). My authorized Pride Provider is: Name:_____________________________________________________________________________ Address:___________________________________________________________________________ Phone Number:______________________________________________________________________ Purchase Date:_______________________________________________________________________ Provider Copyright © 2012 Pride Mobility Products Corporation INFMANU3062/Rev B/October 2012...
-
Page 3: Table Of Contents
IV. YOUR SCOOTER ........................18 BATTERIES AND CHARGING .................... 23 VI. OPERATION ..........................28 VII. COMFORT ADJUSTMENTS....................30 VIII. DISASSEMBLY AND ASSEMBLY ..................34 IX. BASIC TROUBLESHOOTING ..................... 36 CARE AND MAINTENANCE ....................38 XI. WARRANTY..........................41 www.pridemobility.com Celebrity DX... -
Page 4: Introduction
I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The product you have purchased combines state- of-the-art components with safety, comfort, and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities. -
Page 5: Safety
Unlocked and in freewheel mode. Place unit on level ground and stand behind or to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode. Locked and in drive mode. Front-to-rear plug orientation. www.pridemobility.com Celebrity DX... - Page 6 Failure to heed could result in personal injury and/or property damage. Prevent personal injury and equipment damage. Do not connect an extension lead to the AC/DC converter or the battery charger. Contact with tools can cause electrical shock. www.pridemobility.com Celebrity DX...
- Page 7 REMOVABLE PARTS WARNING! Do not attempt to lift or move your scooter by any of its removable parts. Personal injury and damage to the scooter may result. www.pridemobility.com Celebrity DX...
-
Page 8: Your Scooter
When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. Avoid sudden stops and starts. www.pridemobility.com Celebrity DX... - Page 9 1 and 1A may put your scooter in an unstable position and cause it to tip, resulting in personal injury. WARNING! Never carry an oxygen tank weighing more than 6 kg. Never fill the front or rear basket with contents exceeding 6 kg. www.pridemobility.com Celebrity DX...
- Page 10 Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the centre/ stop position. Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop or when power is removed from the system for any reason. www.pridemobility.com Celebrity DX...
- Page 11 See figures 3 and 3A. WARNING! Do not attempt to negotiate a kerb that has a height greater than 5 cm. KERB KERB Figure 3. Correct Kerb Approach Figure 3A. Incorrect Kerb Approach www.pridemobility.com Celebrity DX...
- Page 12 Use your hand to turn the knob or push the handle or push-bar. Drive your scooter gently and slowly forward to push the door open. Or drive your scooter gently and slowly rearwards to pull the door open. www.pridemobility.com Celebrity DX...
- Page 13 WARNING! If you anticipate being seated in a stationary position for an extended period of time, turn off the power. This will prevent unexpected motion from inadvertent throttle control lever contact. Failure to do so may result in personal injury. www.pridemobility.com Celebrity DX...
- Page 14 WARNING! Prevent personal injury! Keep your hands away from the tyres when driving. Be aware that loose fitting clothing can become caught in drive tyres. www.pridemobility.com Celebrity DX...
- Page 15 NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn your scooter off as soon as it is safe to do so. Contact your authorized Pride Provider to report the incident. www.pridemobility.com Celebrity DX...
- Page 16 61 cm 68,58 cm 43,18 cm - 53,34 cm 8,26 cm Figure 4. Scooter Dimensions 8.89 cm 10.16 cm (3.5”) (4”) 25.40 cm 25.40 cm (10”) (10”) Figure 4A. Front Tyre Dimensions Figure 4B. Rear Tyre Dimensions www.pridemobility.com Celebrity DX...
- Page 17 (1) Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tyre condition. (2) Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or – ) 3 %. NOTE: All specifications subject to change without notice. www.pridemobility.com Celebrity DX...
- Page 18 Failure to use the lighting system in periods of poor visibility may result in personal injury. Horn Button These buttons activate a warning horn. Your scooter must be turned on for the horn to be operational. Do not hesitate to use the warning horn when doing so may prevent accident or injury. www.pridemobility.com Celebrity DX...
- Page 19 When the throttle control lever is completely released, it automatically returns to the centre “stop” position and engages your scooter’s brakes. Off-board Charger Port The off-board charger power lead plugs into this port when charging the batteries. See figure 6 Figure 6. Off-board Charger Port www.pridemobility.com Celebrity DX...
- Page 20 The motor/transaxle assembly is an electromechanical unit that converts electrical energy from your scooter’s batteries into the controlled mechanical energy that drives the scooter’s wheels. BATTERY BATTERY MANUAL FREEWHEEL LEVER MOTOR/TRANSAXLE ASSEMBLY ANTI-TIP WHEELS Figure 8. Rear Section www.pridemobility.com Celebrity DX...
- Page 21 NOTE: If the scooter is placed in freewheel mode (manual freewheel lever forward) while the key is in the “on” position, the scooter will not run until the manual freewheel lever is pushed rearward and the key is turned to the “off” position, then back to the “on” position. www.pridemobility.com Celebrity DX...
- Page 22 WARNING! DO NOT leave the scooter in freewheel mode when securing it for transport. WARNING! DO NOT use your scooter as a seat in a moving vehicle. SECUREMENT POINTS SECUREMENT POINTS Figure 10. Rear Securement Points Figure 10A. Front Securement Points www.pridemobility.com Celebrity DX...
-
Page 23: Batteries And Charging
WARNING! Prevent injury and/or equipment damage! If the off-board battery charger is equipped with cooling slots, then do not attempt to insert objects through these slots. WARNING! Prevent injury and/or equipment damage! Do not allow unsupervised children to play near the scooter while the batteries are charging. www.pridemobility.com Celebrity DX... - Page 24 8. When the batteries are fully charged, turn the charger off and unplug the charger power lead from the electrical outlet and then from the off-board charger port. NOTE: There is a charger inhibit function on your scooter. The scooter will not run and the battery condition meter will not operate while the batteries are charging. www.pridemobility.com Celebrity DX...
- Page 25 Protect your scooter and batteries from extreme heat or cold. Batteries that are regularly and deeply discharged, infrequently charged, stored in extreme temperatures or stored without a full charge may be permanently damaged, causing unreliable performance and limited service life. www.pridemobility.com Celebrity DX...
- Page 26 4. Disconnect the battery cables from the battery terminals. 5. Remove the old battery. 6. Place a new battery in the battery well. Face the battery terminal towards the seat post 7. Connect the red battery cable to the positive (+) bat- tery terminal. www.pridemobility.com Celebrity DX...
- Page 27 What about public transport? If you intend to use public transport with your scooter, you must contact the transportation Provider in advance to determine their specific requirements. www.pridemobility.com Celebrity DX...
-
Page 28: Operation
Such practices could cause loss of control and/or tipping resulting in personal injury and/ or damage to your scooter. Keep both hands on the tiller and your feet on the floorboard at all times while operating your scooter. This driving position gives you the most control over your vehicle. www.pridemobility.com Celebrity DX... - Page 29 If the power down timer feature takes effect, perform the following steps to resume normal operation. 1. Remove the key from the key switch. 2. Reinsert the key and power up your scooter. www.pridemobility.com Celebrity DX...
-
Page 30: Comfort Adjustments
2. Release the seatback adjustment lever once the seat is in a comfortable riding position. SEATBACK ADJUSTMENT LEVER Figure 16. Armrest Width Adjustment www.pridemobility.com Celebrity DX... - Page 31 LOWER SEAT POST Figure 17. Seat Height Adjustment NOTE: Ensure both washers have been reinstalled before fully tightening the seat height adjustment nut. 7. Tighten the clamp-action bolt 8. Reinstall the rear shroud and the seat. www.pridemobility.com Celebrity DX...
- Page 32 Do not attempt to raise or lower the seat while in motion! Do not drive your scooter unless the power seat is fully retracted (in the lowest position). www.pridemobility.com Celebrity DX...
- Page 33 1. Insert the metal tab on the right side of the belt into the plastic housing on the opposite strap until you hear a click. 2. Pull the strap on the right side of the belt until it is secure, but not so tight as to cause discomfort. www.pridemobility.com Celebrity DX...
- Page 34 WARNING! Failure to unplug both battery harnesses, the front-to-rear harness and rear lighting harness prior to separating the front and rear sections could result in permanent damage to the scooter. LOCKED UNLOCKED POSITION POSITION Figure 21. Tiller Lock Knob (Locked) Figure 21A. Tiller Lock Knob (Unlocked) www.pridemobility.com Celebrity DX...
-
Page 35: Disassembly And Assembly
90° anticlockwise. See figure 21A. WARNING! After assembly, make Figure 23. Frame Release absolutely certain the tiller lock knob is in the unlocked position before riding your scooter. LOWER FRAME TUBE UPPER FRAME TUBE FRAME HOOK Figure 24. Frame Separation www.pridemobility.com Celebrity DX... -
Page 36: Basic Troubleshooting
Push in the main circuit breaker reset button. See IV. “Your Scooter.” Make certain that both battery harnesses and the front-to-rear harness are firmly connected. See VIII. “Dis- assembly and Assembly.” Be sure the power down timer feature hasn’t been activated. See VI. “Operation.” www.pridemobility.com Celebrity DX... - Page 37 Or, see the previous troubleshooting question for load testing the batteries yourself. If you experience any problems with your scooter that you are not able to solve, immediately contact your authorized Pride Provider for information, maintenance, and service. www.pridemobility.com Celebrity DX...
-
Page 38: Care And Maintenance
BATTERY TERMINAL CONNECTIONS Make certain that the terminal connections remain tight and uncorroded. The batteries must sit flat in the battery wells. The battery terminals should face towards the inside of the scooter. www.pridemobility.com Celebrity DX... - Page 39 WARNING! The replacement fuse must exactly match the rating of the fuse being replaced. Failure to use properly rated fuses may cause damage to the electrical system and may result in personal injury. Figure 25A. Blown Fuse (Replace) Figure 25. Working Fuse www.pridemobility.com Celebrity DX...
- Page 40 Your scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorized Pride Provider for information on proper disposal of packaging, metal frame components, plastic components, electronics, and batteries. www.pridemobility.com Celebrity DX...
-
Page 41: Warranty
SERVICE CHECKS AND WARRANTY SERVICE Warranty service can be performed by an authorized Pride Provider. Please contact your authorized Pride Pro- vider for advice on the current cost affecting a service visit. www.pridemobility.com Celebrity DX... - Page 43 Castricummer Werf 26 1901 RW Castricum The Netherlands www.pridemobility.com *INFMANU3062*...
