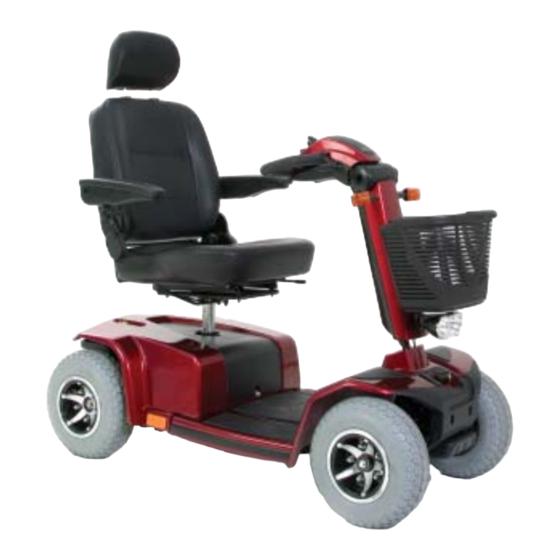

  • Page 1 Owner’s Manual ® The Ultimate In Style & Performance 21 Healey Road Dandenong, 3175 Victoria, Australia ACN # 088 609 661 www.pridemobility.com...
  • Page 2 088 609 661 This product is manufactured by : Pride Mobility Products Corporation 182 Susquehanna Avenue Exeter, PA 18643-2694 Copyright © 2006 Pride Mobility Products Australia Pty. Ltd. INFMANU3341/Rev A/July 2006...

  • Page 3: Table Of Contents

    IV. YOUR SCOOTER ........................18 BATTERIES AND CHARGING .................... 23 VI. OPERATION ..........................28 VII. COMFORT ADJUSTMENTS....................30 VIII. DISASSEMBLY AND ASSEMBLY ..................34 IX. BASIC TROUBLESHOOTING ..................... 37 CARE AND MAINTENANCE ....................39 XI. WARRANTY..........................42 Celebrity XL Deluxe www.pridemobility.com...

  • Page 4: Introduction

    I N T R O D U C T I O N SAFETY Welcome to Pride Mobility Products Australia Pty. Ltd. (Pride). The product you have purchased combines state- of-the-art components with safety, comfort, and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities.
  • Page 5 Unlocked and in freewheel mode. Place unit on level ground and stand behind or to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode. Locked and in drive mode. Front-to-rear plug orientation. Celebrity XL Deluxe www.pridemobility.com...
  • Page 6 Prevent personal injury and equipment damage. Do not connect an extension lead to the AC/DC converter or the battery charger. Contact with tools can cause electrical shock. Prevent personal injury. Do not mistake the tiller adjustment lever for a brake. www.pridemobility.com Celebrity XL Deluxe...
  • Page 7 REMOVABLE PARTS WARNING! Prevent personal injury and/or product damage! Do not attempt to lift or move your scooter by any of its removable parts, including the armrests, seat, or shroud. Celebrity XL Deluxe www.pridemobility.com...

  • Page 8: Your Scooter

    When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. Avoid sudden stops and starts. www.pridemobility.com Celebrity XL Deluxe...
  • Page 9 1 may put your scooter in an unstable position and cause it to tip, resulting in personal injury. WARNING! Never carry an oxygen tank weighing more than 6 kg. Never fill the front or rear basket with contents exceeding 6 kg. Celebrity XL Deluxe www.pridemobility.com...
  • Page 10 Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop or when power is removed from the system for any reason. Handbrake: Gives you additional stopping power when you squeeze it. See IV. “Your Scooter.” www.pridemobility.com Celebrity XL Deluxe...
  • Page 11 See figures 3 and 3A. WARNING! Do not attempt to negotiate a kerb that has a height greater than 5 cm. KERB KERB Figure 3. Correct Kerb Approach Figure 3A. Incorrect Kerb Approach Celebrity XL Deluxe www.pridemobility.com...
  • Page 12 Use your hand to turn the knob or push the handle or push-bar. Drive your scooter gently and slowly forward to push the door open. Or drive your scooter gently and slowly rearwards to pull the door open. www.pridemobility.com Celebrity XL Deluxe...
  • Page 13 WARNING! If you anticipate being seated in a stationary position for an extended period of time, turn off the power. This will prevent unexpected motion from inadvertent throttle control lever contact. Failure to do so may result in personal injury. Celebrity XL Deluxe www.pridemobility.com...
  • Page 14 WARNING! Prevent personal injury! Keep your hands away from the tyres when driving. Be aware that loose fitting clothing can become caught in drive tyres. www.pridemobility.com Celebrity XL Deluxe...
  • Page 15 NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn your scooter off as soon as it is safe to do so. Contact your authorised Pride Provider to report the incident. Celebrity XL Deluxe www.pridemobility.com...
  • Page 16 Turning Radius 168.27 cm 64.13 cm 68.58 cm 43.18 cm - 53.34 cm 10.79 cm Figure 4. Scooter Dimensions 10.16 cm 10.16 cm 33.02 cm 33.02 cm Figure 4A. Front Tyre Dimensions Figure 4B. Rear Tyre Dimensions www.pridemobility.com Celebrity XL Deluxe...
  • Page 17 (1) Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tyre condition. (2) Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or – ) 3 %. NOTE: All specifications subject to change without notice. Celebrity XL Deluxe www.pridemobility.com...
  • Page 18 Use these buttons to turn on the left and right turn indicator (amber) lights. See figure 5. Push the left button to activate the left turn indicator light. Push the right button to activate the right turn indicator light. The indicators are timed to shut off automaticaly. www.pridemobility.com Celebrity XL Deluxe...
  • Page 19 Speed Adjustment Dial This dial allows you to preselect and limit your scooter’s top speed. The image of the tortoise represents the slowest speed setting. The image of the hare represents the fastest speed setting. Celebrity XL Deluxe www.pridemobility.com...
  • Page 20 They are bolted to the frame at the rearmost part of your scooter. See figure 8. PROHIBITED! Do not remove the anti-tip wheels or modify your scooter in any way that is not authorised by Pride. www.pridemobility.com Celebrity XL Deluxe...
  • Page 21 1. Remove the cap from the top of the bracket. 2. Loosen the setscrew with the supplied “L” shaped hex key. 3. Insert the flag pole into the opening. 4. Tighten the setscrew to complete installation. Figure 8A. Safety Flag Bracket Celebrity XL Deluxe www.pridemobility.com...
  • Page 22 WARNING! DO NOT leave the scooter in freewheel mode when securing it for transport. WARNING! DO NOT use your scooter as a seat in a moving vehicle. SECUREMENT POINTS SECUREMENT POINTS Figure 10A. Front Securement Points Figure 10. Rear Securement Points www.pridemobility.com Celebrity XL Deluxe...

  • Page 23: Batteries And Charging

    WARNING! Prevent injury and/or equipment damage! If the off-board battery charger is equipped with cooling slots, then do not attempt to insert objects through these slots. WARNING! Prevent injury and/or equipment damage! Do not allow unsupervised children to play near the scooter while the batteries are charging. Celebrity XL Deluxe www.pridemobility.com...
  • Page 24 NOTE: There is a charger inhibit function on your scooter. The scooter will not run and the battery condition meter will not operate while the batteries are charging. www.pridemobility.com Celebrity XL Deluxe...
  • Page 25 Protect your scooter and batteries from extreme heat or cold. Batteries that are regularly and deeply discharged, infrequently charged, stored in extreme temperatures or stored without a full charge may be permanently damaged, causing unreliable performance and limited service life. Celebrity XL Deluxe www.pridemobility.com...
  • Page 26 9. Ensure the battery terminals are covered with the tiller boots. BATTERY NOTE: See figure 13B for correct hard- ware placement for battery terminal con- Figure 13B. Cable To Terminal Figure 13A. Battery Cable nections. Connection Orientation www.pridemobility.com Celebrity XL Deluxe...
  • Page 27 What about public transport? If you intend to use public transport with your scooter, you must contact the transportation Dealer in advance to determine their specific requirements. Celebrity XL Deluxe www.pridemobility.com...

  • Page 28: Operation

    Such practices could cause loss of control and/or tipping resulting in personal injury and/ or damage to your scooter. Keep both hands on the tiller and your feet on the floorboard at all times while operating your scooter. This driving position gives you the most control over your vehicle. www.pridemobility.com Celebrity XL Deluxe...
  • Page 29 If the power down timer feature takes effect, perform the following steps to resume normal operation. 1. Remove the key from the key switch. 2. Reinsert the key and power up your scooter. Celebrity XL Deluxe www.pridemobility.com...

  • Page 30: Comfort Adjustments

    SEATBACK ADJUSTMENT WARNING! Do not operate your SEATBACK scooter with the seatback in a ADJUSTMENT reclined position. LEVER WARNING! Always keep your back pressed firmly against the seatback while adjusting the angle. Figure 16. Seatback Adjustment www.pridemobility.com Celebrity XL Deluxe...
  • Page 31 CLAMP-ACTION BOLT 7. Install the nut onto the bolt and tighten. LOWER SEAT 8. Tighten the clamp-action bolt. POST 9. Reinstall the rear shroud and the seat. Figure 17. Seat Height Adjustment Celebrity XL Deluxe www.pridemobility.com...
  • Page 32 MANDATORY! Prevent personal injury and product damage! Inspect the positioning belt for loose or damaged parts before each use of the scooter. If you discover a problem, contact your authorised Pride Provider for maintenance and repair. www.pridemobility.com Celebrity XL Deluxe...
  • Page 33 Do not attempt to raise or lower the seat while in motion! Do not drive your scooter unless the power seat is fully retracted (in the lowest position). Celebrity XL Deluxe www.pridemobility.com...
  • Page 34 4. Gently pull the rear shroud up and off of the rear section of the scooter. UNLOCKED POSITION LOCKED POSITION Figure 21. Tiller Lock Knob (Locked) Figure 21A. Tiller Lock Knob (Unlocked) www.pridemobility.com Celebrity XL Deluxe...

  • Page 35: Disassembly And Assembly

    See figure 25. 3. Once the frame hooks are over the lower frame tube, lower the front section completely. This will engage the frame lock. See figure 25. Figure 24. Handbrake Cable Release 4. Raise the tiller. Celebrity XL Deluxe www.pridemobility.com...
  • Page 36 WARNING! After assembly, make FRAME HOOK absolutely certain the tiller lock knob is in the unlocked position before riding your scooter. Figure 25. Frame Release LOWER FRAME TUBE UPPER FRAME TUBE FRAME HOOK Figure 26. Frame Separation www.pridemobility.com Celebrity XL Deluxe...

  • Page 37: Basic Troubleshooting

    Push in the main circuit breaker reset button. See IV. “Your Scooter.” Make certain that both battery harnesses and the front-to-rear harness are firmly connected. See VIII. “Dis- assembly and Assembly.” Be sure the power down timer feature hasn’t been activated. See VI. “Operation.” Celebrity XL Deluxe www.pridemobility.com...
  • Page 38 Or, see the previous troubleshooting question for load testing the batteries yourself. If you experience any problems with your scooter that you are not able to solve, immediately contact your authorised Pride Provider for information, maintenance, and service. www.pridemobility.com Celebrity XL Deluxe...

  • Page 39: Care And Maintenance

    ABS PLASTIC SHROUDS The shrouds of the scooter are formed from durable ABS plastic and are coated with an advanced formula urethane paint. A light application of car wax will help the shrouds retain their high gloss. Celebrity XL Deluxe www.pridemobility.com...
  • Page 40 WARNING! The replacement fuse must exactly match the rating of the new fuse. Failure to use properly rated fuses may cause damage to the electrical system and may result in personal injury. Figure 27A. Blown Fuse (Replace) Figure 27. Working Fuse www.pridemobility.com Celebrity XL Deluxe...
  • Page 41 Your scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorised Pride Provider for information on proper disposal of packaging, metal frame components, plastic components, electronics, and batteries. Celebrity XL Deluxe www.pridemobility.com...

  • Page 42: Warranty

    REPLACEMENT UNITS The availability of replacement units is subject to the discretion of the Dealer, not the manufacturer. For more information regarding replacement units, contact your authorised Pride Provider. www.pridemobility.com Celebrity XL Deluxe...
