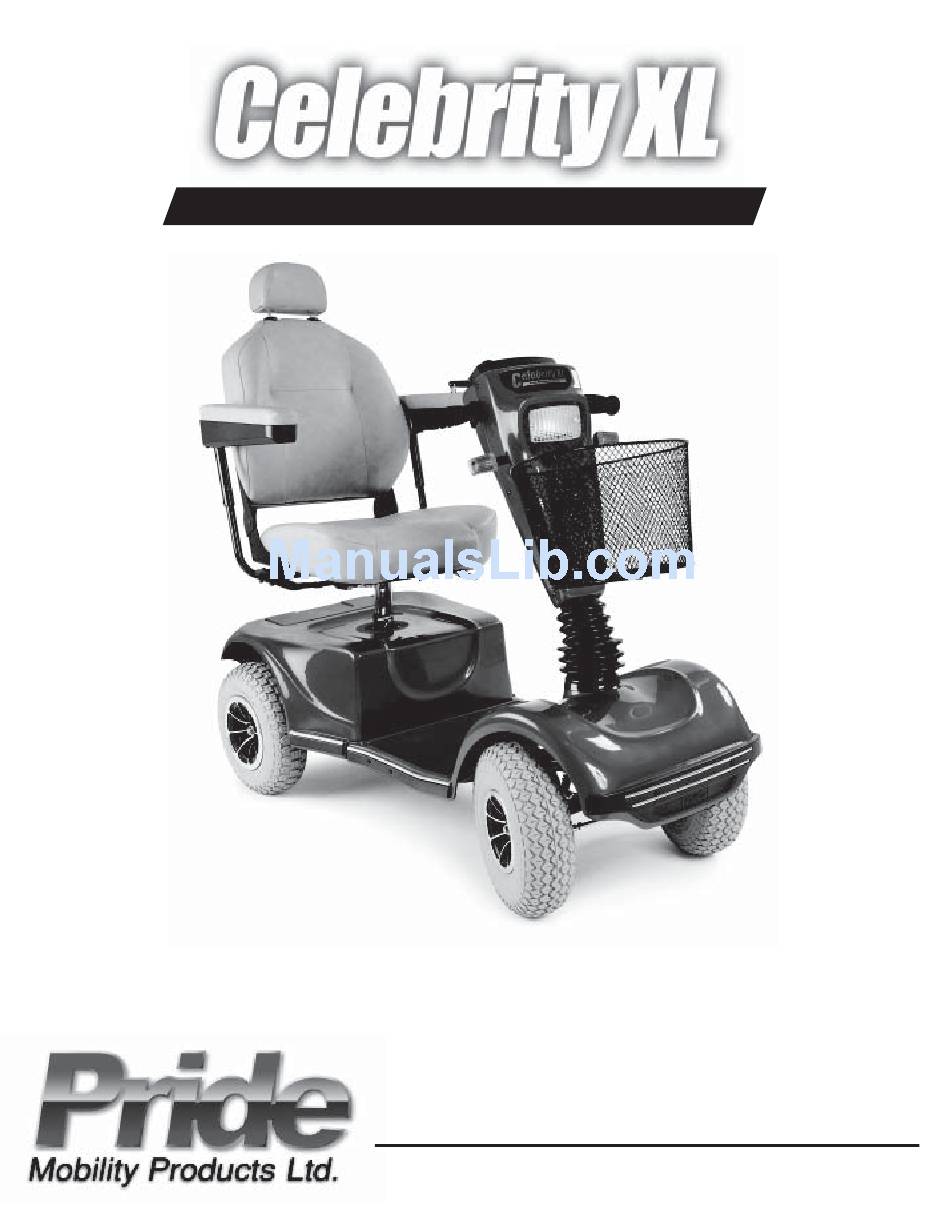

- Page 1 Owner’s Manual The Ultimate In Style & Performance ® Unit 106 Heyford Park Camp Road Upper Heyford Oxfordshire OX25 5HA www.pridemobility.com...
- Page 2 WARNING! Failure to heed the warnings in this owner’s manual may result in personal injury. CAUTION! Failure to heed the cautions in this owner’s manual may result in damage to your Scooter. INFMANU1216/REV D/MAY 2001 Copyright © 2001 Pride Mobility Products, Ltd. Celebrity XL...
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION ......................... 4 SAFETY ............................6 III. SPECIFICATIONS ........................9 IV. DESCRIPTION .......................... 11 BATTERIES AND CHARGING .................... 16 VI. OPERATION ..........................20 VII. COMFORT ADJUSTMENTS....................22 VIII. DISASSEMBLY AND ASSEMBLY ..................25 IX. -
Page 4: Introduction
I N T R O D U C T I O N Welcome to Pride Mobility Products, Ltd. (Pride). Congratulations on the purchase of your new Pride Scooter. Your Scooter design combines the most advanced state-of-the-art components with modern, attractive styling. -
Page 5: I. Introduction
I N T R O D U C T I O N Pride Owners Club As a Pride product owner, you are invited to register your product’s warranty and enroll in the Pride Owners Club. You may do so by filling out and returning your enclosed registration card or by visiting Pride’s web site at www.pridemobility.com. -
Page 6: Safety
I I . S A F E T Y SAFETY PRECAUTIONS n Do not leave the key in the switch when your Celebrity XL is unattended. n Make certain that the seat is locked into place and that the key is removed from the key switch before getting on or off of your Celebrity XL, and make certain that the seat is in a locked position when you are operating your Scooter. -
Page 7: Ii. Safety
I I . S A F E T Y ELEVATORS Modern elevators have a door-edge safety mechanism that, when pushed, reopens the elevator door(s). n If you are in the doorway of an elevator when the door(s) begin to close, push on the rubber door edge or allow the rubber door edge to contact the Scooter to reopen the door. - Page 8 I I . S A F E T Y When you approach an incline, it is best to lean forward. See figures 2 and 3. This shifts the center of gravity of you and your Celebrity XL toward the front of the Scooter for improved stability. WARNING! Do not exceed the incline guidelines or any other specifications presented in this manual.
-
Page 9: Specifications
I I I . S P E C I F I C A T I O N S 63.5 cm - 71 cm (25" - 28") (20 cm - 30.5 cm) (8"-12") 80˚ 4.5 cm (1.75") 43 cm - 53 cm (17"- 21") 15 cm (6") 4 cm (1.5") - Page 10 6SHFLILFDWLRQV Length: 137 cm (54”) W idth: 63.5 cm (25”) T ype: Pneum atic Tyres: Front: 10 cm x 29 cm (4” x 11.5”) Rear: 10 cm x 30 cm (4” x 12”) W eight Capacity: 136 kg/21 stone (300 lbs.) m axim um Battery Type (not included): T wo 12V , 32 am p hours (AH), U-1 type sealed lead-acid (SLA) or two 12V , 40 AH, SLA Horsepower: 1.4 HP (Peak)
- Page 11 I V . D E S C R I P T I O N Your Celebrity XL is an indoor/outdoor motorized electric scooter designed to enhance your personal mobility. It was designed to travel primarily on smooth surfaces such as sidewalks, roads, parking lots, floors, and driveways. For easy transportation or storage, you can disassemble your Celebrity XL into seven components.
-
Page 12: Description
I V . D E S C R I P T I O N BATTERY CONDITION METER SPEED ADJUSTMENT DIAL KEY SWITCH HORN BUTTON LIGHT SWITCH LEFT TURN SIGNAL BUTTON RIGHT TURN SIGNAL BUTTON THROTTLE CONTROL LEVER (REVERSE) THROTTLE CONTROL LEVER (FORWARD) POWER SEAT SWITCH (OPTIONAL) HAZARD LIGHT SWITCH TILLER ADJUSTMENT LEVER... - Page 13 I V . D E S C R I P T I O N Hazard Light Switch This switch enables you to control your Celebrity XL’s front and rear (amber) hazard lights. n Toggle this switch to turn the hazard lights on and off. Light Switch This switch enables you to control your Celebrity XL’s headlight and running (rear red) lights.
- Page 14 I V . D E S C R I P T I O N Batteries The batteries store the electrical energy that powers your Celebrity XL. For directions on charging your batteries, see V. “Batteries and Charging.” NOTE: For your convenience, you may remove the utility tray and its components and charge the batteries independently from the Scooter.
-
Page 15: Optional Accessories
I V . D E S C R I P T I O N n The manual freewheel lever is located on the end of the motor/transaxle assembly at the right rear of the Celebrity XL. n Pull up on the manual freewheel lever to disable the drive system and the brake system; you will then be able to push your Celebrity XL. -
Page 16: Batteries And Charging
B A T T E R I E S A N D C H A R G I N G Your Celebrity XL requires two long-lasting, 12-volt, deep-cycle batteries that are sealed and maintenance free. Recharge the batteries with the convenient onboard 5-amp charging system. Two important points to remember are: n Charge your Celebrity XL’s batteries with the supplied onboard battery charger prior to using it for the first time. - Page 17 B A T T E R I E S A N D C H A R G I N G ELECTRONIC CONTROLLER MODULE 5. When the batteries are fully charged, unplug the charger power cord from the wall outlet, recoil the cord, and place it neatly inside the utility tray.
- Page 18 B A T T E R I E S A N D C H A R G I N G How can I get maximum range or distance per charge? Rarely will you have ideal driving conditions—smooth, flat, hard driving surfaces with no wind or curves. You will often face hills, sidewalk cracks, uneven and loosely packed surfaces, curves, and wind.
- Page 19 B A T T E R I E S A N D C H A R G I N G We work closely with our battery manufacturer to provide batteries that best suit your Celebrity XL’s specific electrical demands. Fresh batteries arrive daily at Pride and are shipped fully charged to our customers. During shipping, the batteries may encounter temperature extremes that may influence their initial performance.
-
Page 20: Operating Your Scooter
V I . O P E R A T I O N Familiarize yourself with the following checklist before you get on your Celebrity XL. Some of the checks must be performed prior to getting on your Scooter. PRE-RIDE ADJUSTMENTS AND CHECKS n Have you fully charged the batteries? See V. -
Page 21: Vi. Operation
V I . O P E R A T I O N GETTING OFF OF YOUR SCOOTER 1. Bring your Scooter to a complete stop. 2. Make certain that the key is removed from the key switch. 3. Push down on the seat lock lever and rotate the seat until you are facing toward the side of your Scooter. 4. -
Page 22: Comfort Adjustments
V I I . C O M F O R T A D J U S T M E N T S TILLER ANGLE ADJUSTMENT TILLER ADJUSTMENT LEVER You can adjust the tiller infinitely between the forward stop and the scooter deck. WARNING! Remove the key before adjusting the tiller. -
Page 23: Seat Rotation
V I I . C O M F O R T A D J U S T M E N T S POWER SEAT ACTUATOR (OPTIONAL) Your Celebrity XL may be equipped with a power seat actuator. The actuator raises and lowers the seat automatically. See figure 12. -
Page 24: Armrest Width Adjustment
V I I . C O M F O R T A D J U S T M E N T S ARMREST WIDTH ADJUSTMENT The armrest width of your Celebrity XL can be adjusted inward or outward. 1. Turn the armrest adjustment knobs at the back of the seat frame counterclockwise to loosen. See figure 13. 2. - Page 25 V I I I . D I S A S S E M B L Y A N D A S S E M B L Y No tools are required to disassemble or assemble your Celebrity XL. Always disassemble or assemble your Celebrity XL on a level, dry surface with sufficient room for you to work and move around your Scooter.
-
Page 26: Viii. Disassembly And Assembly
V I I I . D I S A S S E M B L Y A N D A S S E M B L Y 6. Unplug both battery harnesses and lift both batteries off of the Celebrity XL. See figures 19 and 20. CAUTION! Failing to unplug both battery harnesses and the front-to-rear connector prior to further disassembly could result in... - Page 27 V I I I . D I S A S S E M B L Y A N D A S S E M B L Y ASSEMBLY 1. Place the freewheel lever in drive (down) position. 2. Position the front and rear sections next to each other. 3.
-
Page 28: Troubleshooting
I X . T R O U B L E S H O O T I N G Any electromechanical device occasionally requires some troubleshooting. However, most of the problems that may arise can usually be solved with a bit of thought and common sense. Many of these problems occur because the batteries are not fully charged or because the batteries are worn down and can no longer hold a charge. -
Page 29: Care And Maintenance
C A R E A N D M A I N T E N A N C E Your Celebrity XL requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you may schedule inspection and maintenance at your authorized Pride provider. The following areas require periodic inspection and/or care and maintenance. -
Page 30: Warranty
X I . W A R R A N T Y TWO-YEAR LIMITED WARRANTY Structural frame components, including: platform, fork, seat post, and frame welds. Drive train, including: differential, motor, and brake. ONE-YEAR LIMITED WARRANTY Your Pride Scooter is fully guaranteed for twelve (12) months from the date of purchase against faults arising due to defects in manufacture or materials.
