COLT

Advertisement

Table of Contents
loading

Related Manuals for Pride Mobility Colt

Summary of Contents for Pride Mobility Colt

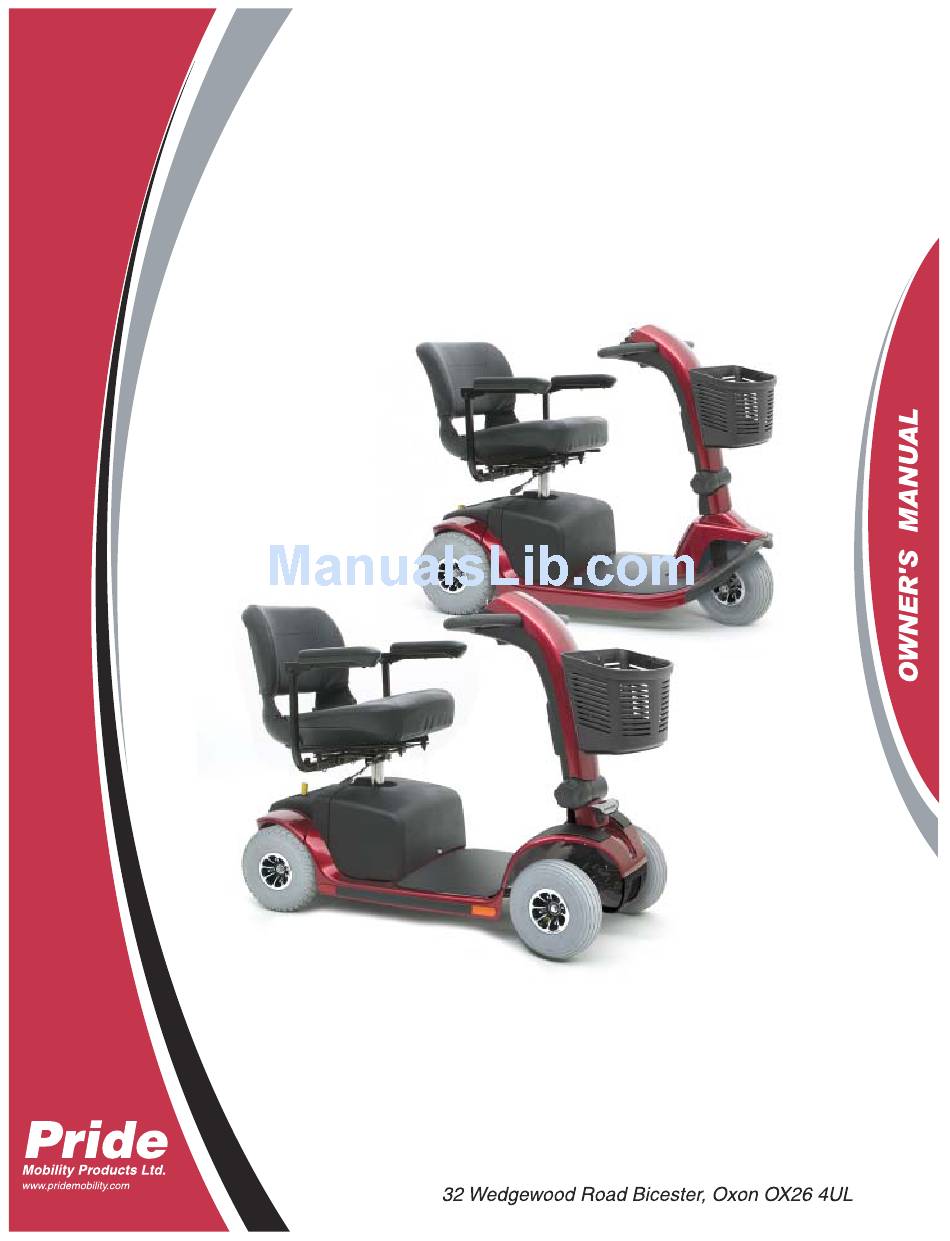

  • Page 1 COLT...
  • Page 2 The latest/current version of this manual is available on our website. 088 609 661 Copyright © 2007 Pride Mobility Products Corp. INFMANU3627/Rev B/October 2007...

  • Page 3: Table Of Contents

    III. YOUR SCOOTER........................19 IV. BATTERIES AND CHARGING .................... 24 OPERATION ..........................30 VI. COMFORT ADJUSTMENTS....................32 VII. DISASSEMBLY AND ASSEMBLY ..................34 VIII. BASIC TROUBLESHOOTING ..................... 36 IX. CARE AND MAINTENANCE ....................38 WARRANTY..........................41 APPENDIX A: SPECIFICATIONS ....................42 Colt www.pridemobility.com...

  • Page 4: Introduction

    I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The product you have purchased combines state-of the-art components with safety, comfort and styling in mind. We are confident the design features will provide you with the conveniences you expect during your daily activities.
  • Page 5 EMI-RFI- This product has been tested and passed at an immunity level of 20 V/m. Do not lift the mobility vehicle while seated in it. Do not lift the mobility vehicle while seated in it. Explosive conditions exist! Read and follow the information in the owner’s manual. Colt www.pridemobility.com...
  • Page 6 Locked and in drive mode. Wear safety goggles. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Do not remove anti-tip wheels. Do not use a cell phone, walkie/talkie, laptop or other radio transmitter while operating. www.pridemobility.com Colt...
  • Page 7 Do not use batteries with different amp-hour (Ah) capacities. Do not mix old and new batteries. Always replace both batteries at the same time. Keep your hands away from the tyres when driving. Be aware that loose fitting clothing can become caught in drive tyres. Colt www.pridemobility.com...
  • Page 8 I I . S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your authorised Pride Dealer for information on proper disposal and recycling of your Pride product and its packaging. Contains Lead. www.pridemobility.com Colt...
  • Page 9 PRE-RIDE SAFETY CHECK Get to know the feel of your scooter and its capabilities. Pride recommends that you perform a safety check before each use to make sure your scooter operates smoothly and safely. Colt www.pridemobility.com...

  • Page 10: Your Scooter

    ! When driving down a ramp, keep the scooter’s speed adjustment set to the slowest speed setting to ensure a safely controlled descent. ! Avoid sudden stops and starts. www.pridemobility.com Colt...
  • Page 11 WARNING! Never carry an oxygen tank weighing more than 15 lbs (6.8 kg). Never fill the front or rear basket with contents exceeding 6.8 kg (15 lbs.). 158.75 kg/25 stone (350 lbs.) 14.1% (8°) Figure 1. Maximum Recommended Incline Angle Colt www.pridemobility.com...
  • Page 12 ! Regenerative: Uses electricity to rapidly slow the vehicle when the throttle control lever returns to the centre/ stop position. ! Disc Park Brake: Activates mechanically after regenerative braking slows the vehicle to near stop, or when power is removed from the system for any reason. www.pridemobility.com Colt...
  • Page 13 WARNING! Be sure your scooter is traveling perpendicular to any kerb you may be required to ascend or descend. See figures 3 and 3A. WARNING! Do not attempt to negotiate a kerb that has a height greater than 5 cm (2 in.). Figure 3. Correct Kerb Approach Figure 3A. Incorrect Kerb Approach Colt www.pridemobility.com...
  • Page 14 ! Use your hand to turn the knob or push the handle or push-bar. ! Drive your scooter gently and slowly forward to push the door open. Or drive your scooter gently and slowly rearwards to pull the door open. www.pridemobility.com Colt...
  • Page 15 If you encounter a damaged or cracked battery, immediately enclose it in a plastic bag and call your authorised Pride Dealer for instructions on disposal. Your authorised Pride Dealer will also have the necessary information on battery recycling, which is our recommended course of action. Colt www.pridemobility.com...
  • Page 16 Bending to the side while seated creates the risk of tipping. It is important to maintain a stable centre of gravity and keep the scooter from tipping. Pride recommends that the scooter user determine his/her personal limitations and practice bending and reaching in the presence of a qualified attendant. www.pridemobility.com Colt...
  • Page 17 You must adhere to the following safety guidelines if you decide to smoke cigarettes while seated in your scooter. Do not leave lit cigarettes unattended. Keep ashtrays a safe distance from the seat cushions. Always make sure cigarettes are completely extinguished before disposal. Colt www.pridemobility.com...
  • Page 18 NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If unintended motion or brake release occurs, turn your scooter off as soon as it is safe to do so. Contact your authorised Pride Dealer to report the incident. www.pridemobility.com Colt...

  • Page 19: Tiller Console

    The status LED alerts you to electrical problems that may occur with the scooter. The LED remains constantly lit while your scooter is on. If your scooter develops an electrical problem, the status LED will flash a code. See VIII. “Basic Troubleshooting” for flash codes. Colt www.pridemobility.com...
  • Page 20 Release the throttle control lever and allow your scooter to come to a complete stop before engaging the other side of the lever. When the throttle control lever is completely released, it automatically returns to the centre “stop” position and engages your scooter’s brakes. www.pridemobility.com Colt...
  • Page 21 See figure 6. See IX. “Care and Maintenance” for fuse replacement. Figure 5. Off-board Charger Port NOTE: Keep all electrical areas clean and free of moisture and foreign material. OFF-BOARD CHARGER (10A) KEY SWITCH (5A) LOWER HEADLIGHT (1A) Figure 6. Tiller Console Fuses Colt www.pridemobility.com...

  • Page 22: Rear Section

    PROHIBITED! Do not remove the anti-tip wheels or modify your scooter in any way that is not authorised by Pride. Motor/Transaxle Assembly The motor/transaxle assembly is an electromechanical unit that converts electrical energy from your scooter’s batteries into the controlled mechanical energy that drives the scooter’s wheels. www.pridemobility.com Colt...
  • Page 23 NOTE: If the scooter is placed in freewheel mode (manual freewheel lever forward) while the key is in the “on” position, the scooter will not run until the manual freewheel lever is pushed rearward and the key is turned to the “off” position, then back to the “on” position. Colt www.pridemobility.com...

  • Page 24: Batteries And Charging

    If the battery charger is exposed to adverse or extreme weather conditions, then it must be allowed to adjust to the difference in environmental conditions before use indoors. Refer to the manual supplied with the battery charger for more information. www.pridemobility.com Colt...
  • Page 25 8. When the batteries are fully charged, turn the charger off and unplug the charger power lead from the electrical outlet and then from the off-board charger port. NOTE: There is a charger inhibit function on your scooter. The scooter will not run and the battery condition meter will not operate while the batteries are charging. Colt www.pridemobility.com...
  • Page 26 ! If you use your scooter once a week or less, charge its batteries at least once a week for 12 to 14 hours at a time. ! Keep your scooter’s batteries fully charged. ! Avoid deeply discharging your scooter’s batteries. www.pridemobility.com Colt...
  • Page 27 WARNING! Contact your authorised Pride Dealer if you have any questions regarding the batteries in your scooter. WARNING! Do not replace the batteries while the scooter is occupied. WARNING! The batteries on your scooter should only be serviced or replaced by an authorised Pride Dealer or a qualified technician. Colt www.pridemobility.com...
  • Page 28 9. Reposition the terminal boots over the battery termi- nals. 10. Reconnect the battery harnesses. 11. Reconnect the battery tie-down strap. 12. Reinstall the battery shroud and seat. Figure 11A. Cable to Terminal Connections LEFT BATTERY RIGHT BATTERY Figure 12. Battery Wiring Diagram www.pridemobility.com Colt...
  • Page 29 What about public transportation? If you intend to use public transportation with your scooter, you must contact the transportation provider in ad- vance to determine their specific requirements. Colt www.pridemobility.com...

  • Page 30: Operation

    ! The electromechanical disc park brake automatically disengages and the scooter accelerates smoothly to the speed you preselected with the speed adjustment dial. ! Pull on the left handgrip to steer your scooter to the left. ! Pull on the right handgrip to steer your scooter to the right. www.pridemobility.com Colt...
  • Page 31 If the power down timer feature takes effect, perform the following steps to resume normal operation. 1. Remove the key from the key switch. 2. Reinsert the key and power up your scooter. Colt www.pridemobility.com...

  • Page 32: Comfort Adjustments

    4. Align the adjustment holes on the seat frame and armrest, then reinsert the detent pin. ARMREST 5. Tighten the armrest adjustment knobs. ADJUSTMENT KNOBS NOTE: Pivot the armrests upward to aid in getting onto and off of your scooter. Figure 15. Armrest Width Adjustment www.pridemobility.com Colt...
  • Page 33 LOWER SEAT HEIGHT SEAT 6. Reinstall the nut onto the seat height adjustment bolt ADJUSTMENT BOLT POST and tighten. 7. Reinstall the rear shroud and the seat. Figure 17. Seat Height Adjustment Colt www.pridemobility.com...

  • Page 34: Disassembly And Assembly

    See figure 19. 5. Remove the batteries from the battery wells. Figure 19. Harness Connections WARNING! Failure to unplug both batter y har nesses prior to separating the front and rear sections could result in permanent damage to the scooter. www.pridemobility.com Colt...
  • Page 35 4. Raise the tiller and fully tighten the tiller adjustment knob. 5. Reinstall the batteries to the battery wells. 6. Connect both battery harnesses. See figure 19. 7. Secure the battery tie-down strap. 8. Reinstall the battery shroud. 9. Reinstall the seat and rotate it into place. Colt www.pridemobility.com...

  • Page 36: Diagnostic Fault Codes

    ! When the manual freewheel lever is pushed forward, the brakes are disengaged and all power to the motor/ transaxle assembly is cut. ! Push rearward on the manual freewheel lever, turn the scooter off and then turn the scooter on to return to normal scooter operation. www.pridemobility.com Colt...

  • Page 37: Basic Troubleshooting

    ! See the previous troubleshooting question for load testing the batteries yourself. If you experience any problems with your scooter that you are not able to solve, immediately contact your autho- rised Pride Dealer for information, maintenance and service. Colt www.pridemobility.com...

  • Page 38: Care And Maintenance

    BATTERY TERMINAL CONNECTIONS ! Make certain that the terminal connections remain tight and uncorroded. ! The batteries must sit flat in the battery wells. ! The battery terminals should face towards the inside of the scooter. www.pridemobility.com Colt...
  • Page 39 3. Insert a new fuse of the same rating. WARNING! The replacement fuse must exactly match the rating of the fuse being replaced. Failure to use properly rated fuses may cause damage to the electrical system. Figure 22. Working Fuse Figure 22A. Blown Fuse (Replace) Colt www.pridemobility.com...
  • Page 40 Your scooter must be disposed of according to applicable local and national statutory regulations. Contact your local waste disposal agency or authorised Pride Dealer for information on proper disposal of packaging, metal frame components, plastic components, electronics and batteries. www.pridemobility.com Colt...

  • Page 41: X . W A R R A N T Y

    Pride Mobility Products Ltd. cannot be deemed responsible. NOTE: Pride Mobility Products Ltd. provides parts only under warranty. Your Pride Dealer is responsible for labour and service. Please contact your Pride Dealer for information about these services and for any applicable charges.

  • Page 42: Appendix A: Specifications

    3-Wheel: 116.84 cm (46 in.) 43.18 cm 4-Wheel: 119.38 cm (47 in.) (17 in.) 45.72 cm (18 in.) 3-Wheel Turning Radius 4-Wheel Turning Radius 109.855 cm (43.25 in.) 137.16 cm (54 in.) 56.5 cm (22.25 in.) Figure 23. Scooter Dimensions www.pridemobility.com Colt...
  • Page 43 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or – ) 3 %. AGM or Gel-Cell type required. See IV. “Batteries and Charging.” NOTE: All specifications subject to change without notice. Colt www.pridemobility.com...
  • Page 44 N O T E S www.pridemobility.com Colt...
  • Page 45 N O T E S Colt www.pridemobility.com...
  • Page 46 N O T E S www.pridemobility.com Colt...
  • Page 47 *INFMANU3627*...
