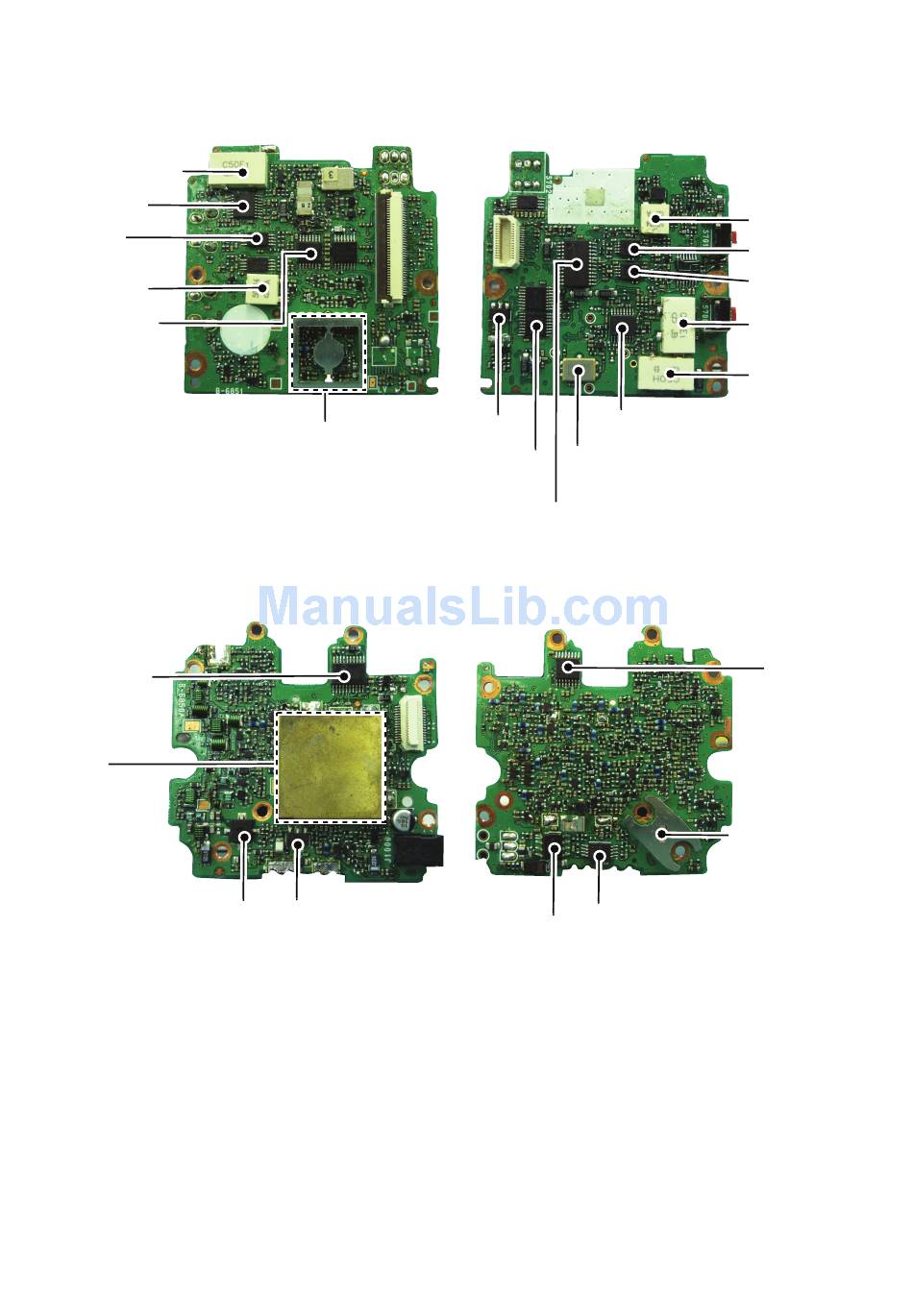

• MAIN UNIT
2ND IF FILTER (A BAND)
(FI100: LTWC450E1)
IF IC (A BAND)
(IC100: TA31136FNG)
TONE FILTER
(IC150: LM2904)
(B BAND)
DISCRIMINATOR
(X200: JTBM450)
TONE SELECTOR
(IC703: CD4066)
• RF UNIT
D/A CONVERTER
(IC950: M62352)
VCO UNIT
(Under the cover)
TX POWER AMP
(Q100: 2SK3476)
(TOP VIEW)
SHIFT REGISTER
RX VCOs (B BAND)
(IC701: CD4094)
(TOP VIEW)
TX DRIVE AMP
(Q101: 2SK3475)
(BOTTOM VIEW)
IF IC (A BAND)
(IC200: TA31136FNG)
(B BAND)
SHIFT REGISTER
1st IF FILTER
(IC702: CD4094)
(FI50: FL-335)
D/A CONVERTER
(IC600: M62364FP)
(BOTTOM VIEW)
APC CONTROLLER
DC SWITCH
(IC150: NJM3404)
(Q1000: HAT1026)
2 - 2
(B-BAND)
DISCRIMINATOR
(X100: JTBM450)
AF FILTER
(IC502: NJM2904)
AF FILTER
(IC501: NJM2904)
(B BAND)
2ND IF FILTER
(FI200: LTWC450E1)
(B BAND)
2ND IF FILTER
(FI201: LTWC450E1)
D/A CONVERTER
(IC951: M62352)
HEAT SINK for
TX POWER AMP
(MP100: 2888 PA HEATSINK)
