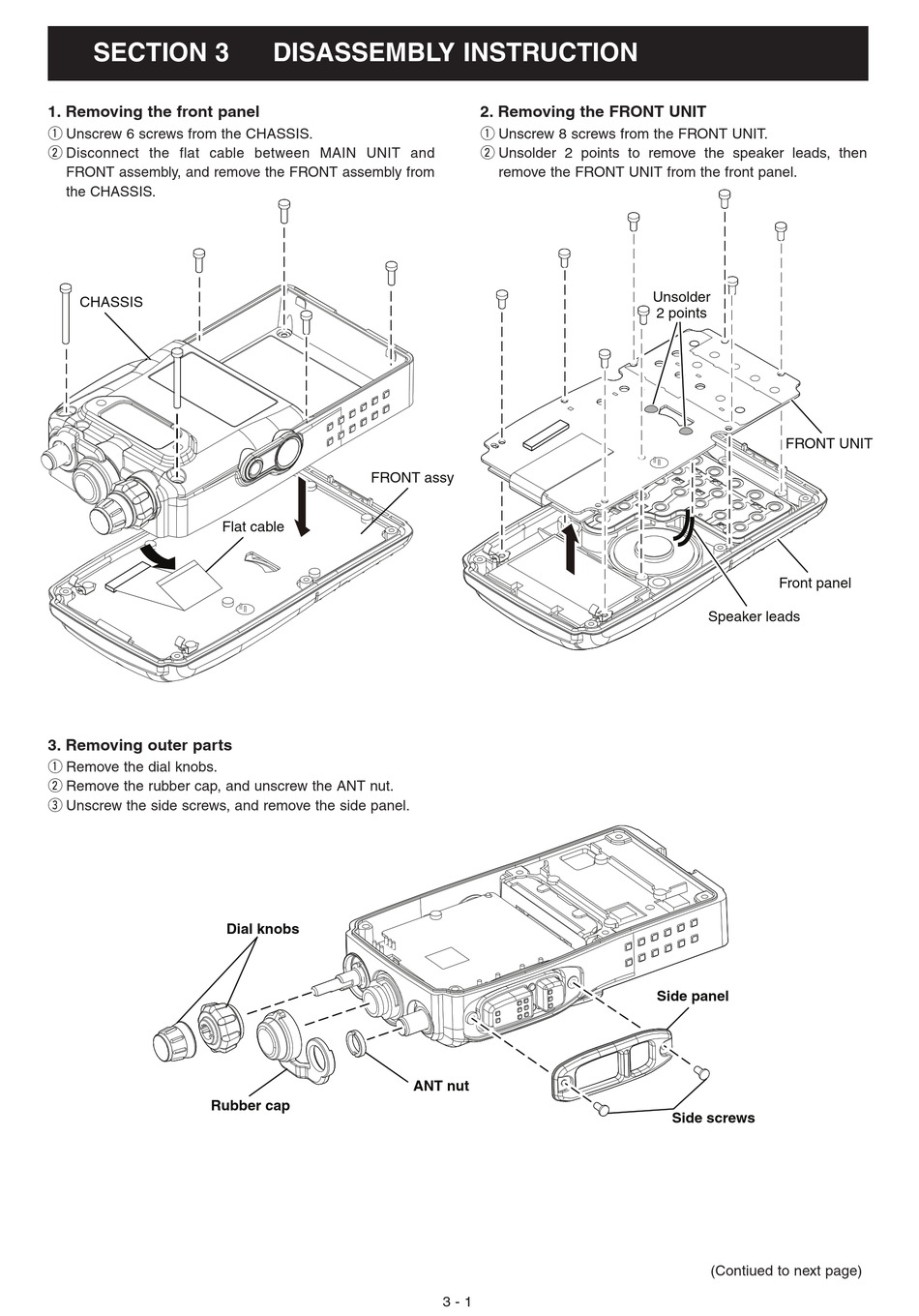

SECTION 3
1. Removing the front panel
q Unscrew 6 screws from the CHASSIS.
w Disconnect the flat cable between MAIN UNIT and
FRONT assembly, and remove the FRONT assembly from
the CHASSIS.
CHASSIS
3. Removing outer parts
q Remove the dial knobs.
w Remove the rubber cap, and unscrew the ANT nut.
e Unscrew the side screws, and remove the side panel.
Rubber cap
DISASSEMBLY INSTRUCTION
FRONT assy
Flat cable
Dial knobs
2. Removing the FRONT UNIT
q Unscrew 8 screws from the FRONT UNIT.
w Unsolder 2 points to remove the speaker leads, then
remove the FRONT UNIT from the front panel.
ANT nut
3 - 1
Unsolder
2 points
FRONT UNIT
Front panel
Speaker leads
Side panel
Side screws
(Contiued to next page)
